Power Seat Connector End Views
Power Seat Connector End Views

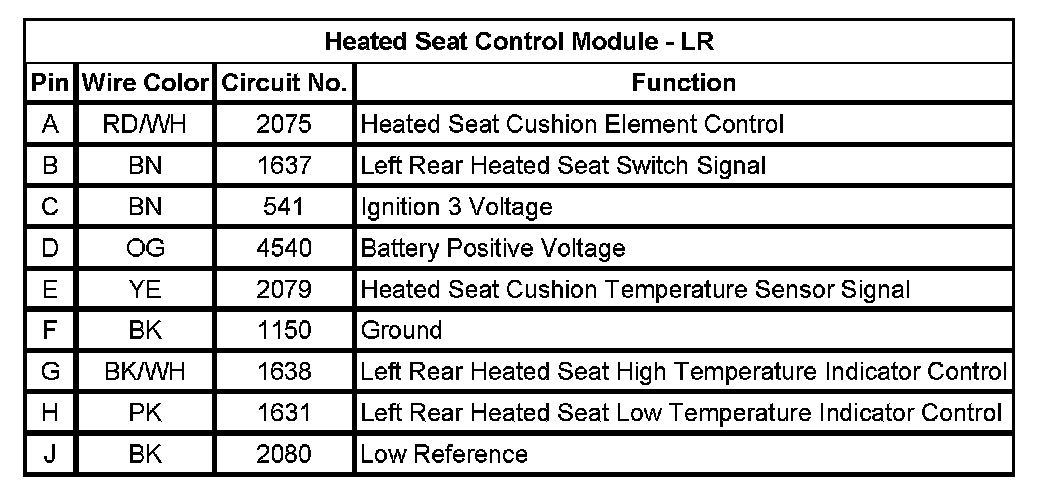

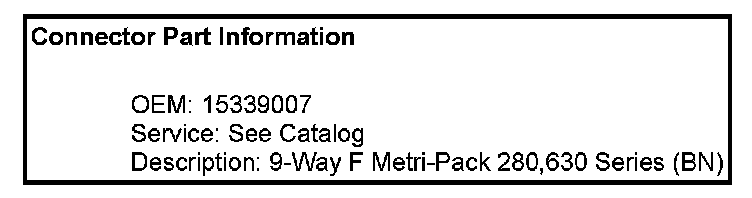

Heated Seat Control Module - LR

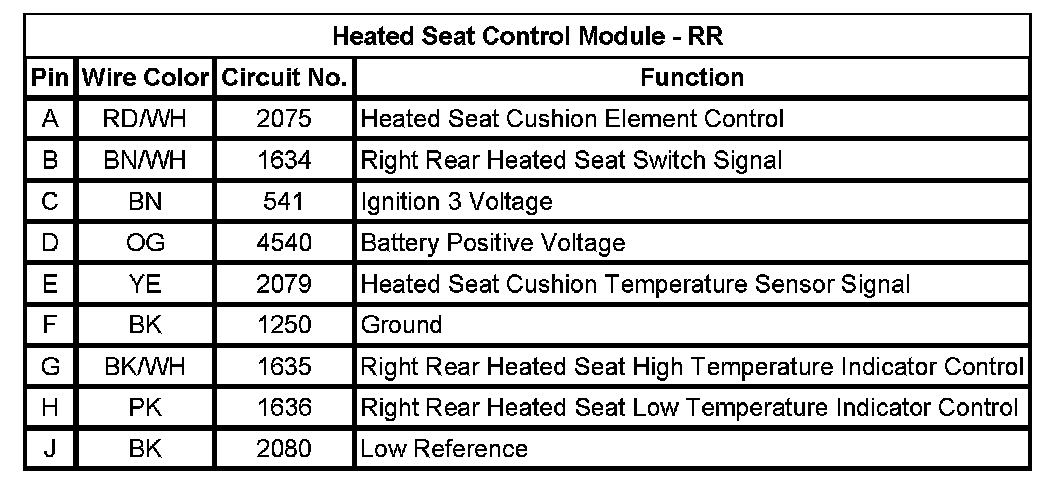

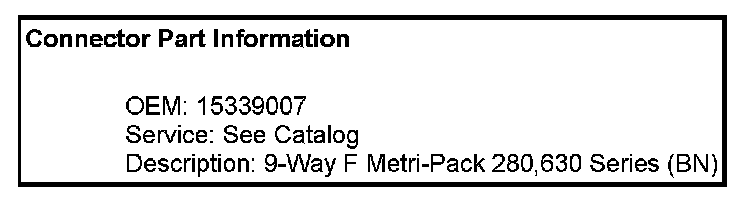

Heated Seat Control Module - RR
