Entertainment/Communication Connector End Views



Entertainment/Communication Connector End Views

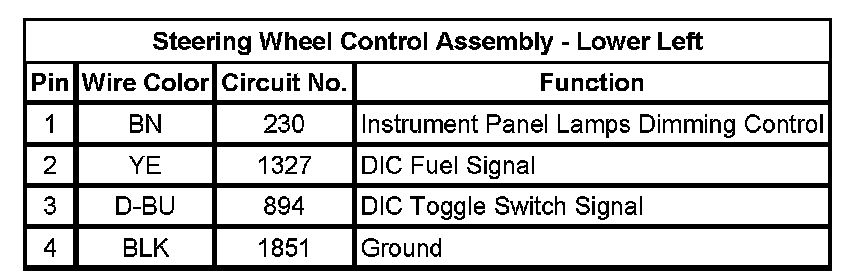

Steering Wheel Control Assembly - Lower Left

Steering Wheel Controls - Right (UK3):

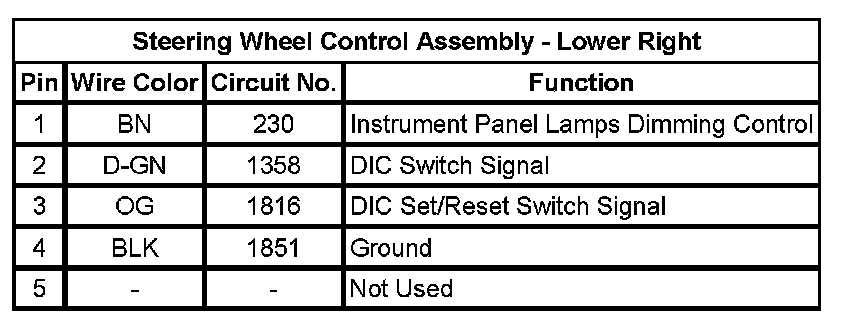

Steering Wheel Control Assembly - Lower Right

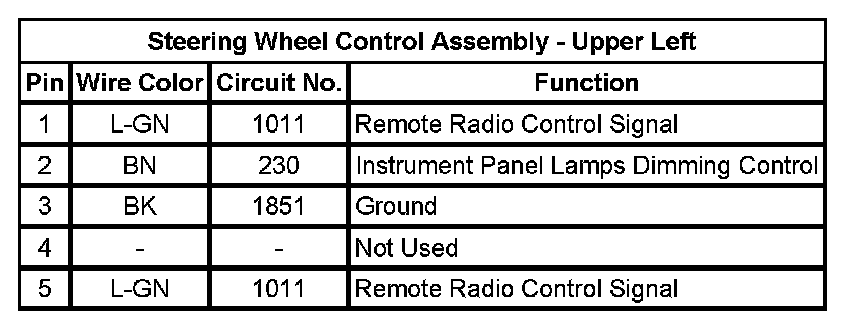

Steering Wheel Control Assembly - Upper Left

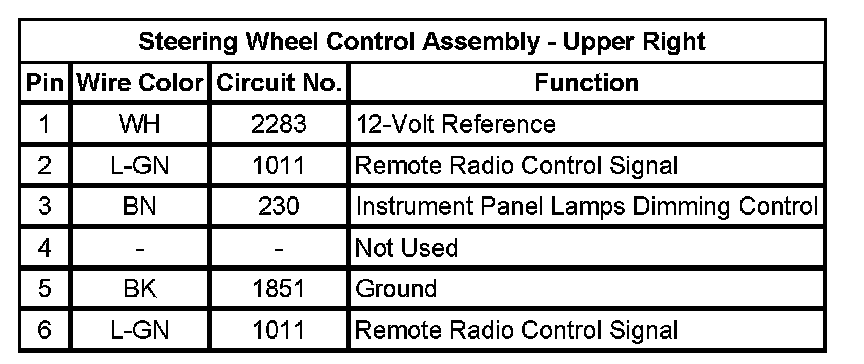

Steering Wheel Control Assembly - Upper Right
