Secondary/Configurable Control Connector End Views



Secondary/Configurable Control Connector End Views

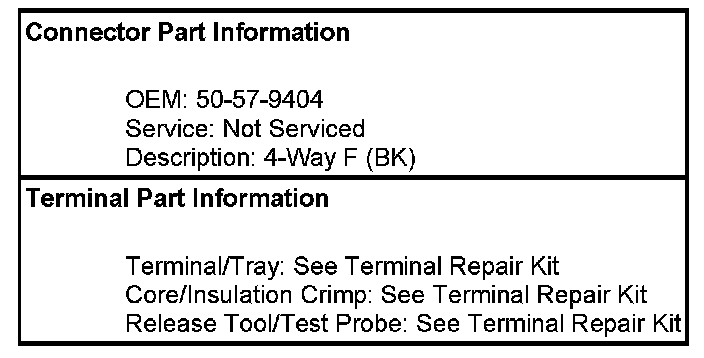

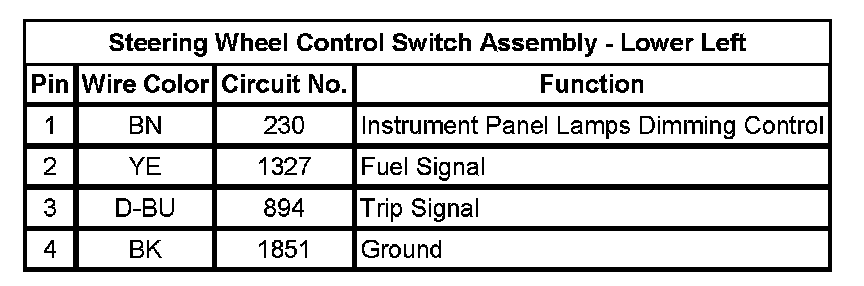

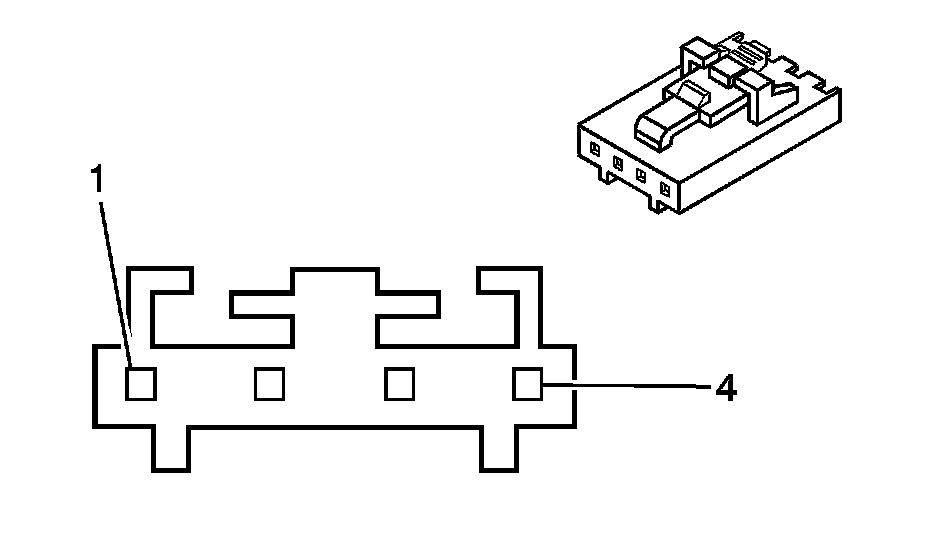

Steering Wheel Control Switch Assembly - Lower Left

Steering Wheel Controls - Right (UK3):

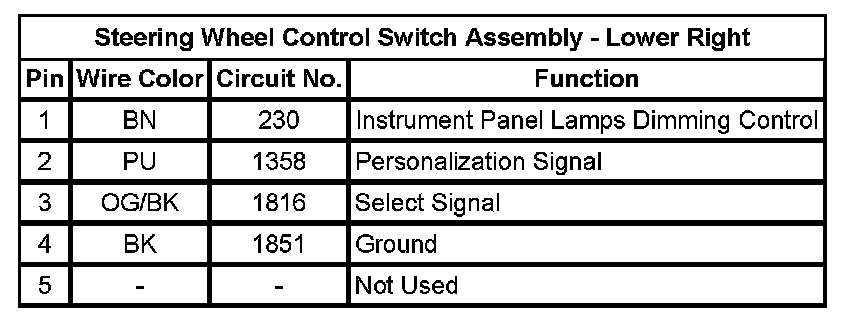

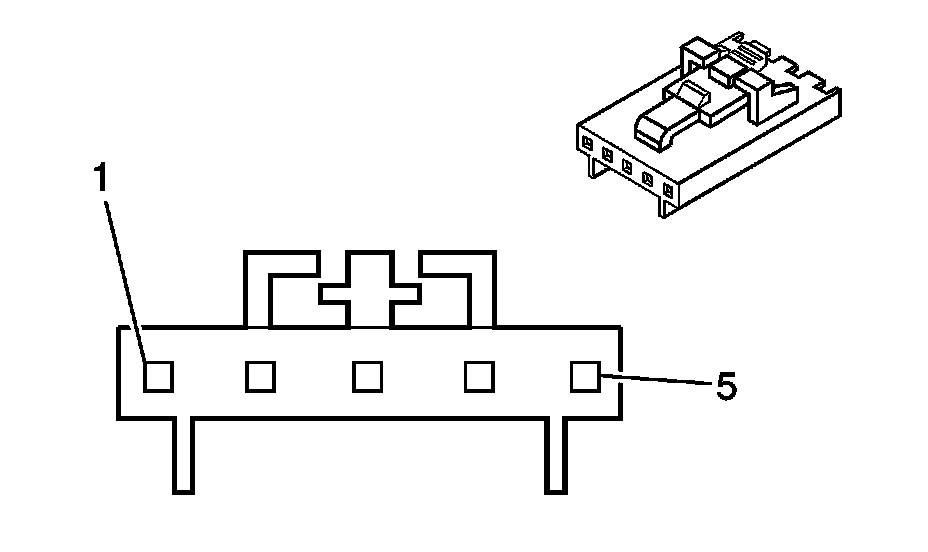

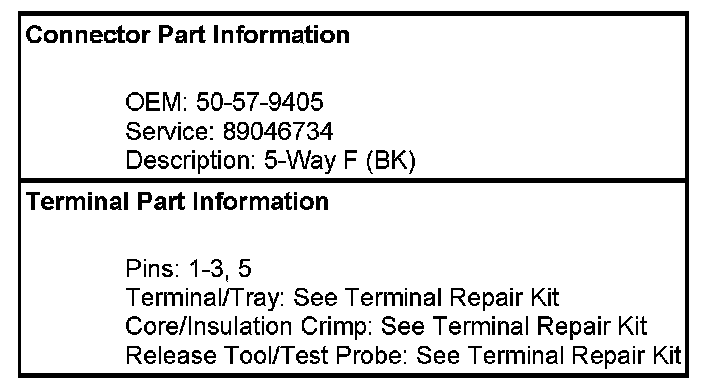

Steering Wheel Control Switch Assembly - Lower Right

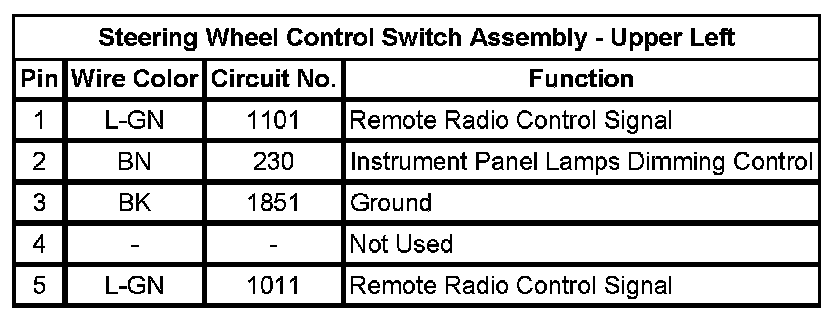

Steering Wheel Control Switch Assembly - Upper Left

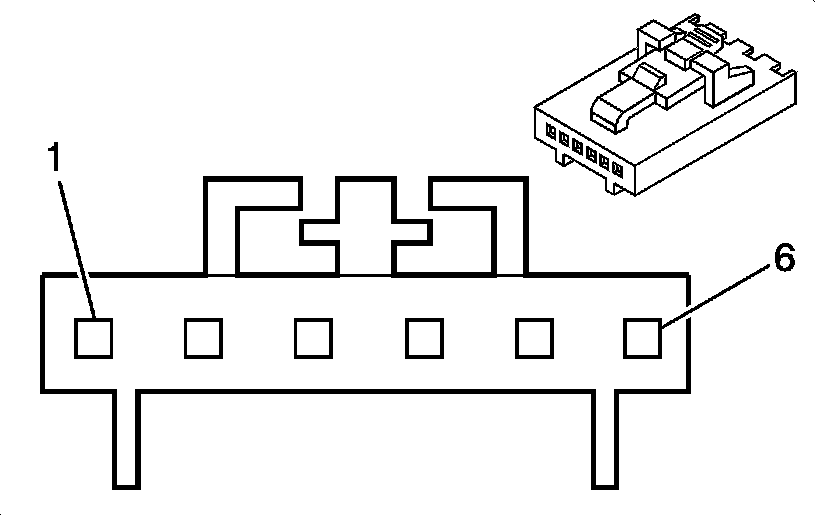

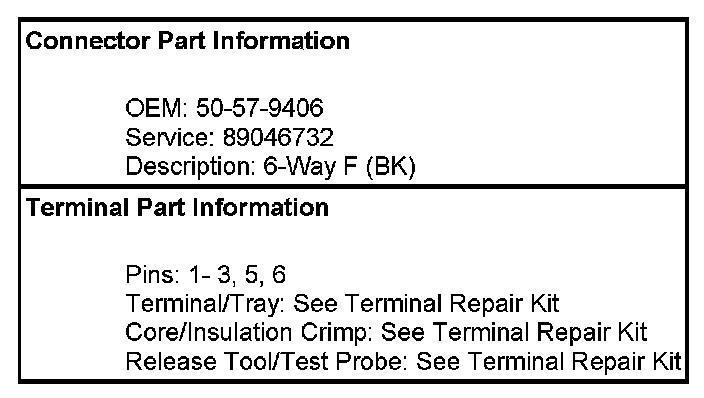

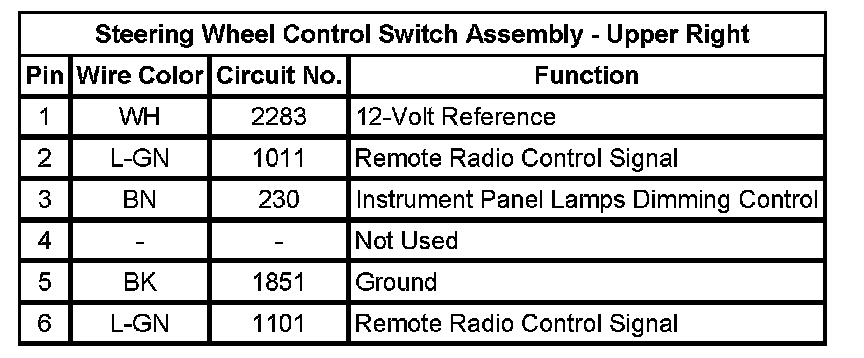

Steering Wheel Control Switch Assembly - Upper Right
