Windshield Washer Switch

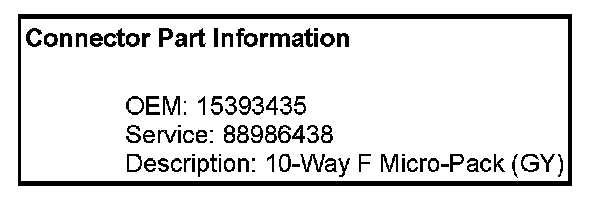

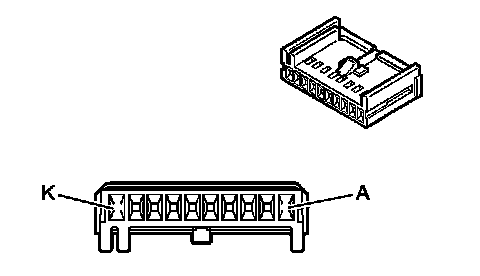

Wiper/Washer Connector End Views

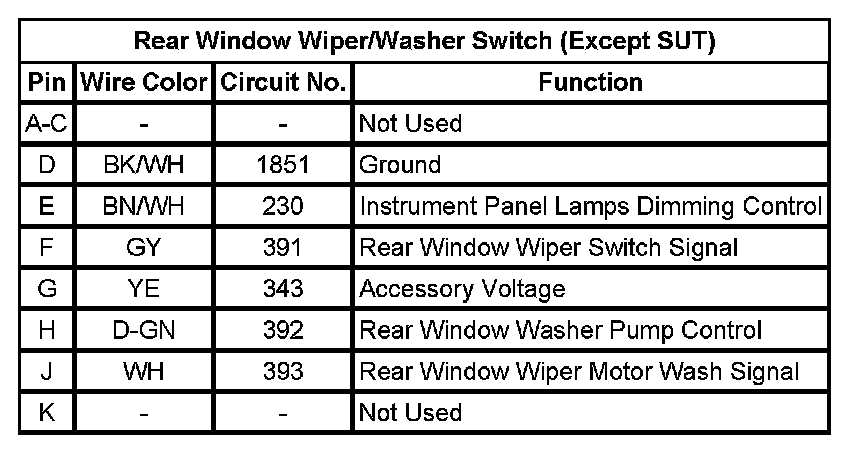

Rear Window Wiper/Washer Switch (Except SUT)
