Wiper Control Module



Wiper/Washer Connector End Views

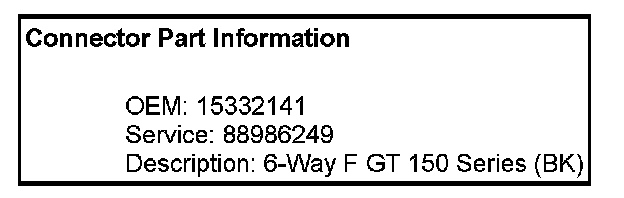

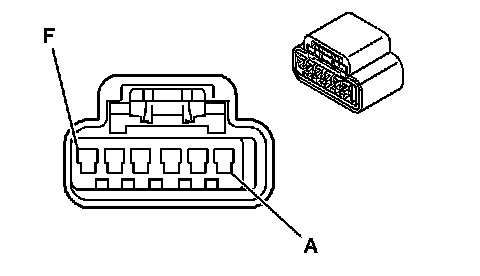

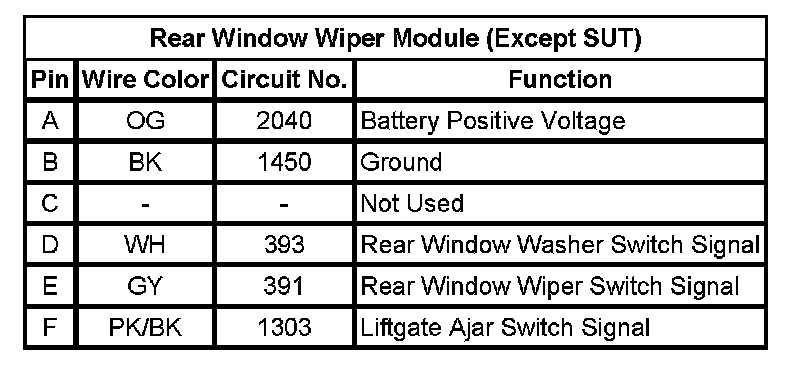

Rear Window Wiper Module (Except SUT)














Windshield Wiper Motor and Module
