Body Control Systems

Body Control System Schematics

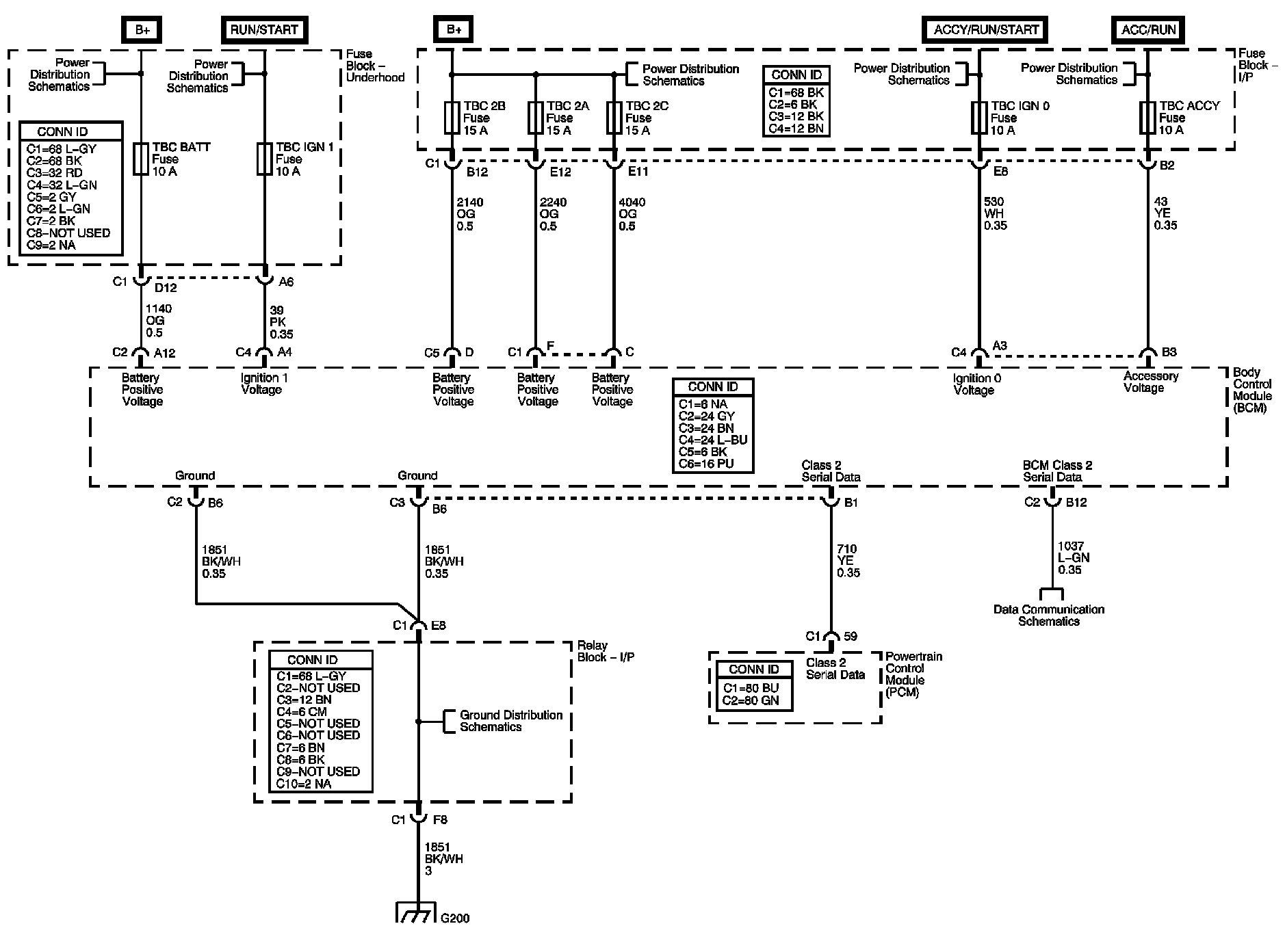

Power, Ground, and Serial Data

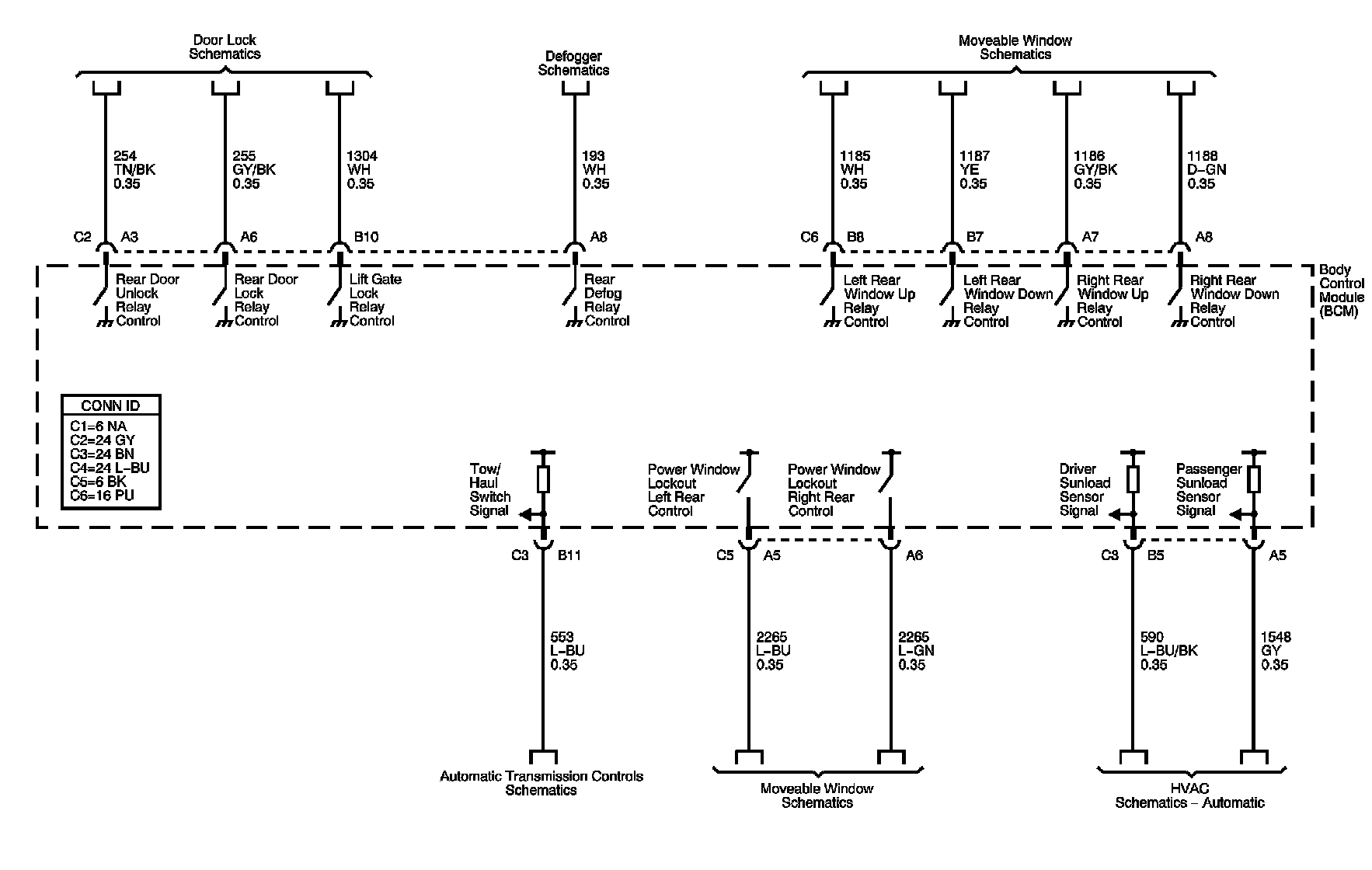

Power Windows, Door Locks, HVAC, and Tow/Haul

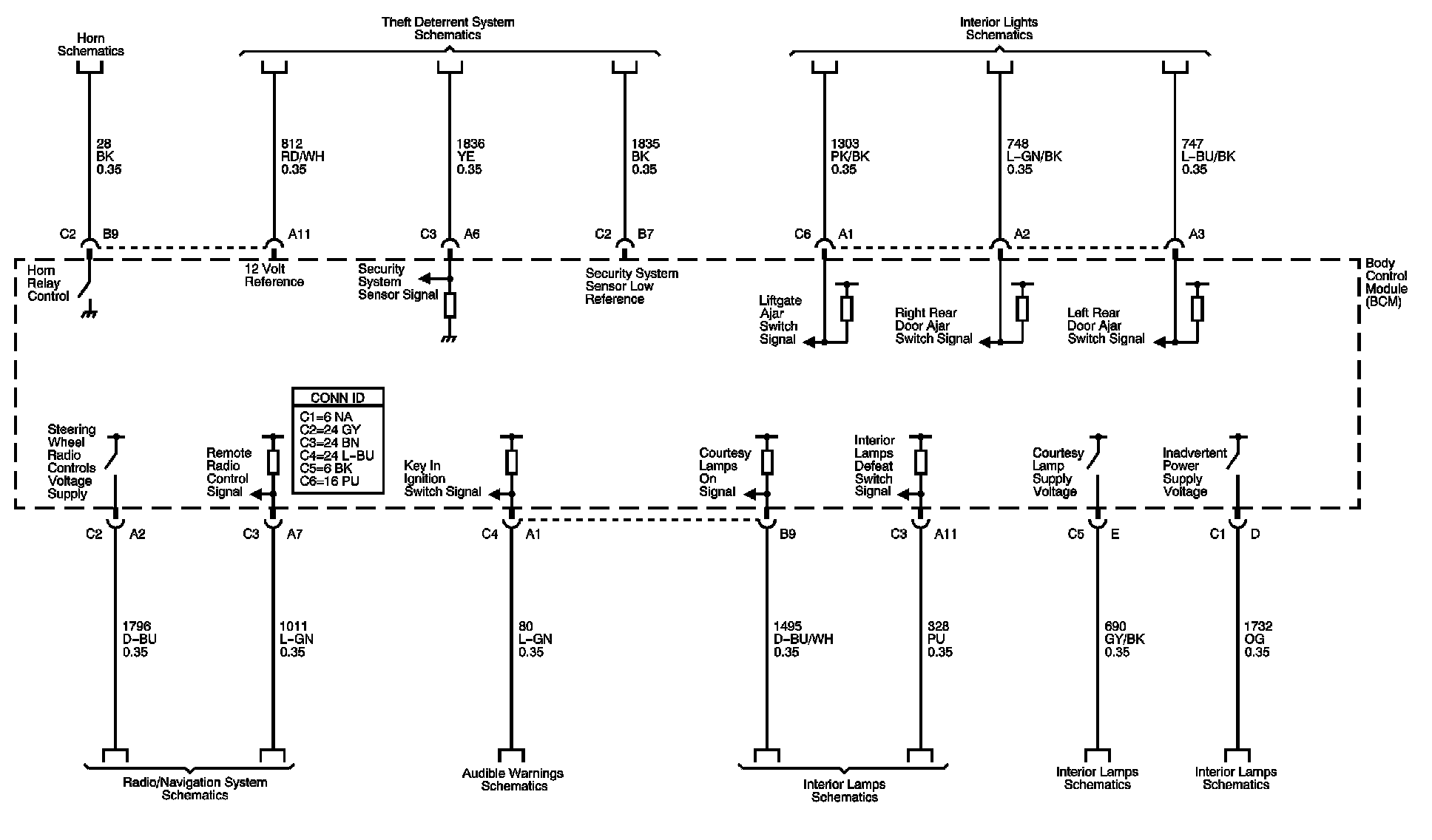

Interior Lights, Horns, Entertainment, and Theft Deterrent

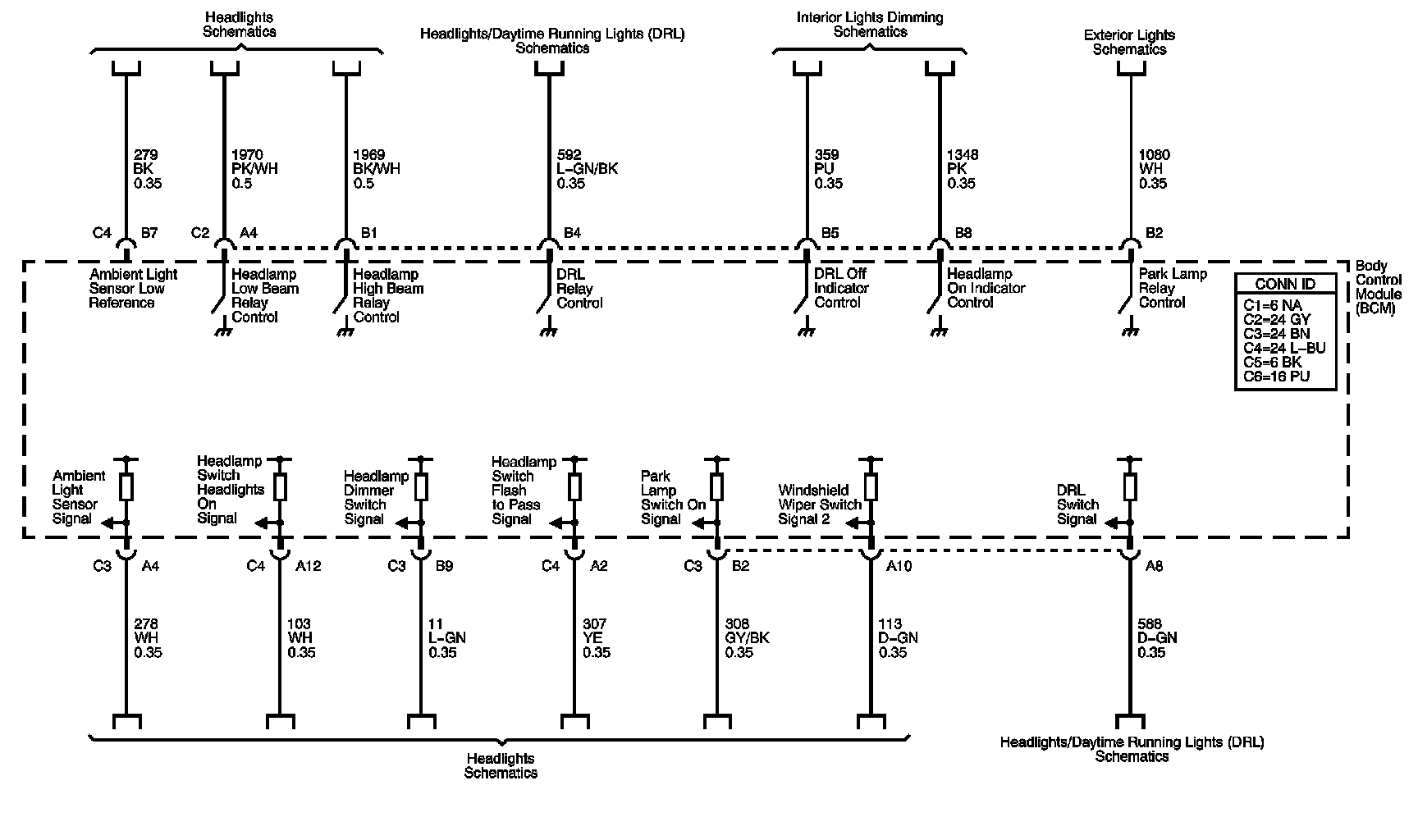

Headlamps, Park Lamps, DRL, and Park Brake Signals

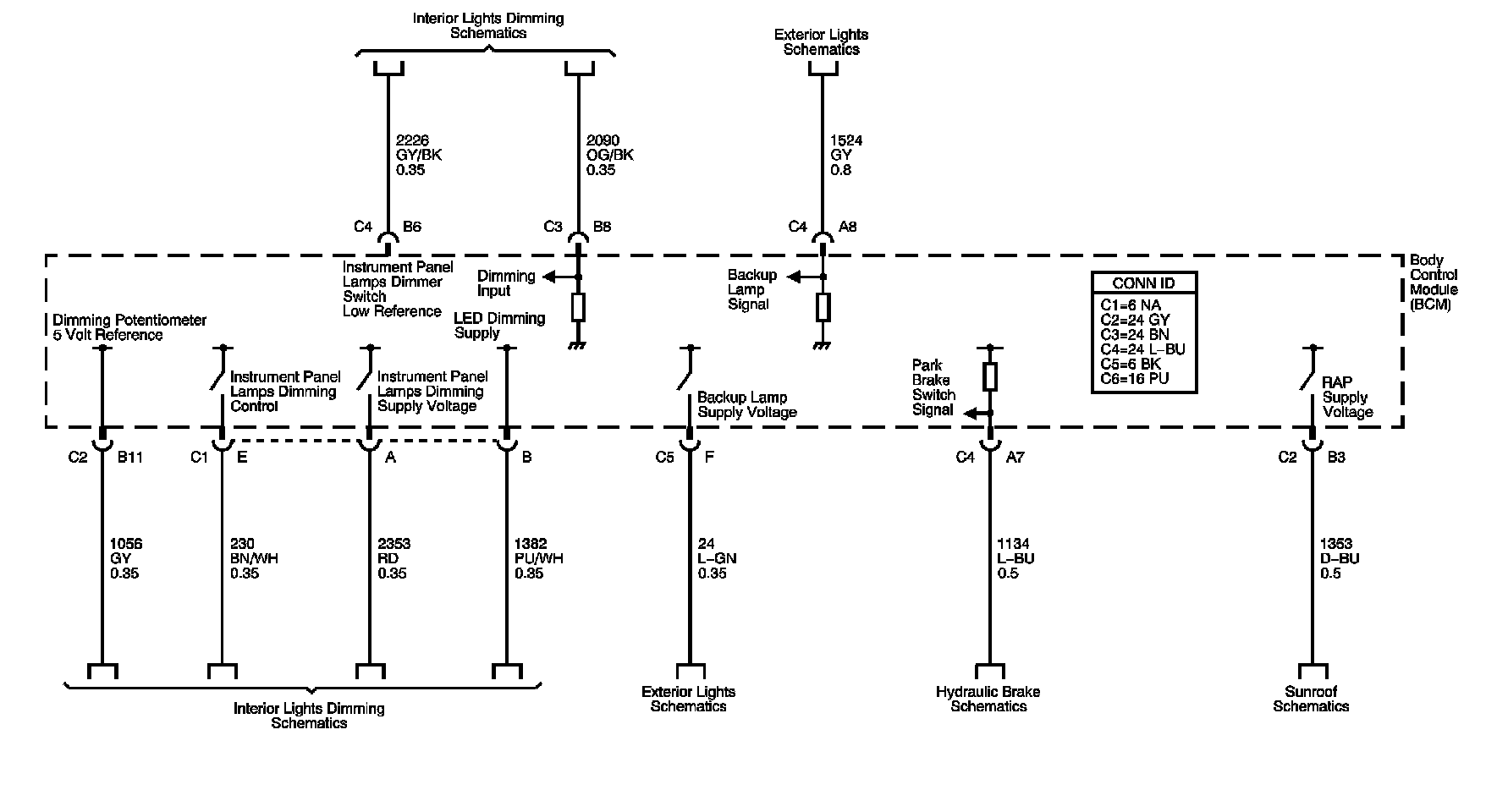

Interior Lights Dimming, Backup Lamps, and Sunroof Power







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
