Door Module

Door Control Module Schematics

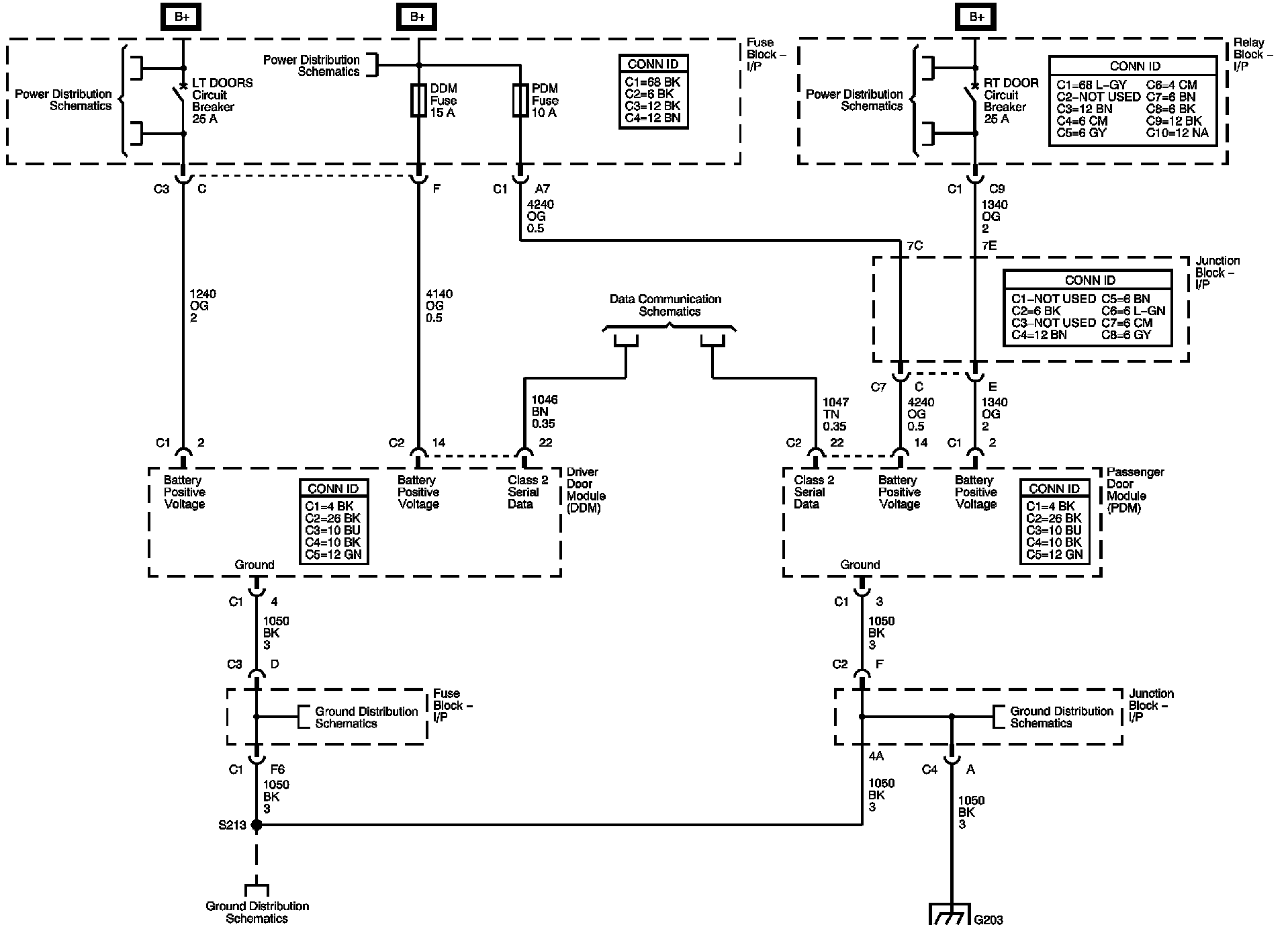

Power, Ground, and Serial Data

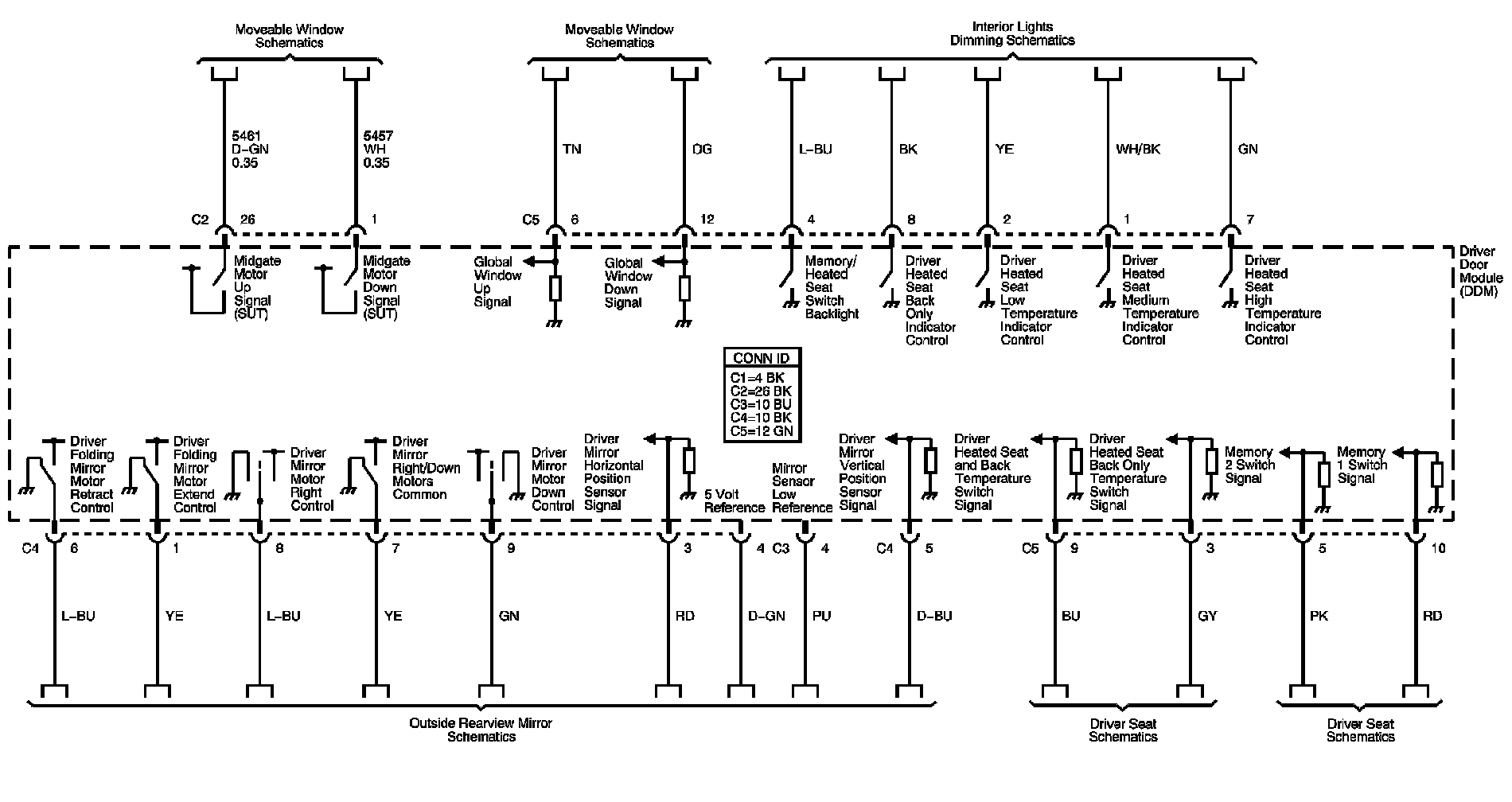

Driver Door Module References 1 of 2

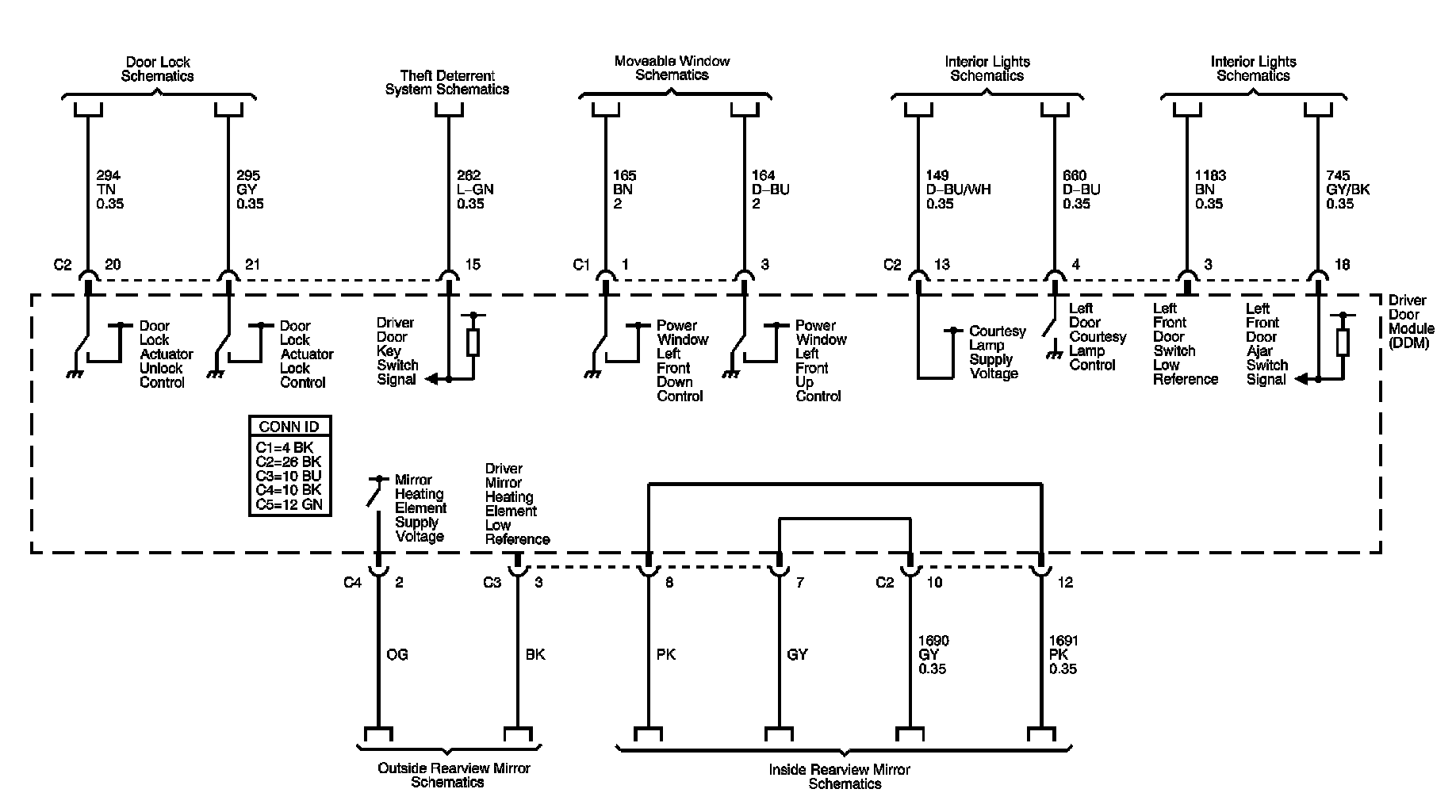

Driver Door Module References 2 of 2

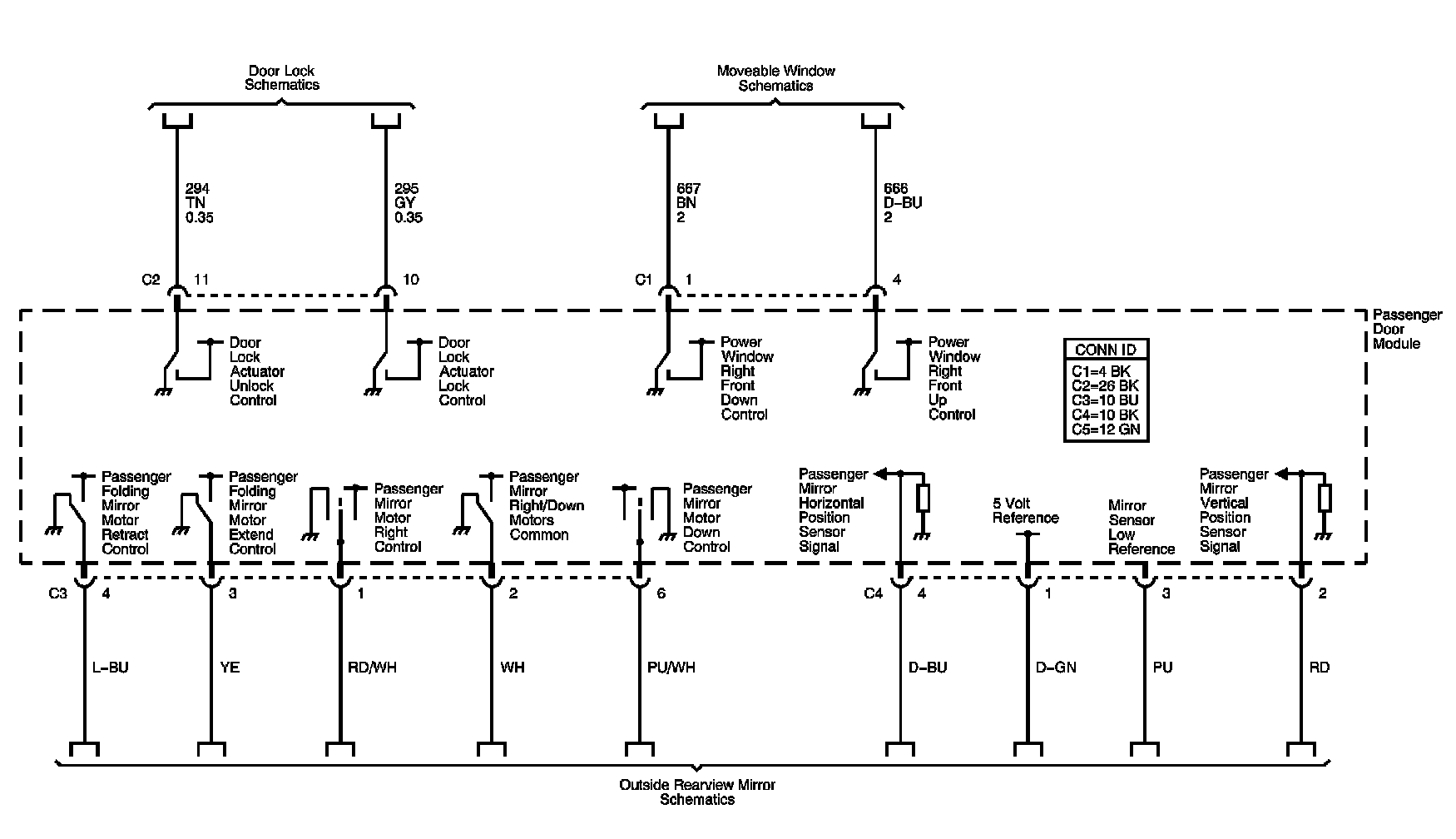

Passenger Door Module References 1 of 2

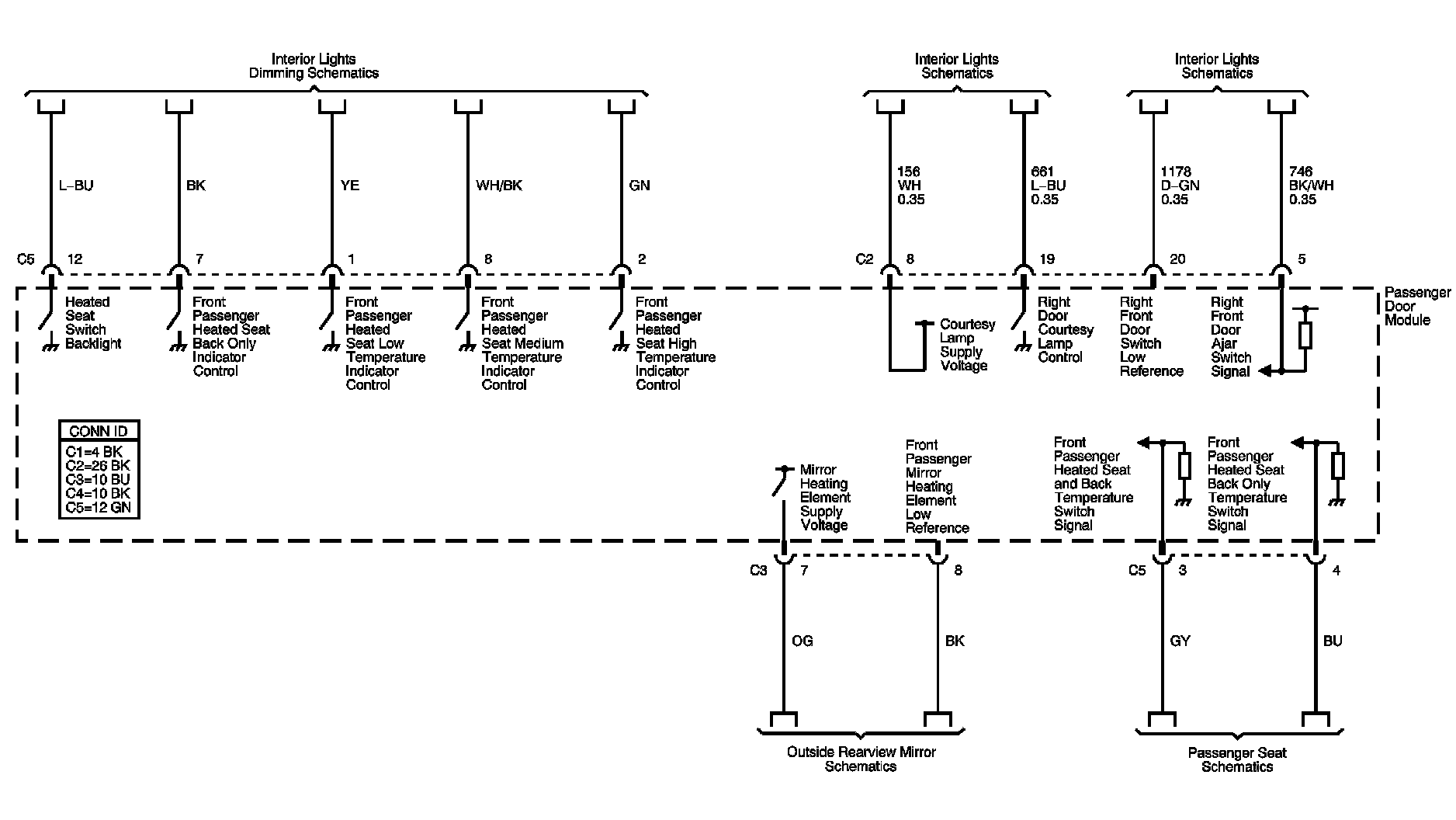

Passenger Door Module References 2 of 2







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
