Refrigerant Pressure Sensor / Switch: Locations

HVAC Component Views

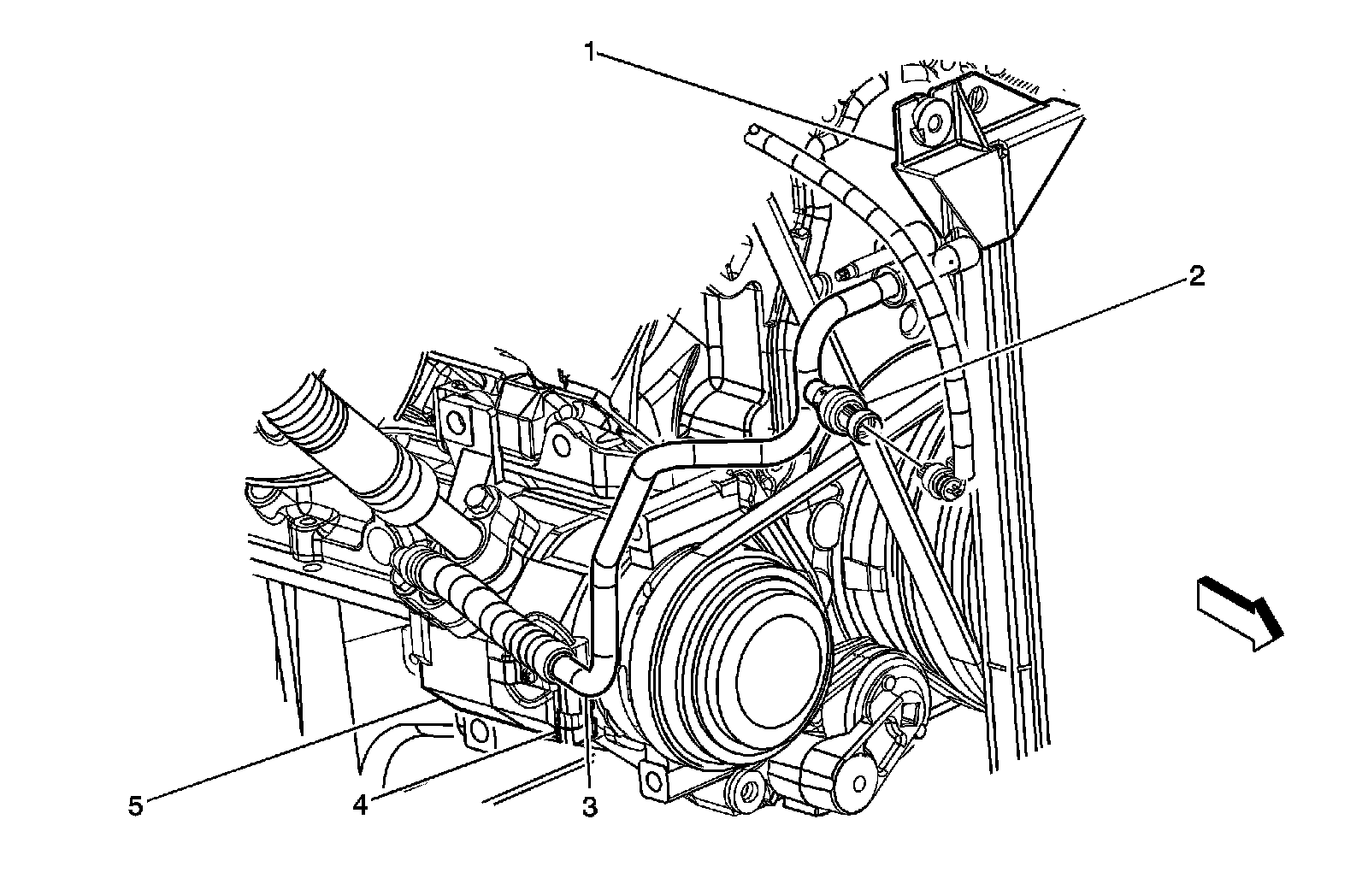

Lower Right Side of Engine




1 - A/C Condenser
2 - A/C Refrigerant Pressure Sensor
3 - A/C Condenser Hose
4 - A/C Compressor Clutch Connector
5 - A/C Compressor
