Liftgate Views

Harness Routing Views

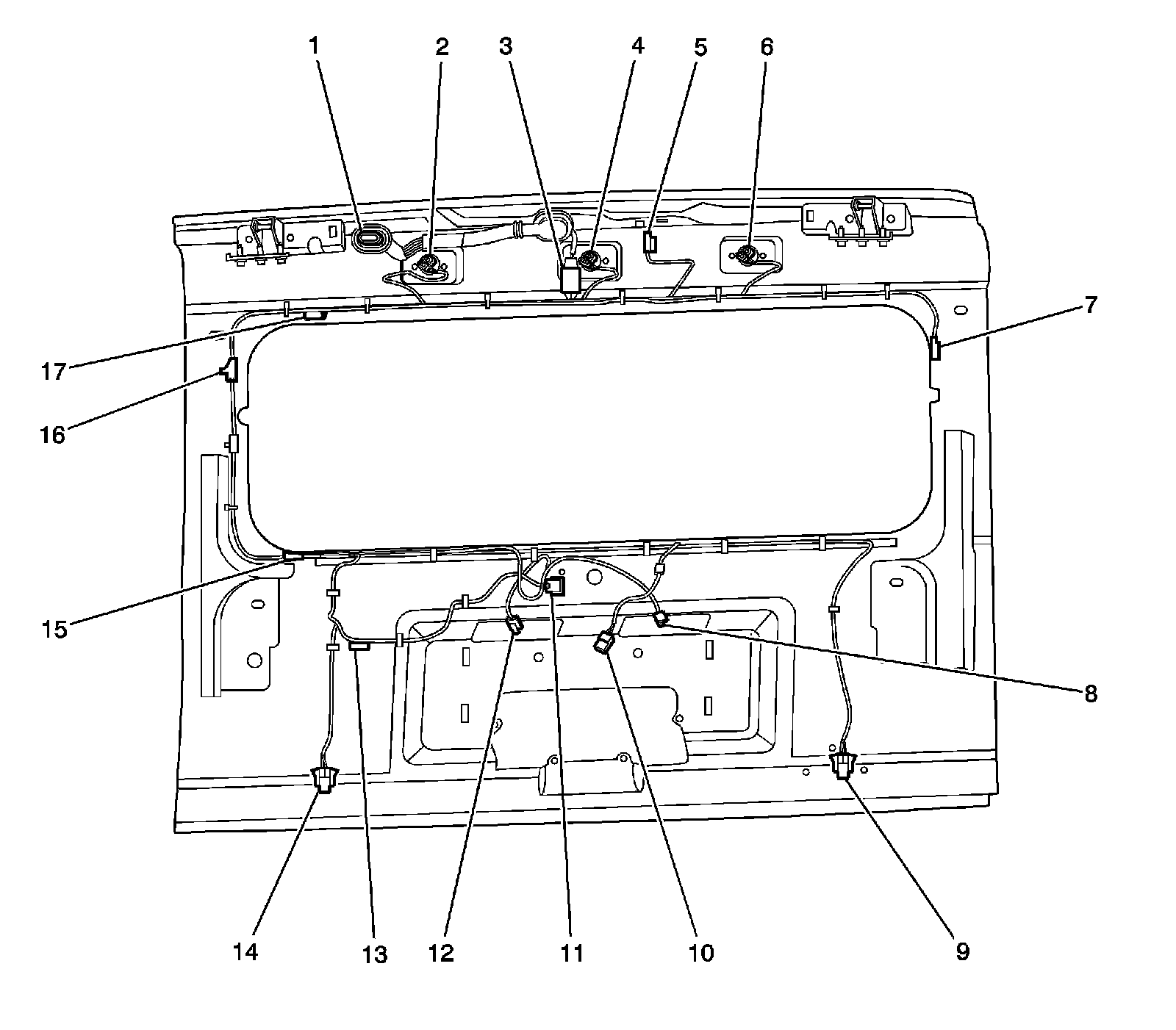

Liftgate Harness Routing




1 - C420
2 - Roof Lamp-Right Rear Connector
3 - C900
4 - Roof Lamp-Center Connector
5 - CHMSL
6 - Roof Lamp-Left Rear Connector
7 - Rear Window Defogger Grid-Left Connector
8 - License Lamp Connector
9 - Liftgate Ajar Switch-Left Connector
10 - Door Lock Actuator-Liftgate Connector
11 - Rear Window Wiper Motor Connector
12 - License Lamp Connector
13 - S902
14 - Liftgate Ajar Switch-Right Connector
15 - S901
16 - Defogger Grid-Right Connector
17 - S900
