G405

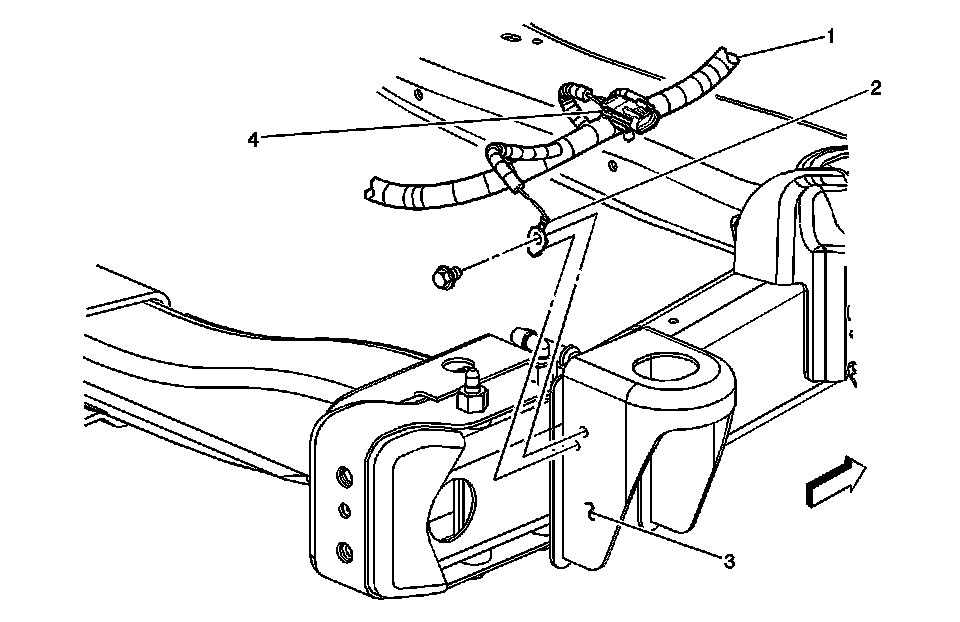

Power and Grounding Component Views

G405




1 - Chassis Harness
2 - G405
3 - Body Mount-RH
4 - Air Suspension Inflator Switch Connector
