Coolant Temperature Sensor/Switch (For Computer): Locations

Engine Controls Component Views

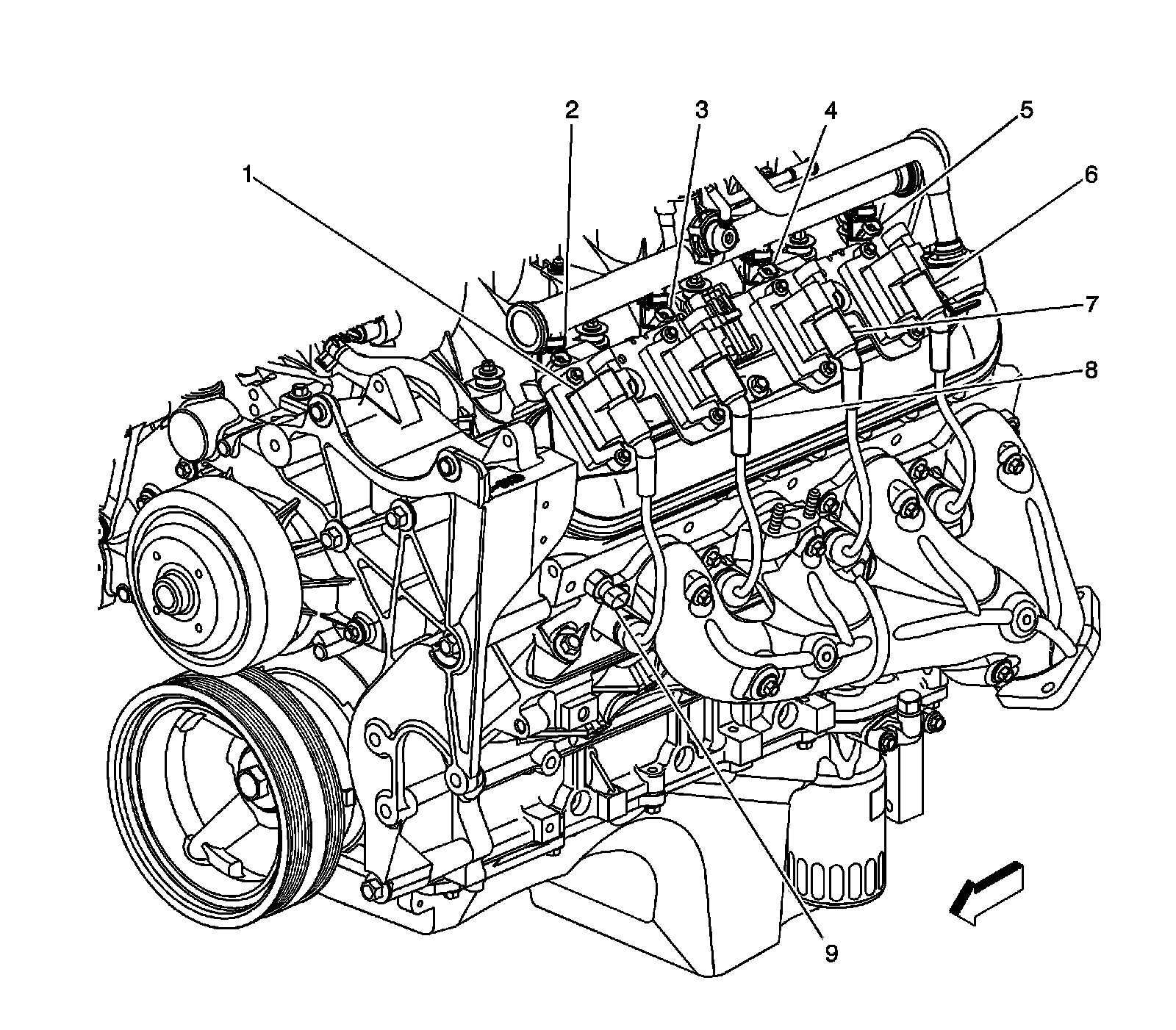

Left Side of Engine




1 - Ignition Coil 1
2 - Fuel Injector 1
3 - Fuel Injector 3
4 - Fuel Injector 5
5 - Fuel Injector 7
6 - Ignition Coil 7
7 - Ignition Coil 5
8 - Ignition Coil 3
9 - Engine Coolant Temperature (ECT) Sensor
