Transmission Temperature Sensor/Switch, A/T

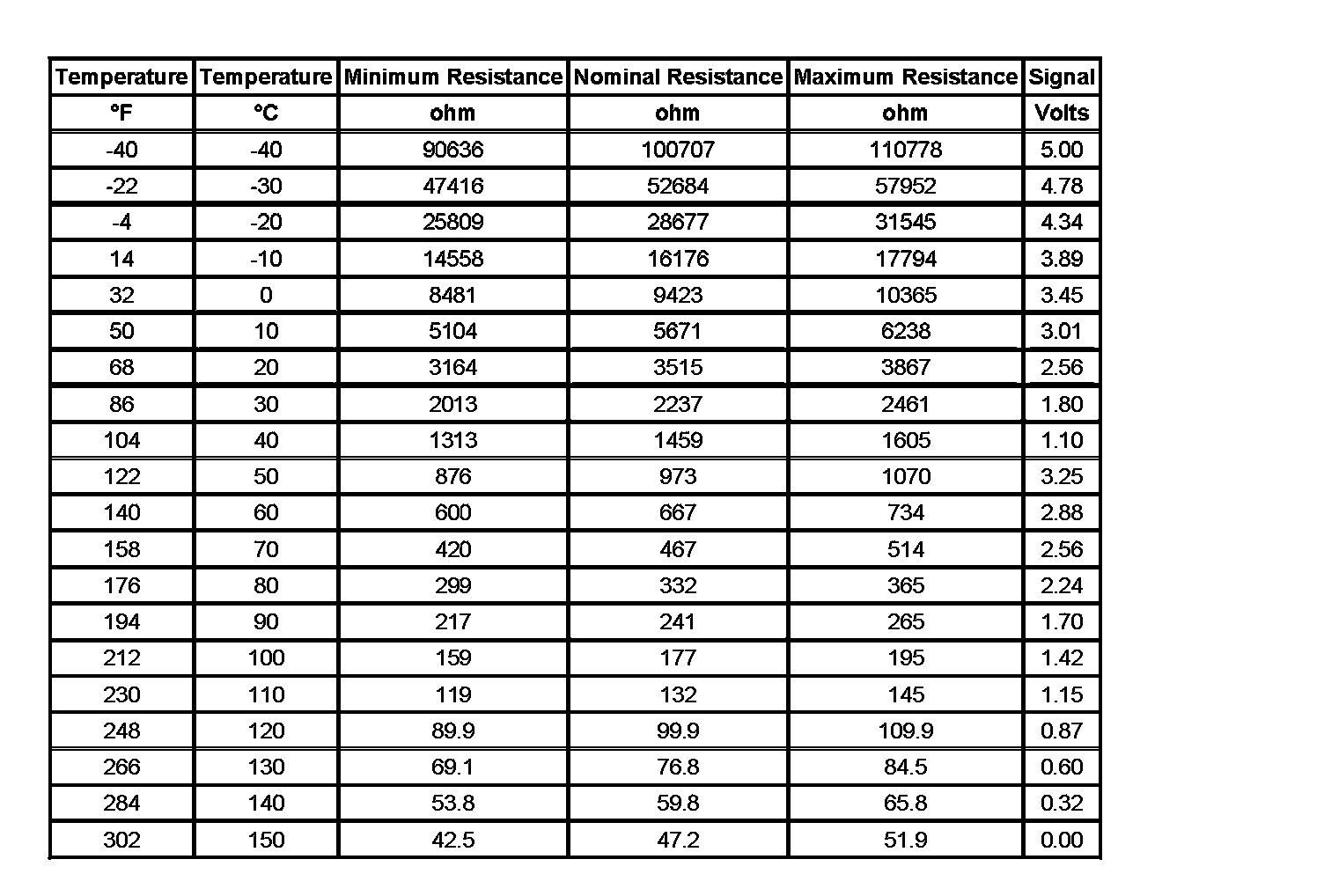

Transmission Fluid Temperature Sensor Specifications

Transmission Fluid Temperature Sensor Specifications:
