Fluid Pan, A/T
Fluid Pan

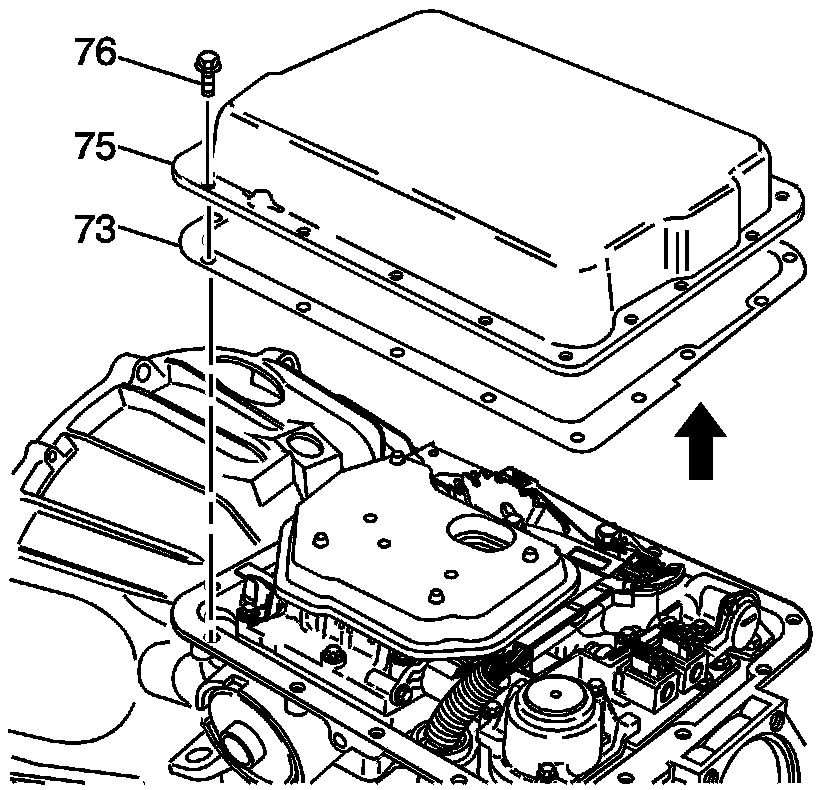

Install all of the transmission oil pan screws (76).
Tighten the screws to
16 N.m (11.8 lb ft).
