Intake Manifold

Throttle Body Nuts 10 N.m (89 lb in)
Throttle Body Studs 6 N.m (53 lb in)

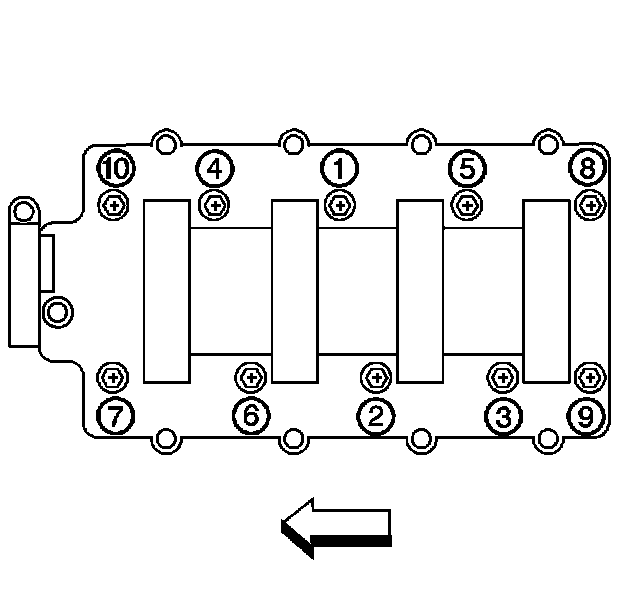

Intake Manifold Bolts - First Pass in Sequence 5 N.m (44 lb in)
Intake Manifold Bolts - Final Pass in Sequence 10 N.m (89 lb in)
