Relay Block - I/P



Power and Grounding Component Views

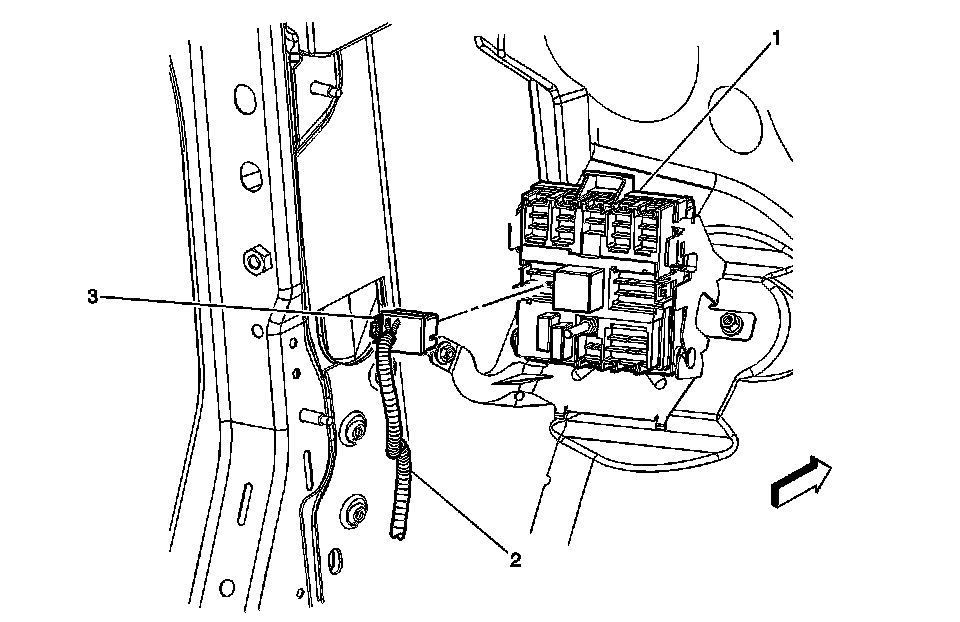

Relay Block - I/P




1 - Relay Block - I/P
2 - Body Harness
3 - Relay Block - I/P - C10 (NAT)
