Power Window Motor: Locations

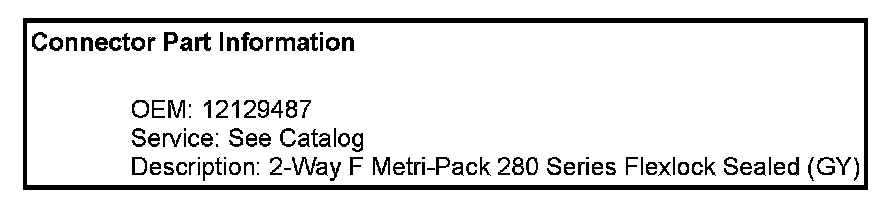

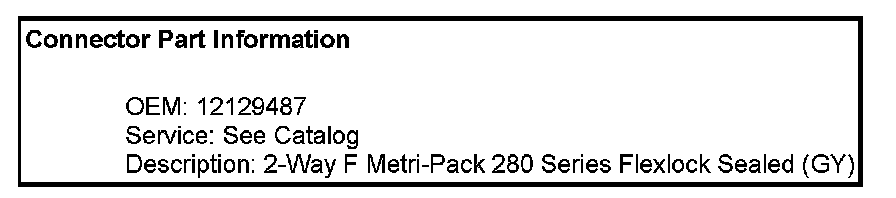

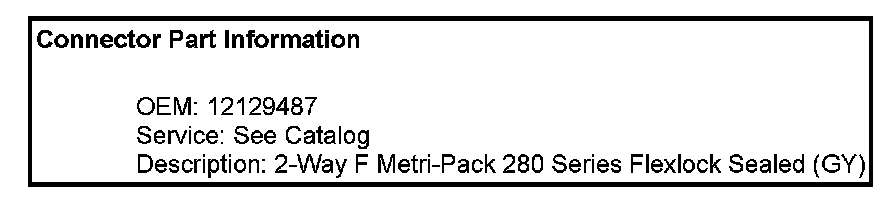

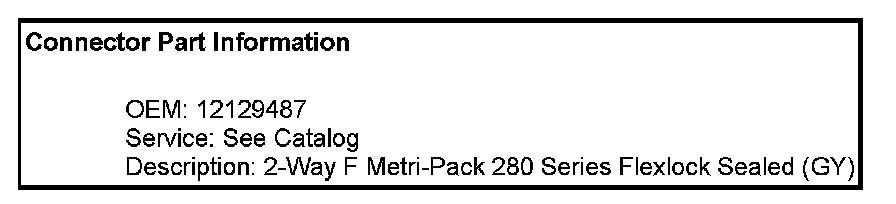

Vehicle Access Connector End Views

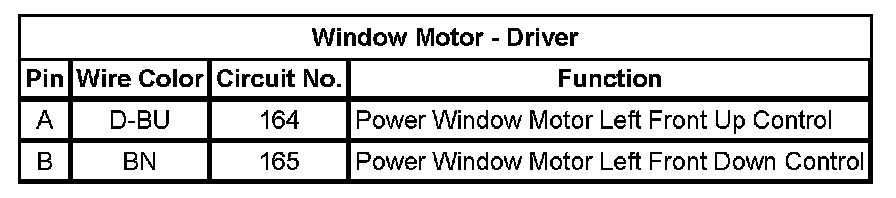

Window Motor - Driver

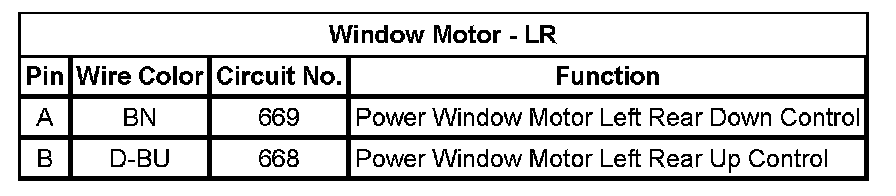

Window Motor - LR

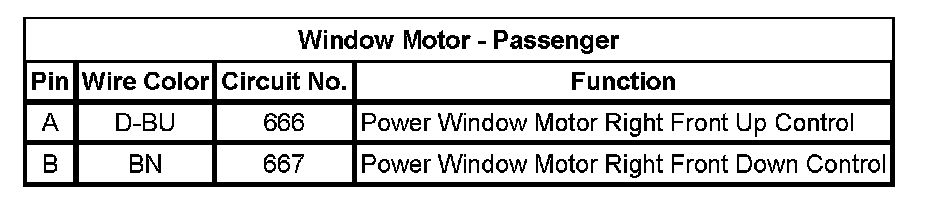

Window Motor - Passenger

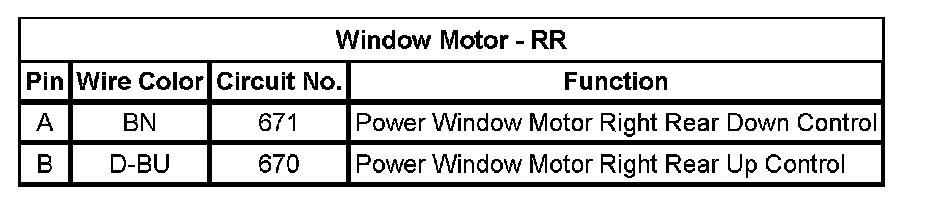

Window Motor - RR
