Remote Function Component Views

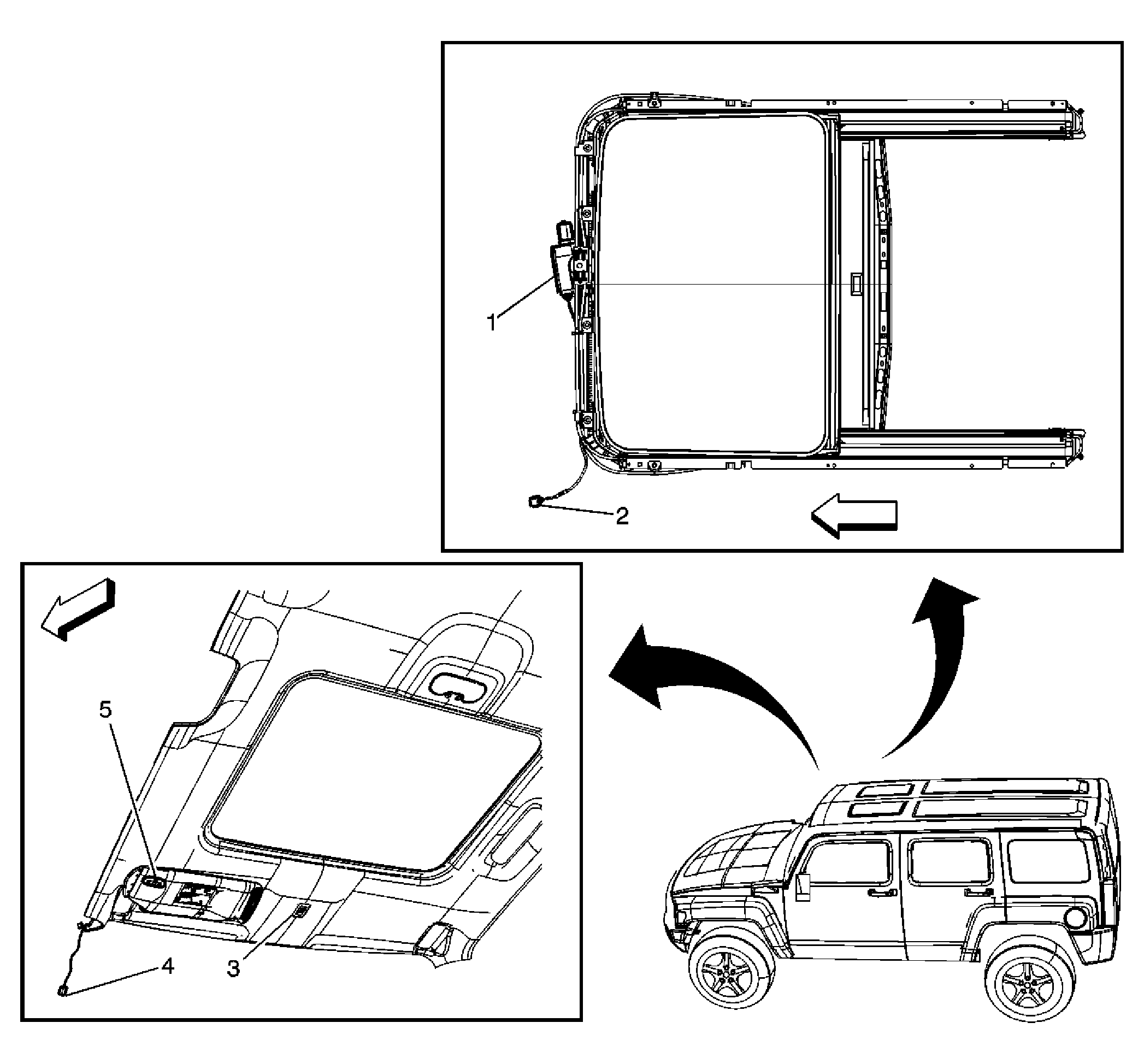

Fig 1: Identifying Sunroof Components
GM1554776Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Motor
2 C330 Sunroof Jumper Harness to Body Harness
3 Sunroof Switch
4 C335 Sunroof Jumper Harness to Body Harness
5 Garage Door Opener
