Engine Electrical Component Views

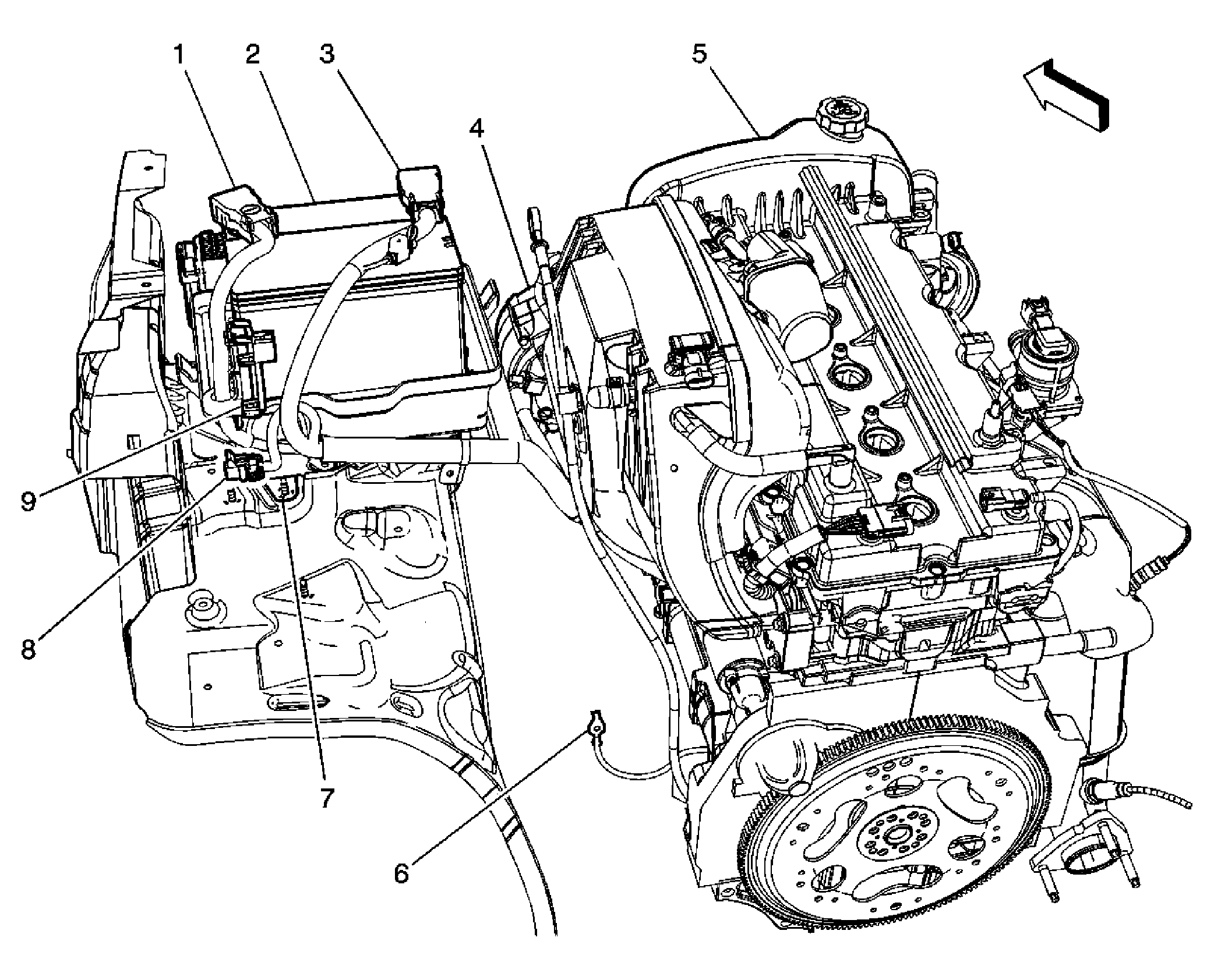

Fig 1: Identifying Engine Electrical Components

GM1850299

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Negative Battery Cable
2	Battery
3	Positive Battery Cable
4	Generator
5	Engine-LRR
6	G120
7	G100
8	C130 (UE1)
9	Generator Control Module

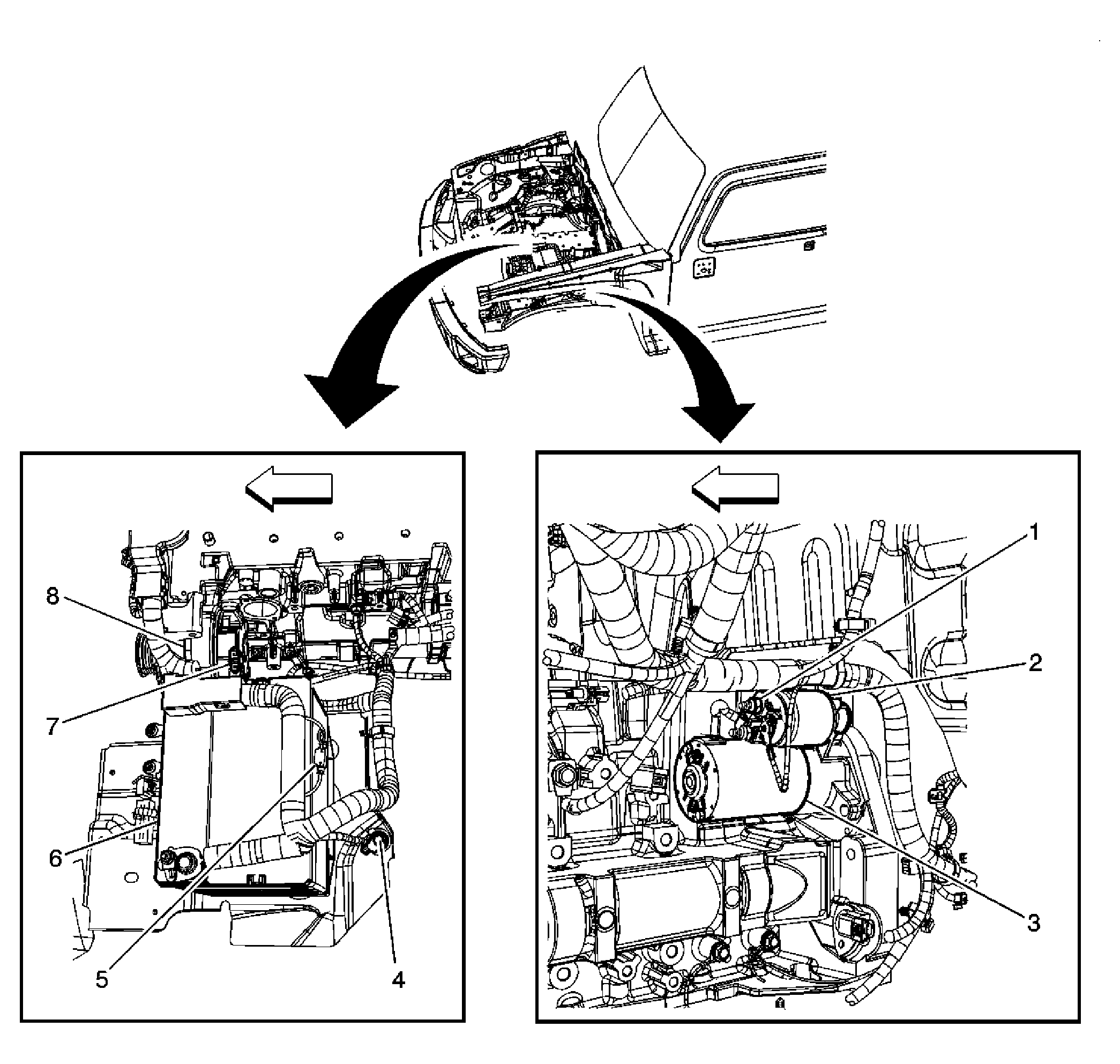

Fig 2: Identifying Engine Electrical Components (1 Of 2)

GM1554832

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Cable
2	Starter Solenoid
3	Starter Motor
4	G100
5	OnStar Fuse
6	Battery
7	Generator Connector
8	Generator

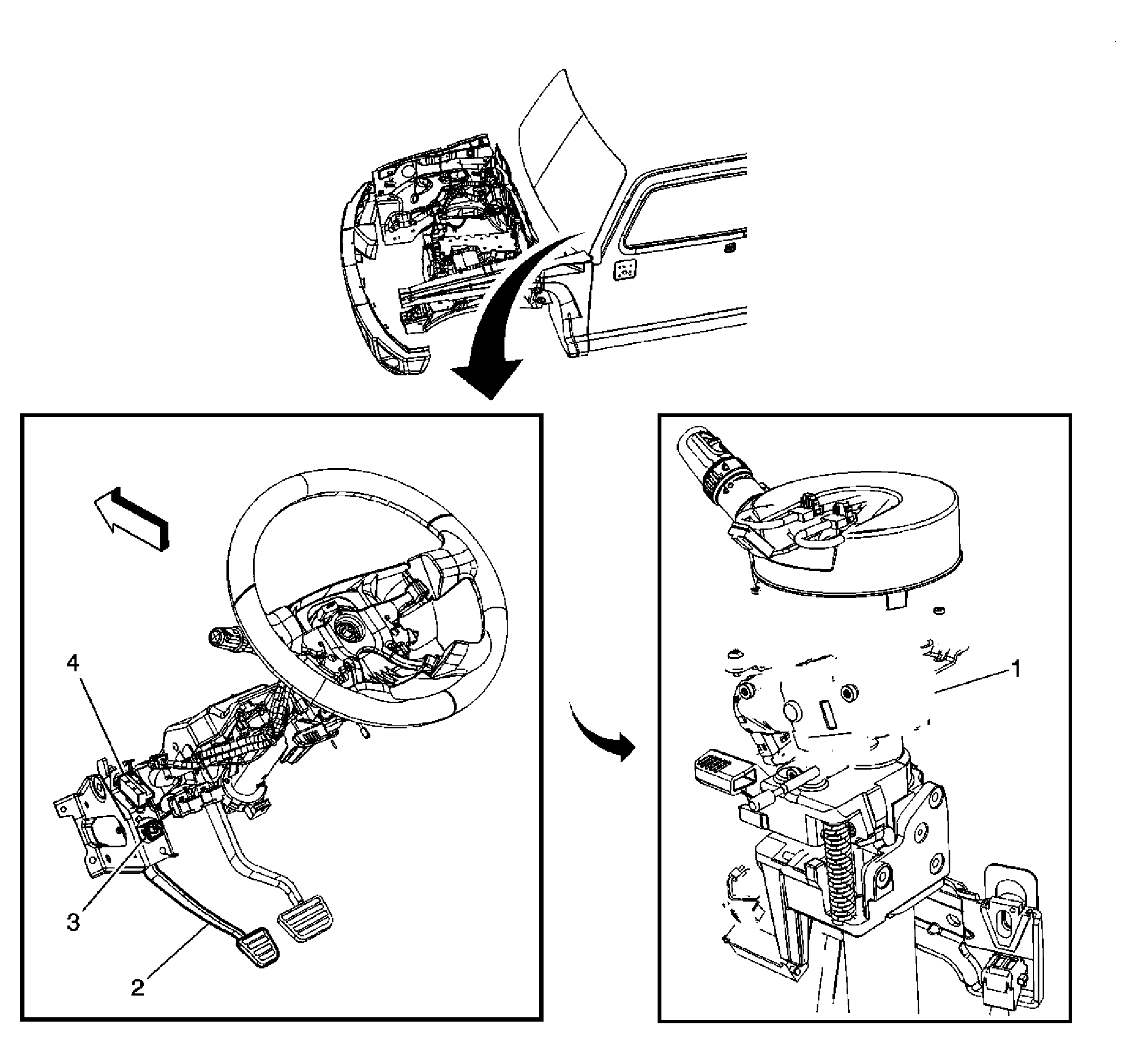

Fig 3: Identifying Engine Electrical Components (2 Of 2)

GM1554834

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Clutch Pedal (MA5)
3	Clutch Release Switch (MA5)
4	Clutch Start Switch (MA5)
