Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

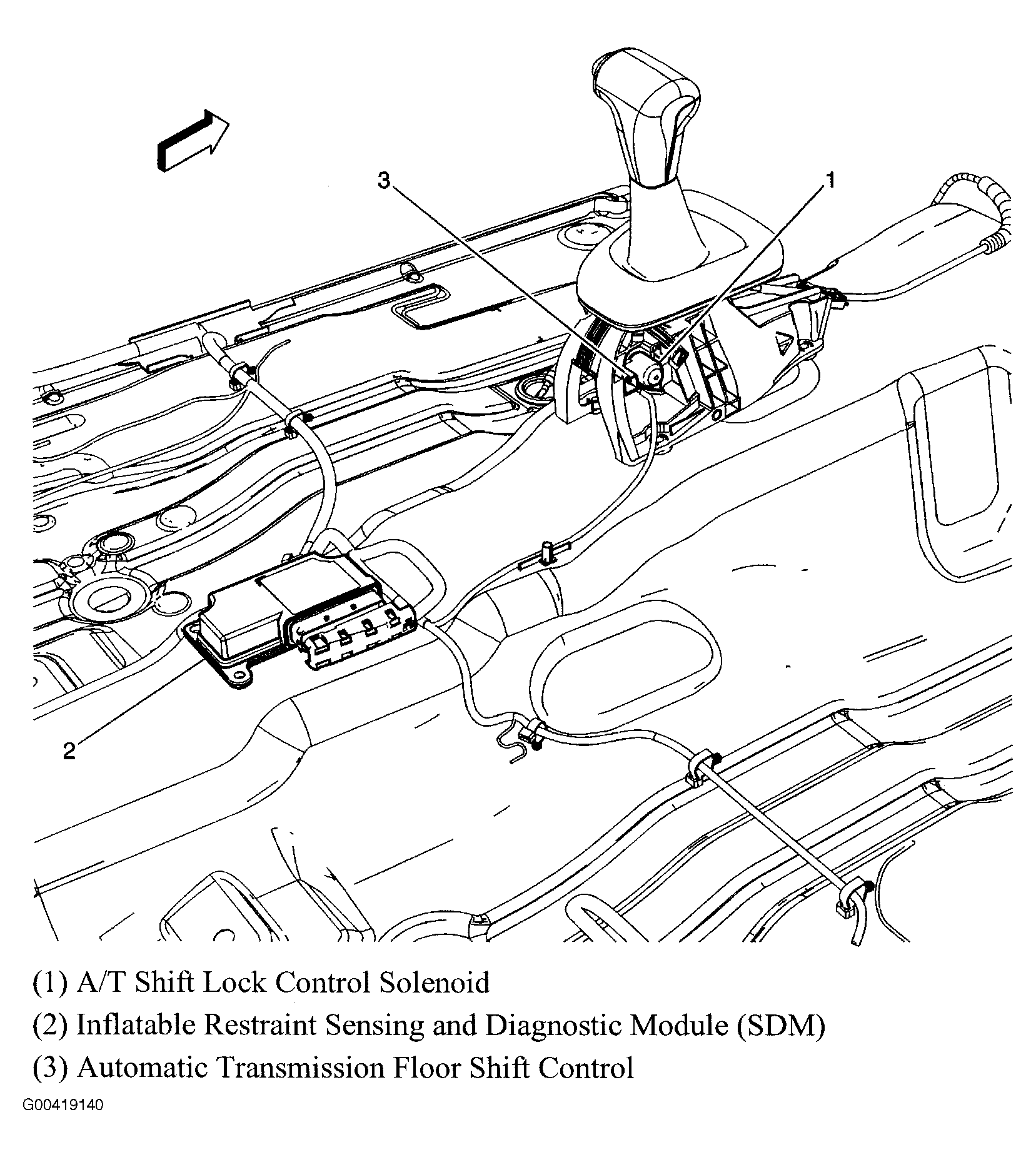

| Automatic Transmission Floor Shift Control | Beneath center console. See Figure. |

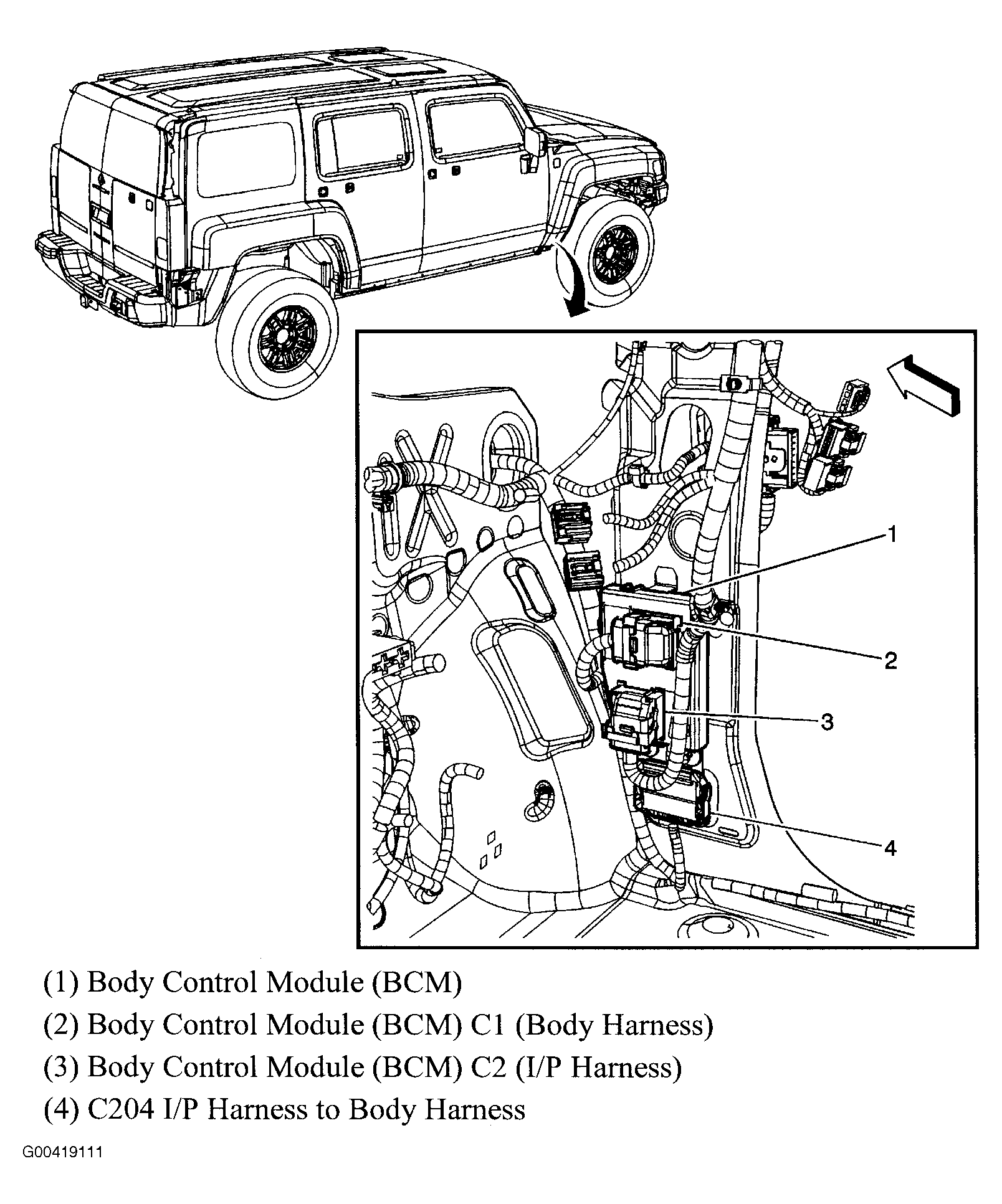

| Body Control Module (BCM) | Behind right front kick panel. See Figure. |

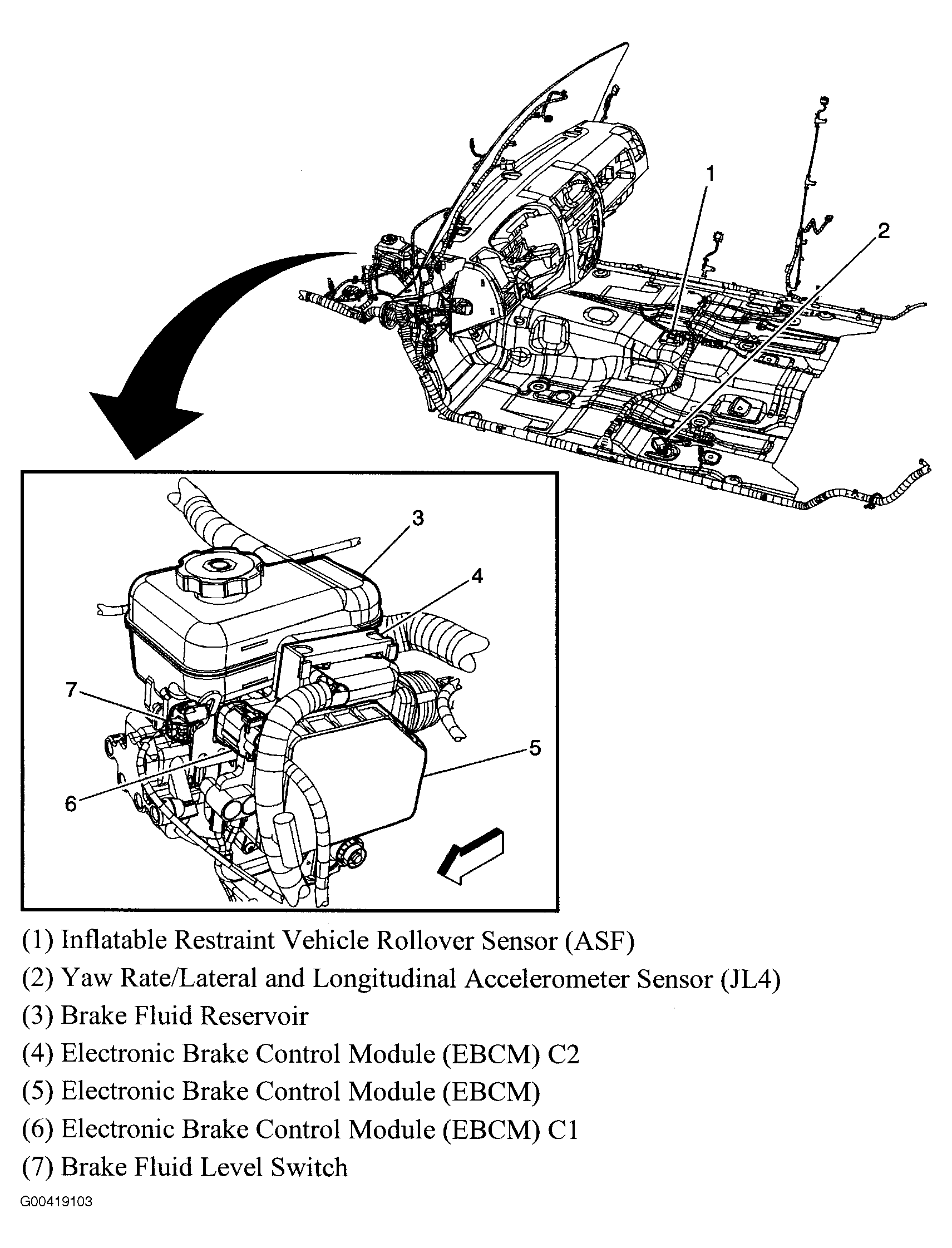

| Electronic Brake Control Module (EBCM) | Left of master cylinder. See Figure. |

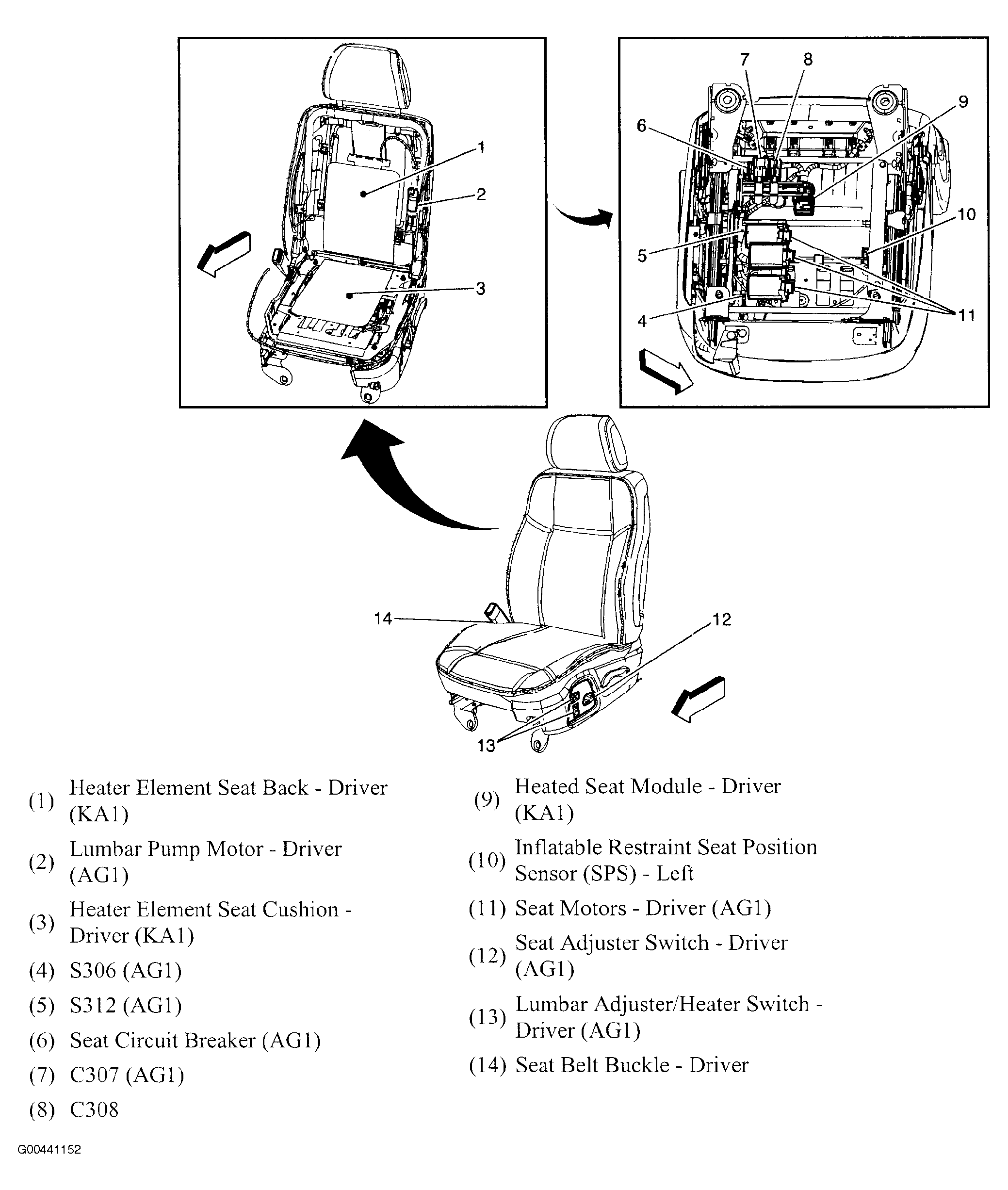

| Heated Seat Module - Driver | In driver seat bottom. See Figure. |

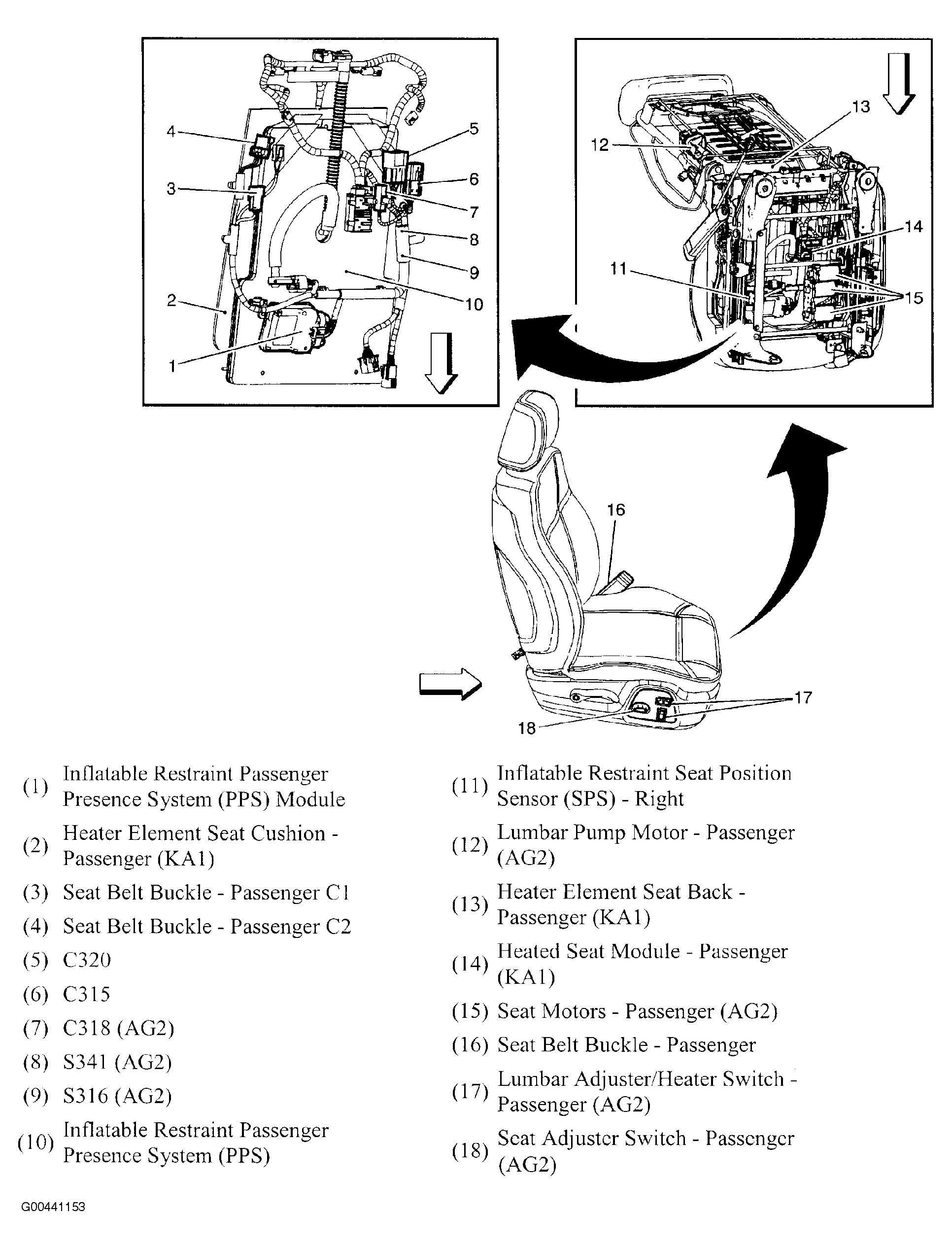

| Heated Seat Module - Passenger | In passenger seat bottom. See Figure. |

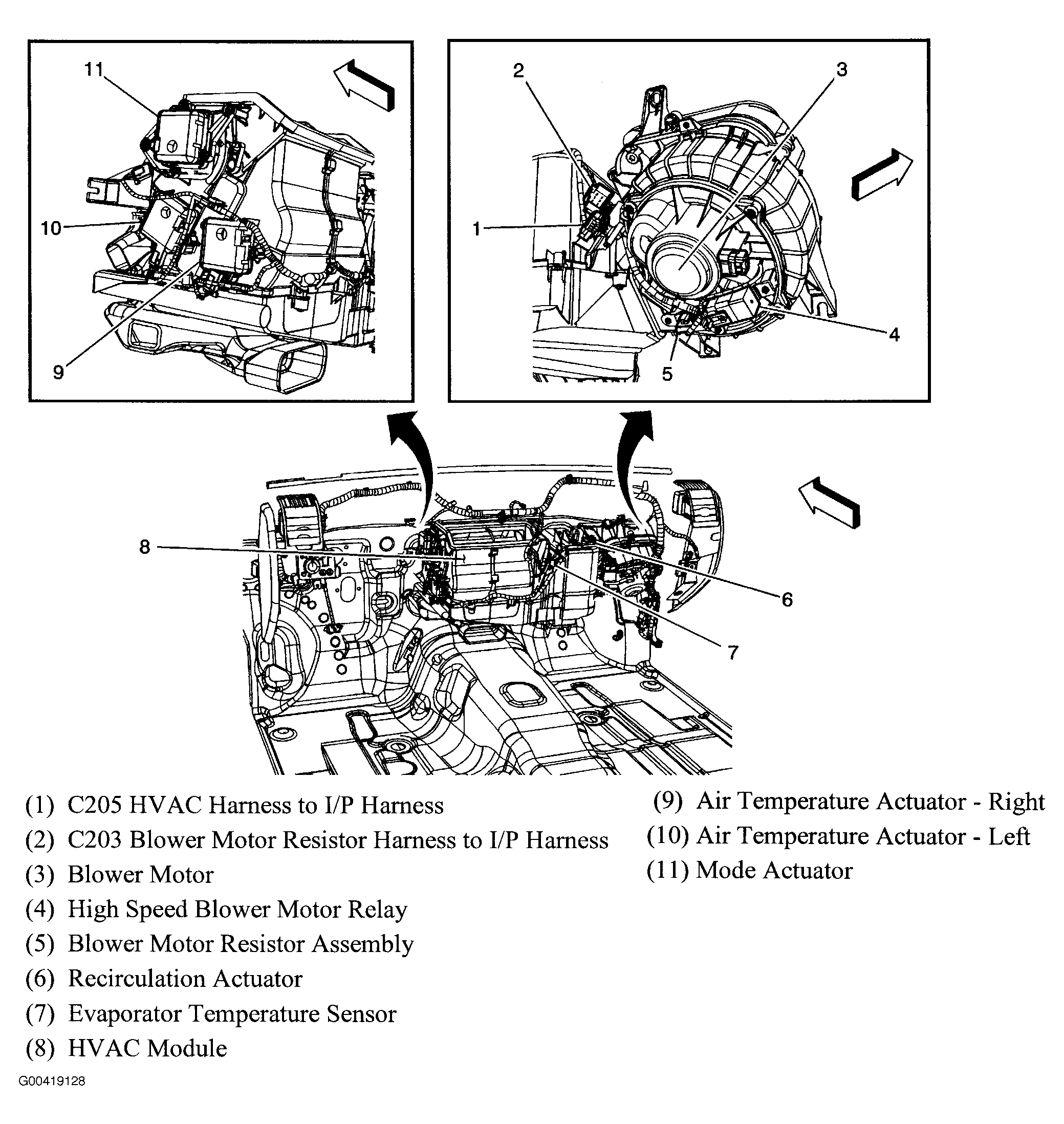

| HVAC Module | Beneath radio. See Figure. |
| Inflatable Restraint I/P Module | Above dash compartment. See Figure. |
| Inflatable Restraint Passenger Presence System (PPS) Module | On underside of cushion. See Figure. |

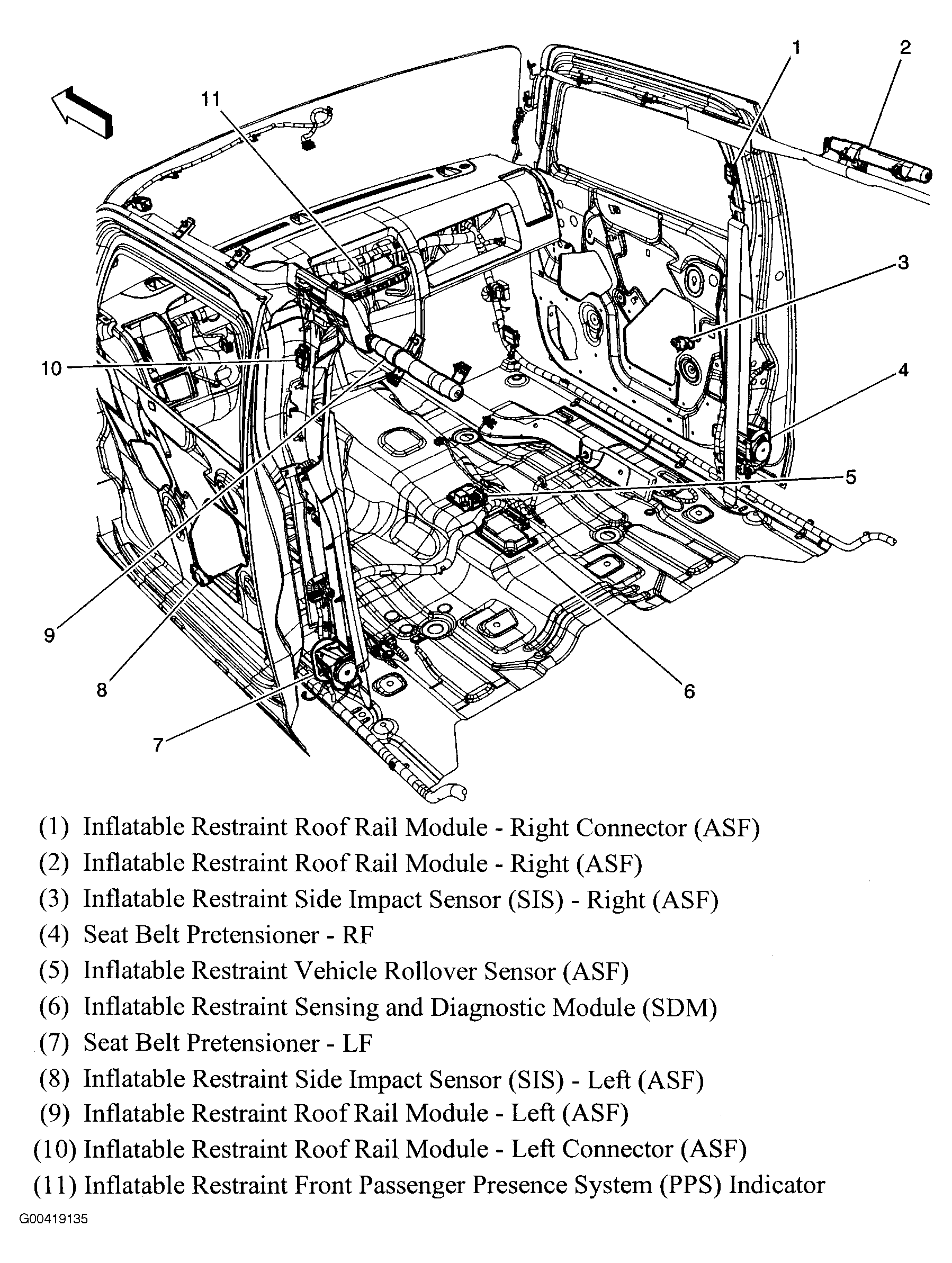

| Inflatable Restraint Roof Rail Module - Left | Upper left "B" pillar. See Figure. |
| Inflatable Restraint Roof Rail Module - Right | Upper right "B" pillar. See Figure. |
| Inflatable Restraint Sensing And Diagnostic Module (SDM) | Beneath lower console. See Figure. |

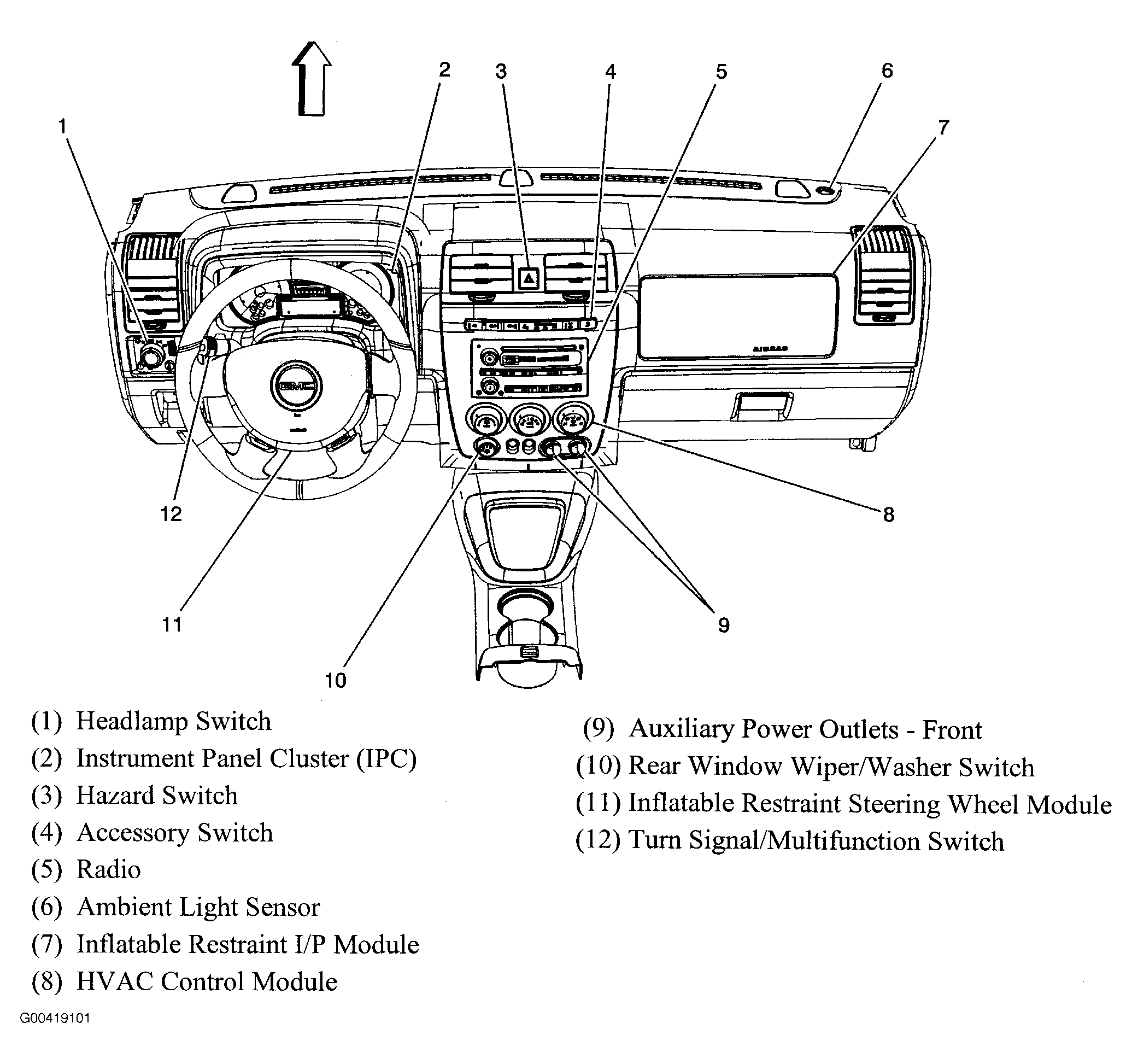

| Inflatable Restraint Steering Wheel Module | In steering column. See Figure. |
| Powertrain Control Module (PCM) | At left front side of engine compartment. See Figure. |

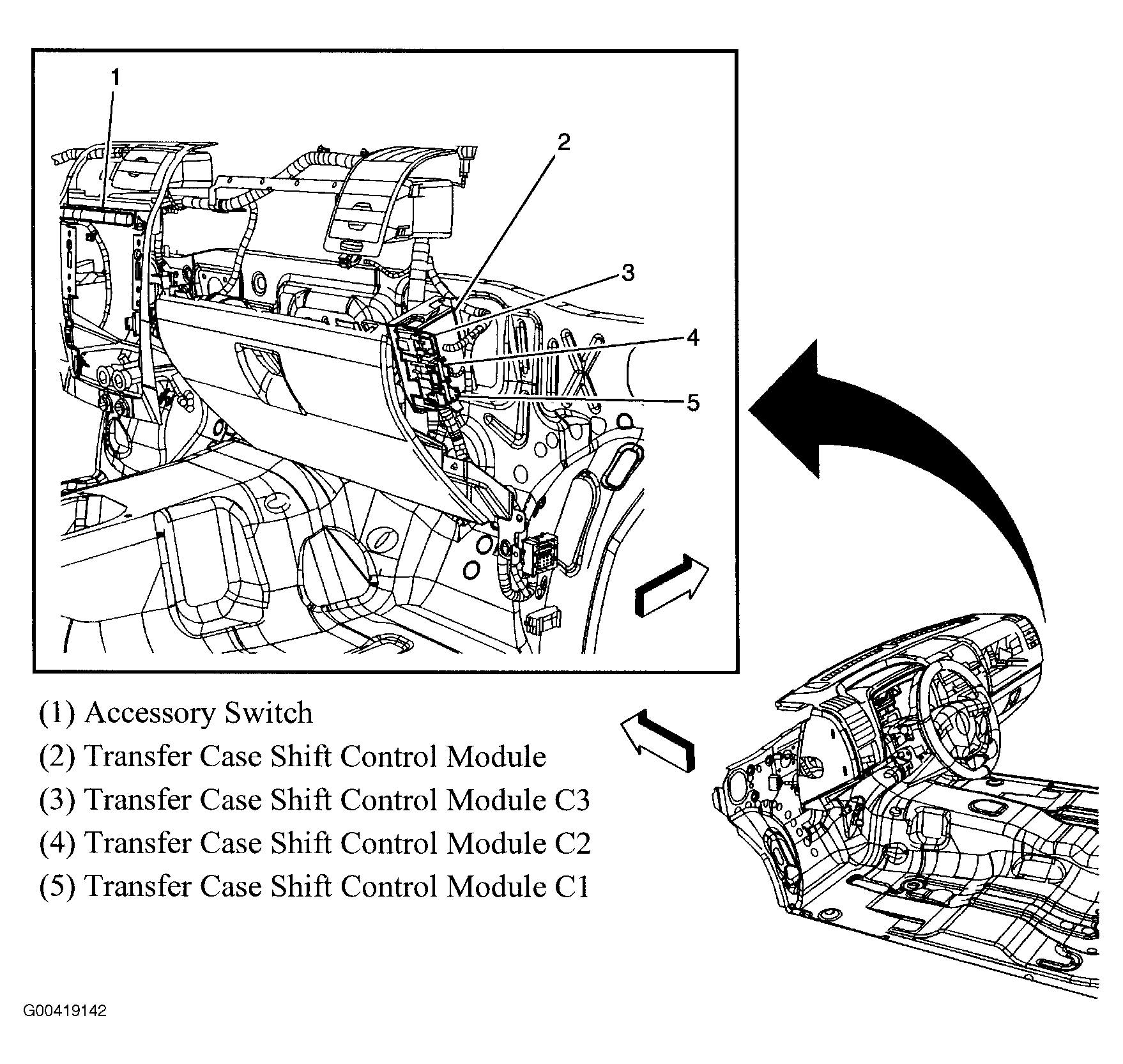

| Transfer Case Shift Control Module | Behind glove box. See Figure. |

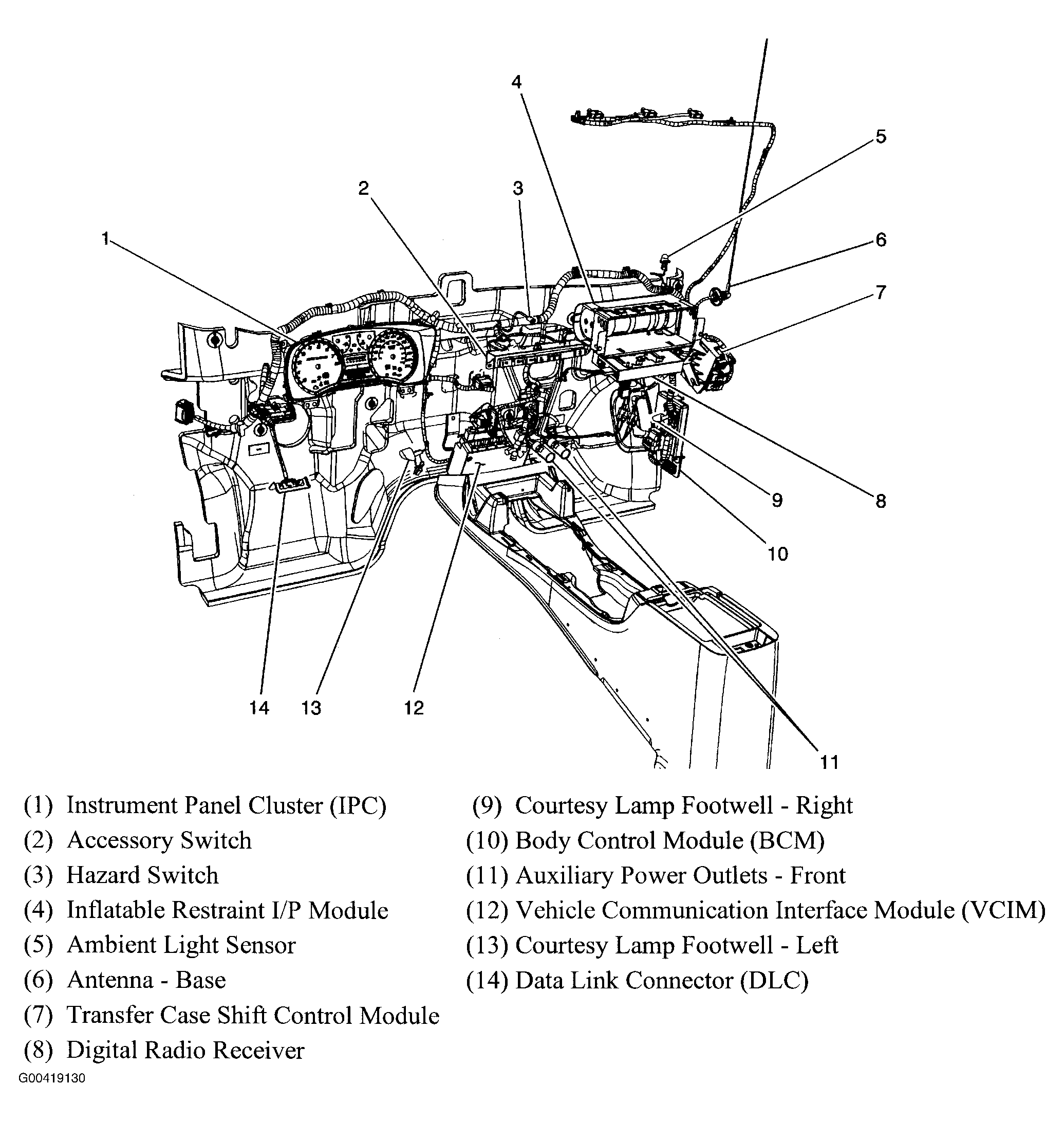

| Vehicle Communication Interface Module (VCIM) | Center of dash below HVAC control head. See Figure. |
