Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| S101 | In dealer installed off road harness, 1.5cm (5.9in) from roof lamps relay, near master cylinder. |
| S102 | In dealer installed off road harness, 1.5cm (5.9in) from roof lamps relay, near master cylinder. |
| S103 | In engine compartment harness, near grille lamps relay, by master cylinder. |
| S104 | In dealer installed grille lamps off road harness, near left side grille lamp connector. |
| S105 | In dealer installed grille lamps off road harness, near left side grille lamp connector. |
| S109 | In forward lamp harness, approximately 43 cm (17 in) from C115. See Figure. |
| S110 | In body harness near EBCM, approximately 7.5 cm (3 in) back from EBCM. See Figure. |
| S112 | In forward lamp harness, near left upper radiator support, approximately 48.5 cm (19.1 in) from C115. See Figure. |
| S120 | In forward lamp harness, near center point of top of radiator, approximately 58 cm (22.8 in) from C115. See Figure. |
| S134 | In forward lamp harness, approximately 15 cm (5.9 in) from C115. See Figure. |
| S141 | In body harness, approximately 5 cm (0.2 in) before breakout to EBCM. See Figure. |
| S143 | In body harness, approximately 2 cm (0.8 in) before breakout to C125. See Figure. |
| S185 | In forward lamp harness, approximately 25 cm (9.8 in) from C115. See Figure. |

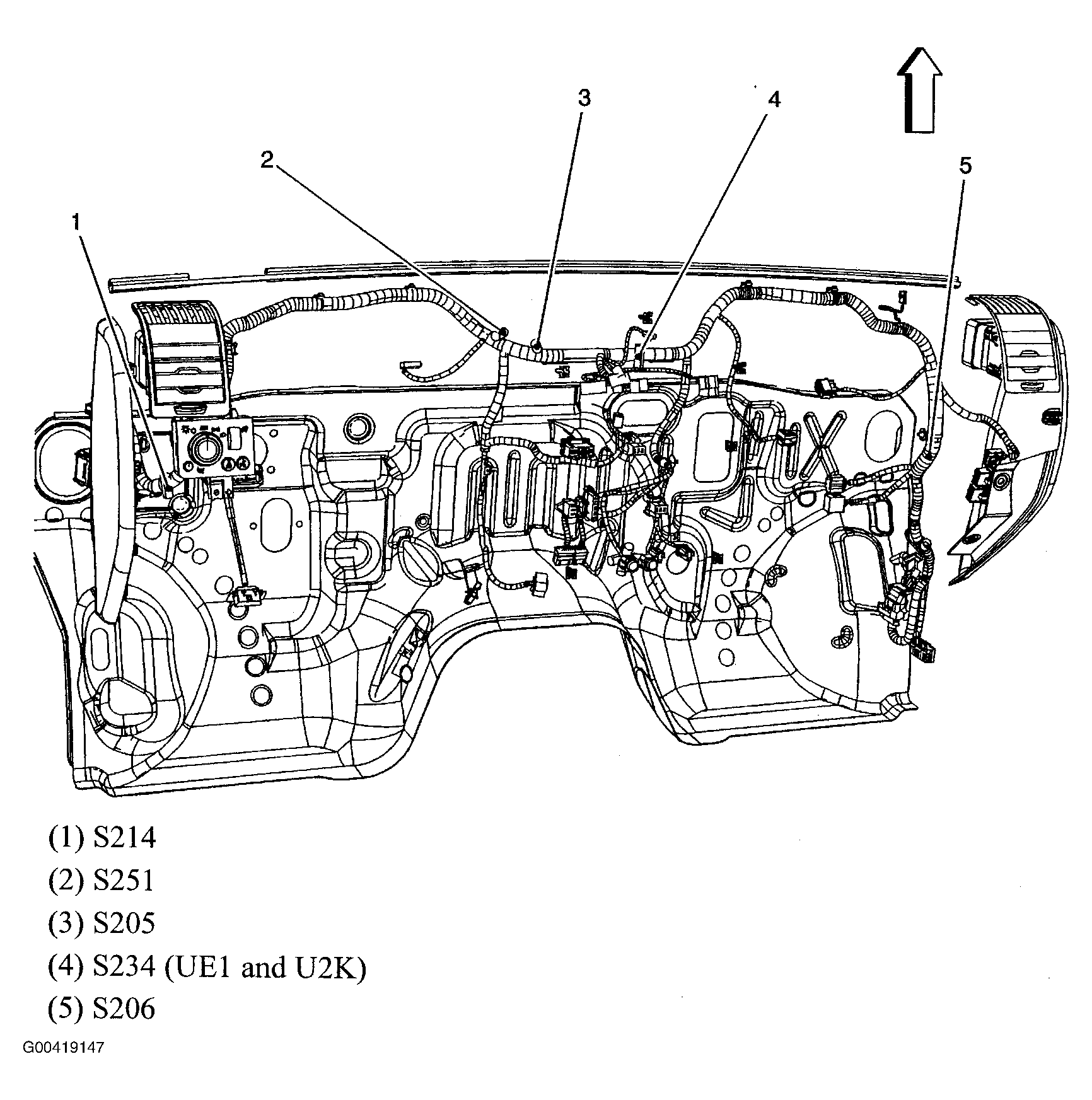

| S205 | In I/P harness, approximately 5 cm (2 in) right of breakout to left footwell lamp. See Figure. |
| S206 | In I/P harness, approximately 7 cm (2.8 in) right of breakout to right footwell lamp. See Figure. |
| S209 | In body harness, approximately 6 cm (2.4 in) to right of stop lamp switch breakout in main harness. See Figure. |
| S210 | In body harness, approximately 16 cm (6.3 in) before left front tweeter breakout. See Figure. |
| S213 | In body harness, approximately 11 cm (4.3 in) to right of stop lamp switch breakout in main harness. See Figure. |
| S214 | In I/P harness, approximately 2.5 cm (1 in) to right of data link connector in main bundle. See Figure. |
| S215 | In body harness, approximately 14 cm (5.5 in) to right of stop lamp switch breakout in main harness. See Figure. |
| S220 | In blower motor resistor jumper harness, approximately 15 cm (6 in) from C203. See Figure. |
| S224 | In body harness, approximately 15 cm (5.9 in) from main harness into breakout to sunroof. See Figure. |
| S230 | In HVAC harness, approximately 10 cm (3.9 in) back from right air temperature actuator connector. See Figure. |
| S234 | In I/P harness center dash area, approximately 5 cm (2 in) left of breakouts to HVAC in main bundle. See Figure. |
| S240 | In HVAC harness, approximately 28.5 cm (11.2 in) back from right air temperature actuator connector. See Figure. |
| S244 | In body harness behind passenger side dash area, approximately 25 cm (9.8 in) before breakout to right front door. See Figure. |
| S245 | In body harness left front kick panel area, approximately 26 cm (10.2 in) rearward of left body pass through. |
| S247 | In body harness behind passenger side dash area, approximately 5 cm (2 in) before breakout to right front door. See Figure. |
| S250 | In HVAC harness, approximately 13.5 cm (5.3 in) before breakout to evaporator temperature sensor. See Figure. |
| S251 | In I/P harness, approximately 0.5 cm (0.2 in) right of breakout to left footwell lamp. See Figure. |
| S260 | In HVAC harness, approximately 23.5 cm (9.3 in) back from right air temperature actuator connector. See Figure. |
| S264 | In body harness, approximately 24.5 cm (9.6 in) rearward of body pass through in breakout to left door. |
| S292 | In body harness right kick panel area, approximately 3 cm (1.2 in) rearward of breakout to BCM. See Figure. |
| S294 | In body harness, approximately 3 cm (1.2 in) to left of park brake switch breakout. See Figure. |
| S295 | In body harness, approximately 3 cm (1.2 in) to right of park brake switch breakout. See Figure. |
| S300 | In body harness, approximately 20 cm (7.9 in) forward of left rocker channel cover. |
| S301 | In dealer installed off road harness, under roof-mounted light bar near drivers side lamp connector. |
| S302 | In dealer installed off road harness, under roof-mounted light bar near drivers side lamp connector. |
| S305 | In body harness under right door sill plate, approximately 18 cm (7 in) from breakout to C204. See Figure. |
| S306 | In driver seat harness in breakout to lumbar adjuster/heater switch. See Figure. |
| S309 | In body harness under left door sill plate, approximately 41 cm (16.1 in) rearward of body pass through in main bundle. |
| S310 | In body harness, approximately 4.5 cm (1.8 in) left of breakout to A/T floor shift control. See Figure. |
| S312 | In driver seat harness, approximately 28.5 cm (11.2 in) back from C307. See Figure. |
| S313 | In passenger seat heater element jumper harness. |
| S314 | In body harness, approximately 44.5 cm (17.5 in) rearward of breakout to left seat belt pretensioner. See Figure. |
| S315 | In body harness, approximately 47 cm (18.5 in) rearward of breakout to right seat belt pretensioner. See Figure. |
| S316 | In passenger seat harness, approximately 5 cm (2 in) before breakout to seat adjuster and lumbar adjuster/heater switches. See Figure. |
| S317 | In passenger seat heater element jumper harness. |
| S318 | In passenger seat heater element jumper harness. |
| S319 | In passenger seat heater element jumper harness. |
| S320 | In body harness rear seat area along sill, approximately 20 cm (7.9 in) rearward of breakout to G320. See Figure. |
| S321 | In driver seat heater element jumper harness. |
| S322 | In driver seat heater element jumper harness. |
| S323 | In body harness, approximately 13 cm (5.1 in) right of breakout to G310. See Figure. |
| S324 | In driver seat heater element jumper harness. |
| S325 | In driver seat heater element jumper harness. |

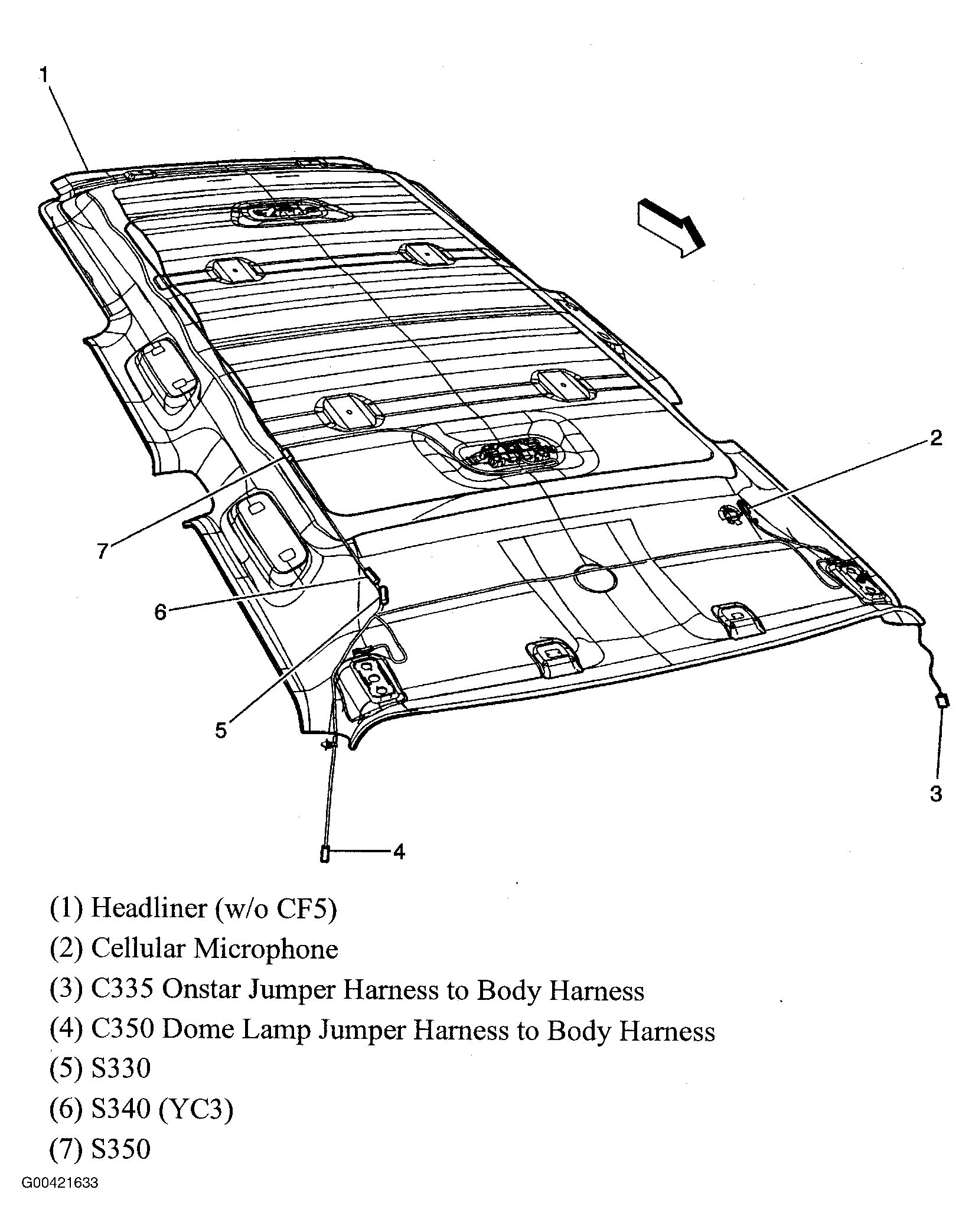

| S330 | In dome lamp jumper harness, approximately 5 cm (2 in) before breakout to right sunshade. See Figure. |
| S340 | In dome lamp jumper harness, approximately 10 cm (3.9 in) before breakout to right sunshade. See Figure. |
| S341 | In passenger seat harness, approximately 10 cm (3.9 in) before breakout to seat adjuster and lumbar adjuster/heater switches. See Figure. |

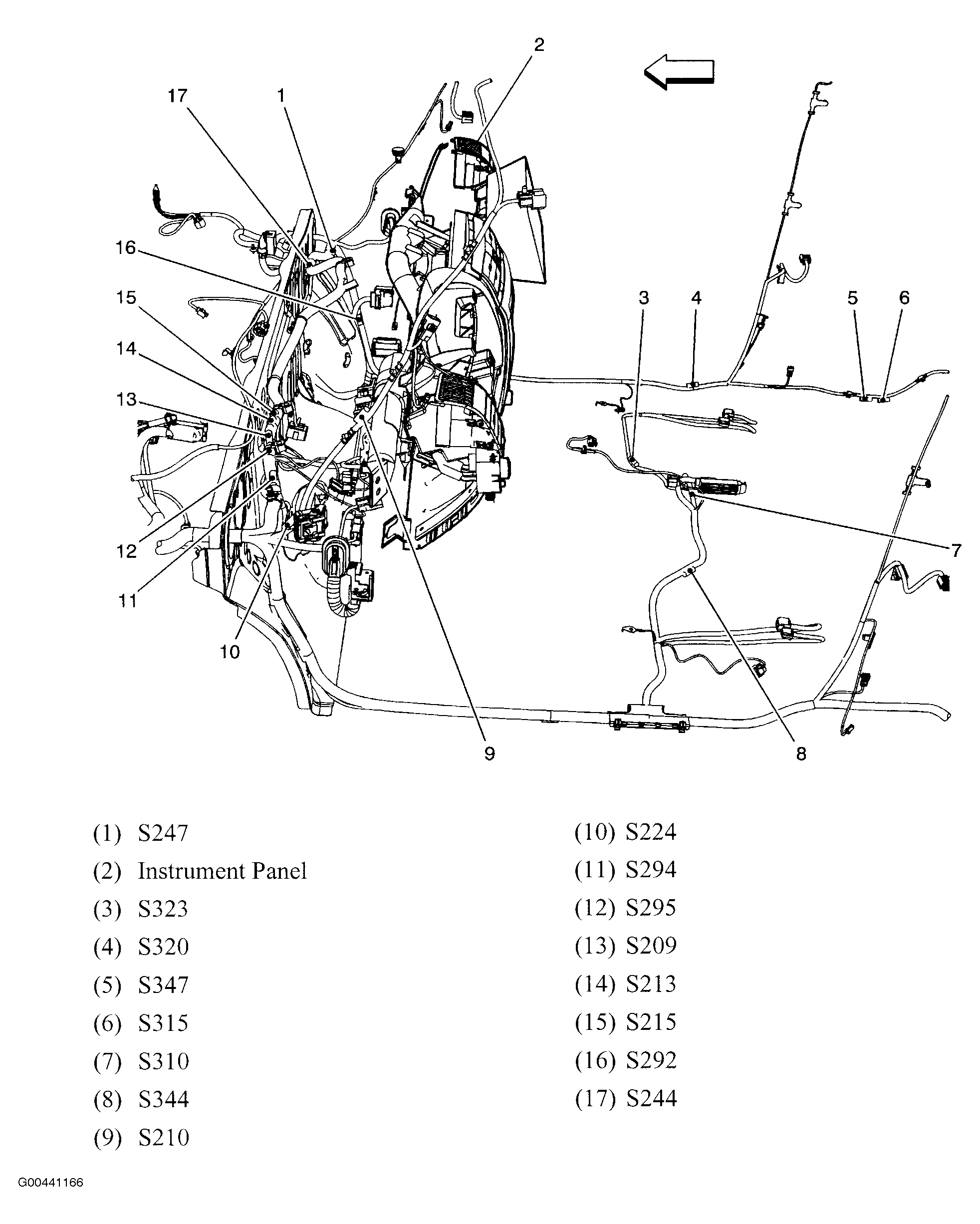

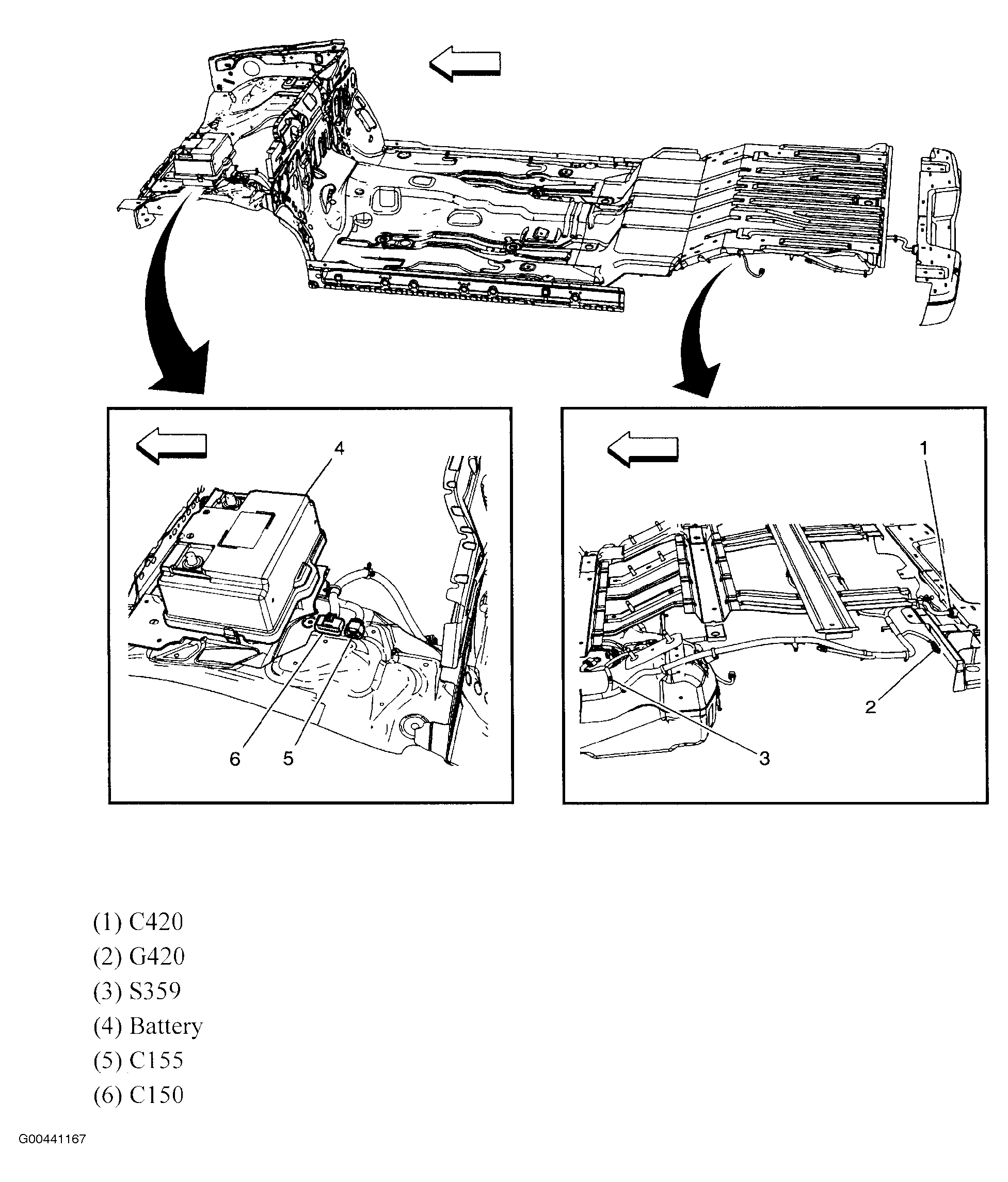

| S344 | In body harness, approximately 20 cm (7 in) to left of SDM breakout. See Figure. |
| S347 | In body harness, approximately 42 cm (16.5 in) rearward of breakout to right seat belt pretensioner. See Figure. |
| S350 | In dome lamp jumper harness, approximately 5 cm (2 in) before breakout to dome/reading lamp. See Figure. |
| S359 | In chassis harness, approximately 22.5 cm (8.9 in) from fuel pump and sender assembly connector. See Figure. |

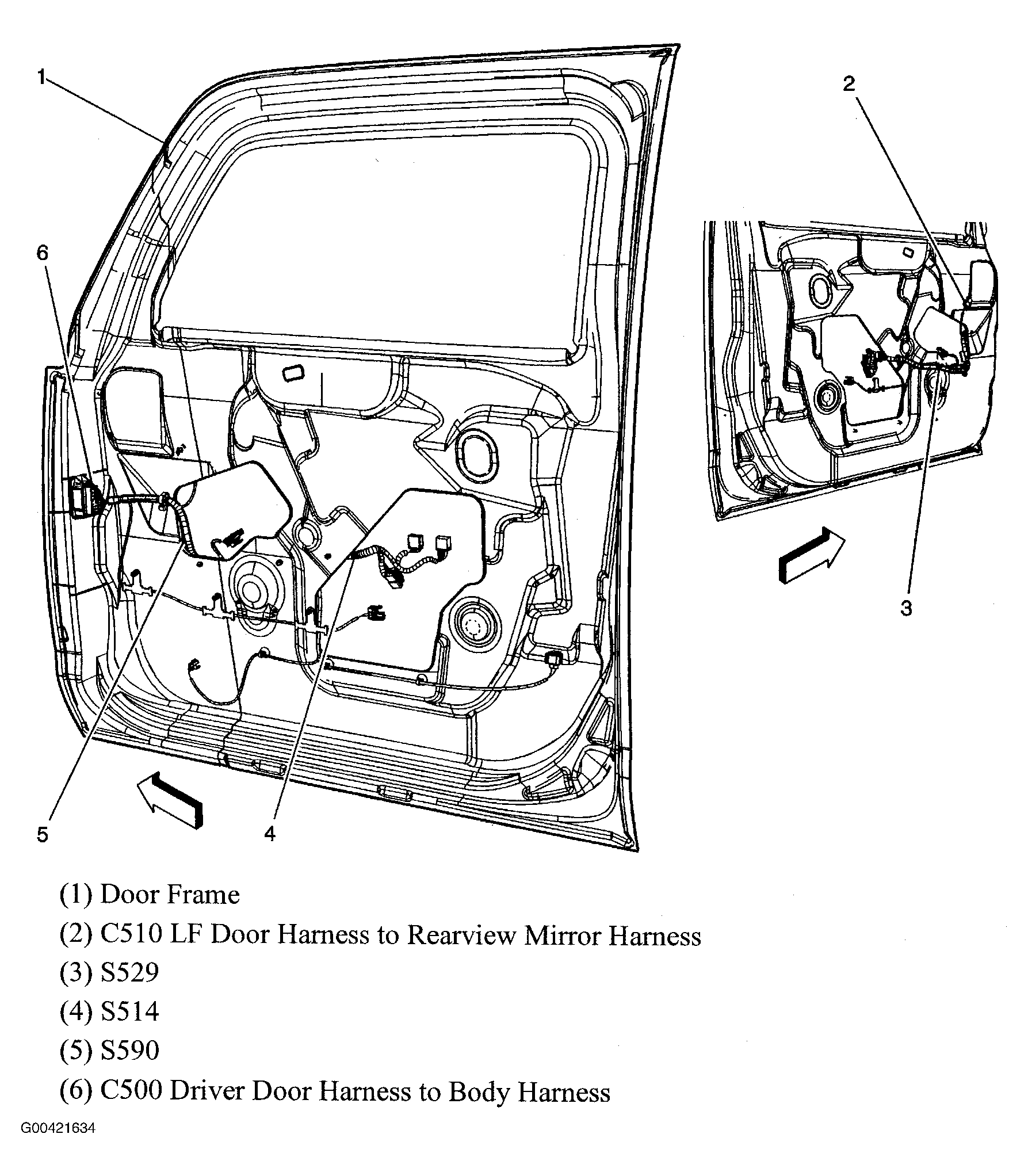

| S514 | In driver door harness, approximately 6.5 cm (2.6 in) before breakouts to door lock and window switch. See Figure. |
| S529 | In driver door harness, approximately 7.5 cm (3 in) before breakout to power window motor. See Figure. |
| S590 | In driver door harness, approximately 7.5 cm (3 in) before breakout to OSRVM. See Figure. |
| S900 | In endgate harness, approximately 19.5 cm (7.7 in) rearward of endgate grommet. See Figure. |
