Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

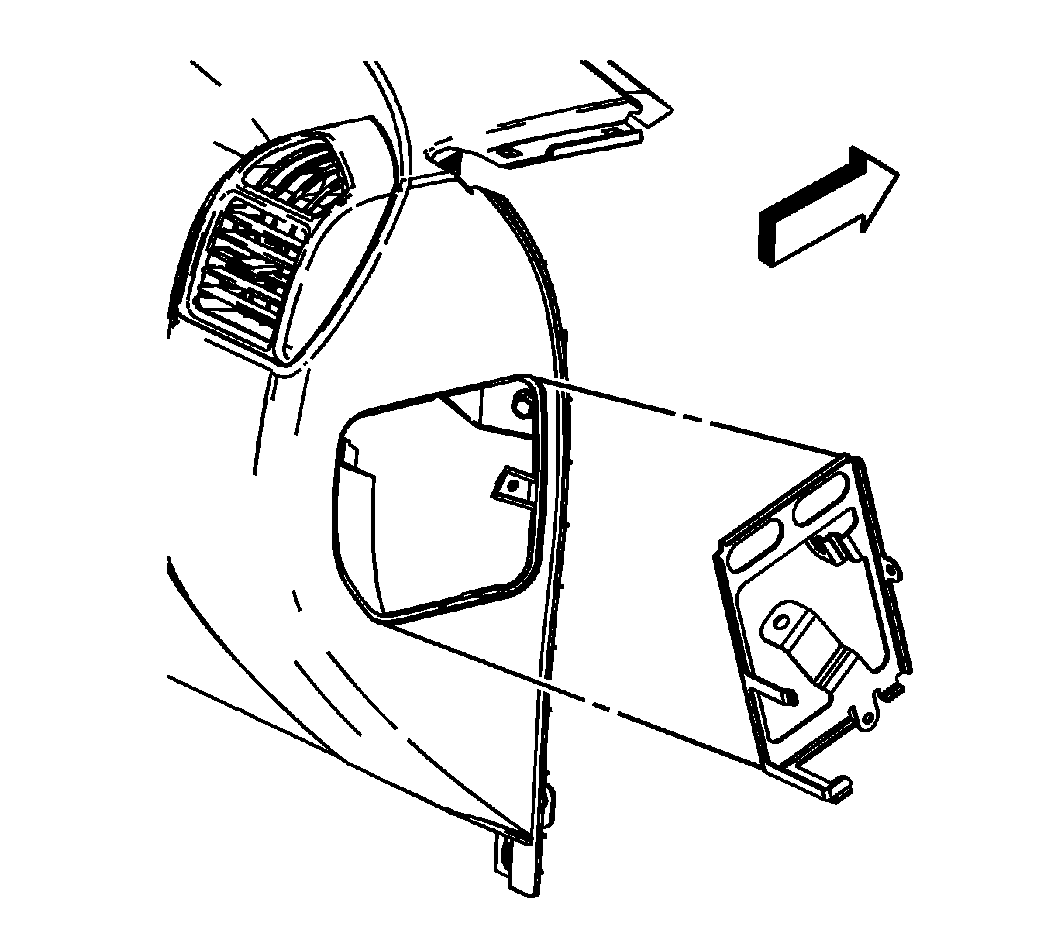

Fig 1: View Of Navigation Control Processor Bracket

Courtesy of GENERAL MOTORS CORP.

Install the bracket to the I/P structure.

NOTE: Refer to Fastener Notice in Cautions and Notices.

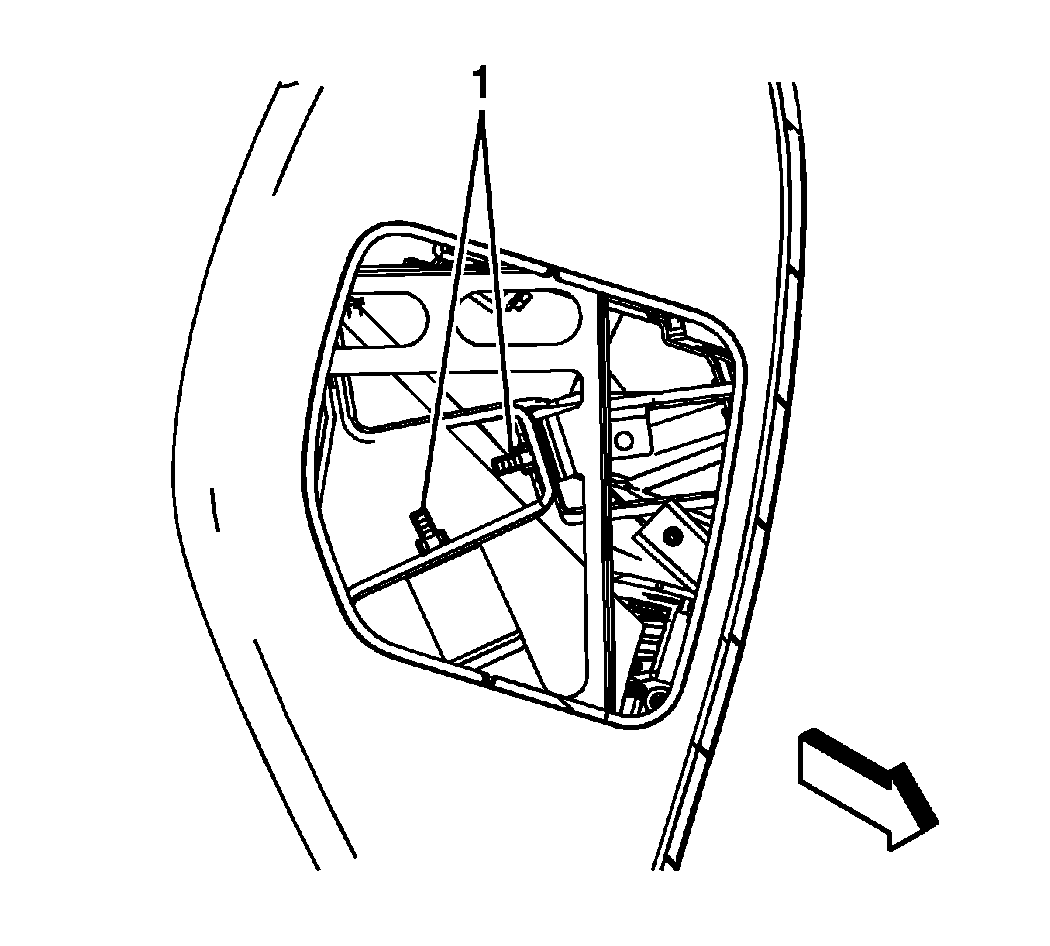

Fig 2: View Of Navigation Control Processor Bracket Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

Install the nuts (1) retaining the bracket to I/P structure.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).
Install the VCIM. Refer to Communication Interface Module Replacement .
