Computer/Integrating Systems Component Views
WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

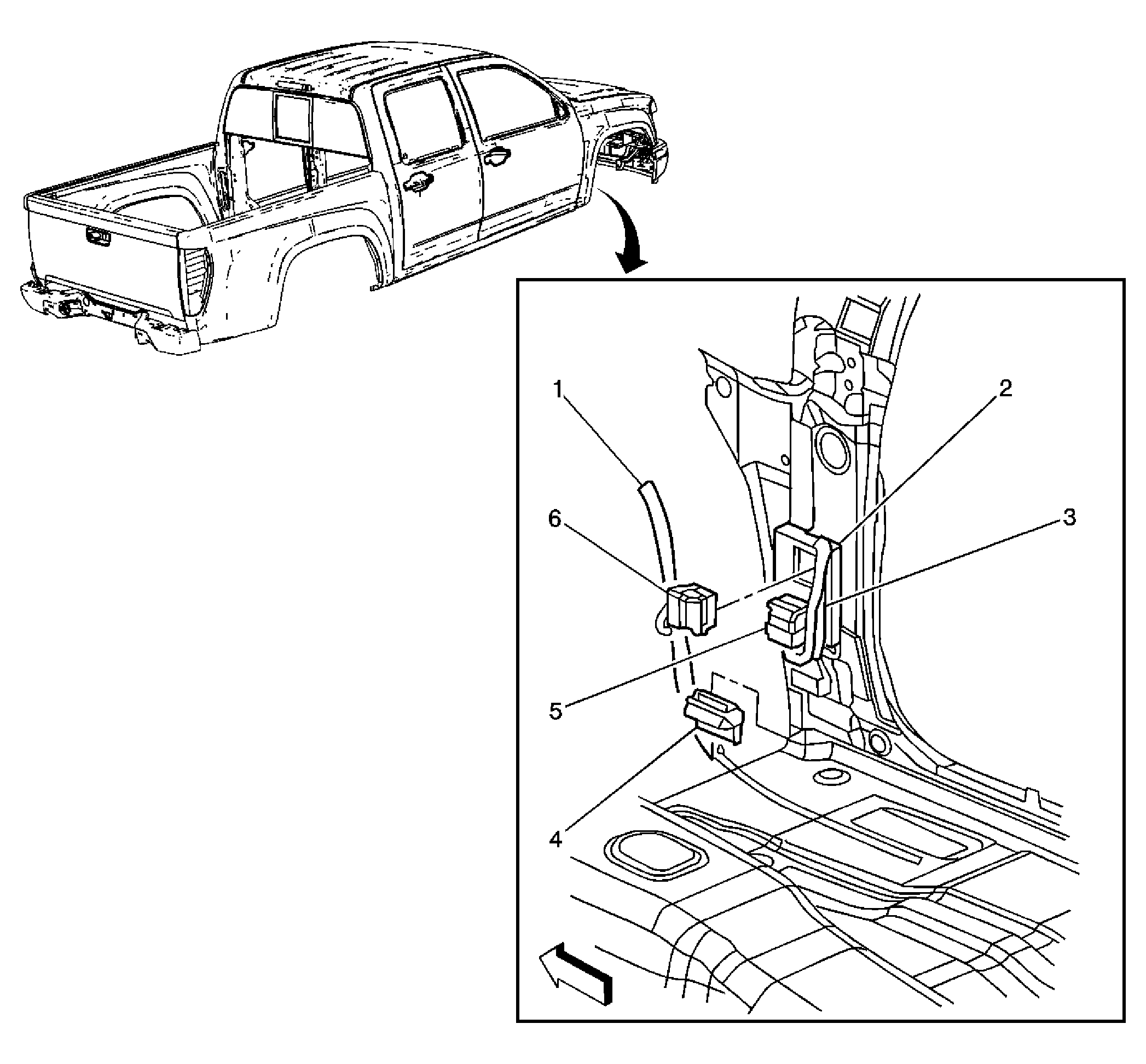

| Callout |
Component Name |
| 1 |
Body Harness |
| 2 |
I/P Harness |
| 3 |
Body Control Module (BCM) |
| 4 |
C201 |
| 5 |
Body Control Module (BCM) C2 Connector |
| 6 |
Body Control Module (BCM) C1 Connector |
Courtesy of GENERAL MOTORS CORP.

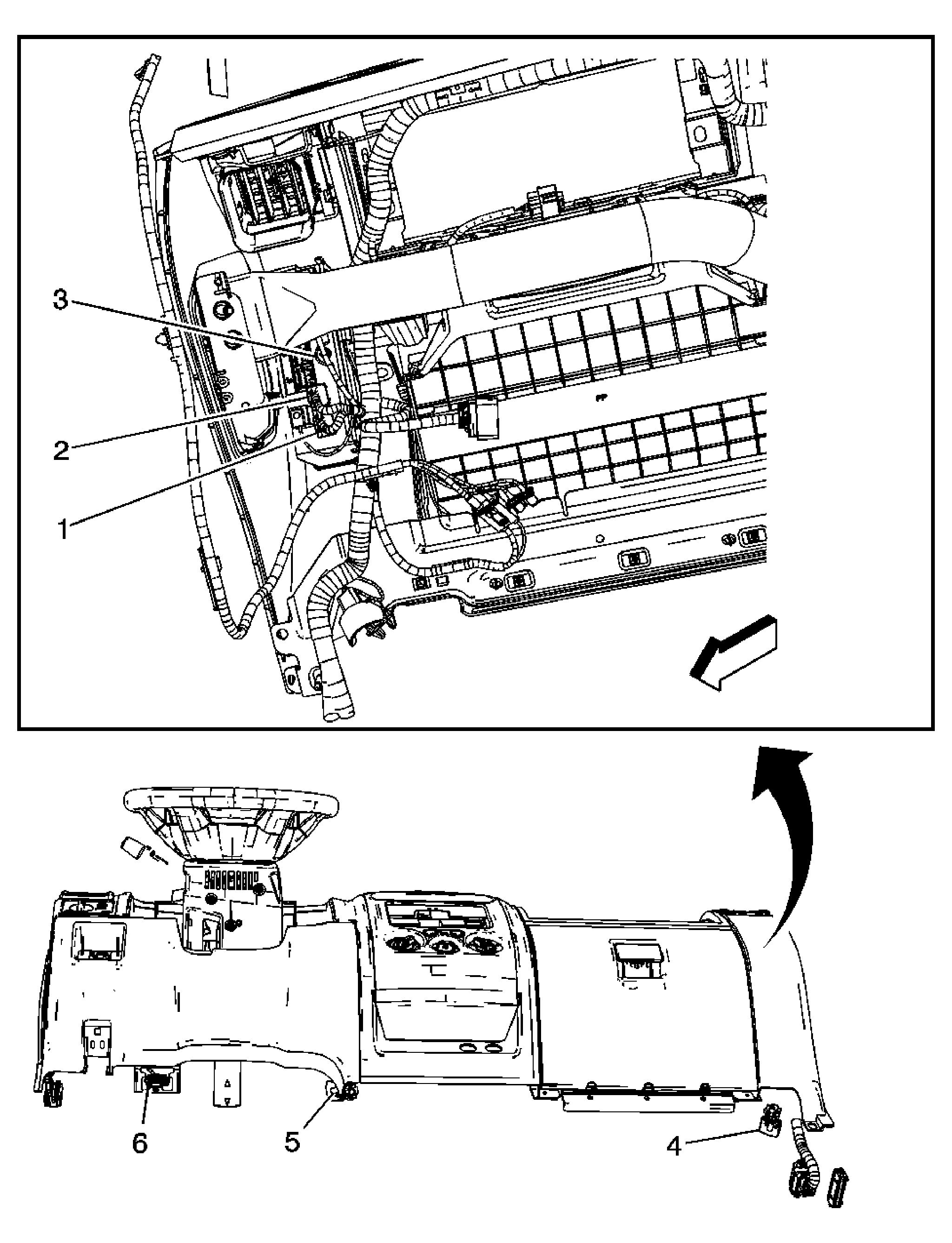

| Callout |
Component Name |
| 1 |
Vehicle Communications Interface Module (VCIM) C1 Connector (UE1) |
| 2 |
Vehicle Communications Interface Module (VCIM) C2 Connector (UE1) |
| 3 |
Vehicle Communications Interface Module (VCIM) |
| 4 |
Courtesy Lamp - Footwell Right |
| 5 |
Courtesy Lamp - Footwell Left |
| 6 |
Data Link Connector (DLC) |
