Front Toe Adjustment

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

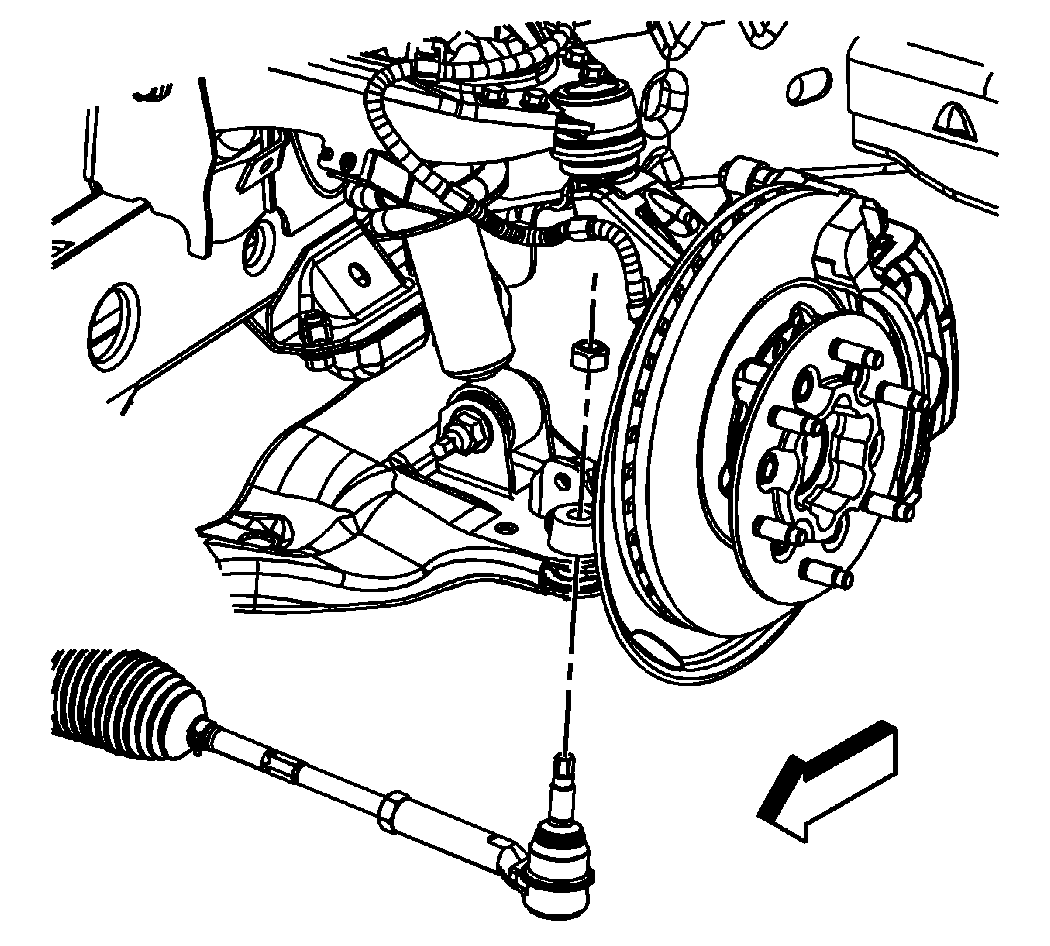

Fig 1: View Of Tie Rod Jam Nut

Courtesy of GENERAL MOTORS CORP.

Loosen the jam nut on the tie rod.
Rotate the inner tie rod to the required toe specification setting. Refer to Wheel Alignment Specifications .

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the jam nut on the tie rod.
Tighten: Tighten the tie rod jam to 70 N.m (52 lb ft).
Check the toe setting after tightening.
Re-adjust the toe setting if necessary.
