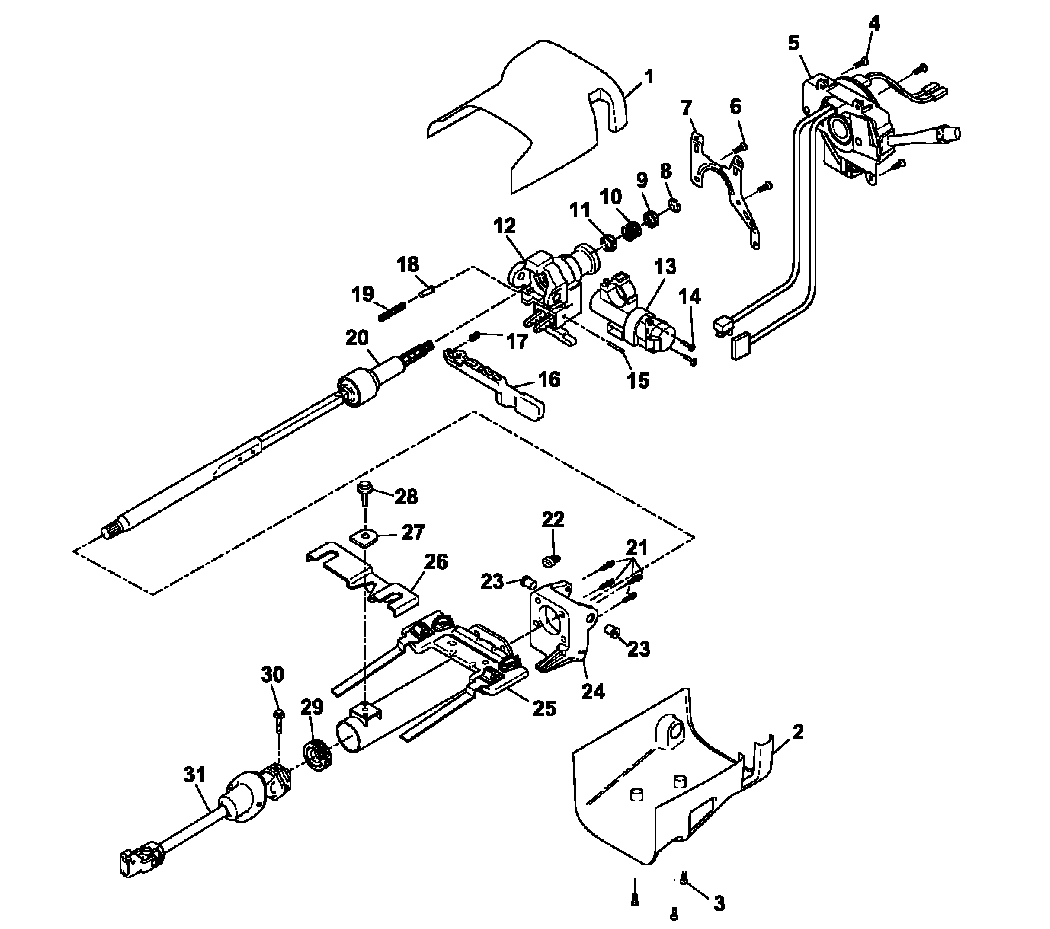

| 1 |
Upper Trim Cover |
| 2 |
Lower Trim Cover |
| 3 |
Shoulder Tapping Screws |
| 4 |
Pan Head Tapping Screws |
| 5 |
Multifunction Switch Assembly |
| 6 |
Washer Head Screws |
| 7 |
Switch Mounting Plate |
| 8 |
Bearing Retainer |
| 9 |
Spring Retainer |
| 10 |
Upper Bearing Spring |
| 11 |
Inner Race Seat |
| 12 |
Steering Column Housing Assembly |
| 13 |
Ignition Switch and Lock Housing Assembly |
| 14 |
Set Screws |
| 15 |
Release Lever Pin |
| 16 |
Lever Spring Assembly |
| 17 |
Release Lever Spring |
| 18 |
Spring Guide |
| 19 |
Tilt Spring |
| 20 |
Steering Shaft Assembly |
| 21 |
Torque Head Screws |
| 22 |
Tilt Bumper |
| 23 |
Pivot Pin |
| 23 |
Pivot Pins |
| 24 |
Steering Column Support Assembly |
| 25 |
Bracket and Upper Jacket Assembly |
| 26 |
Lower Column Support Bracket |
| 27 |
Lower Bracket Retainer Spacer |
| 28 |
Washer and Bolt Assembly |
| 29 |
Lower Shaft Bearing Assembly |
| 30 |
Bolt and Retainer Assembly |
| 31 |
Intermediate Steering Shaft Assembly |
