Installation Procedure

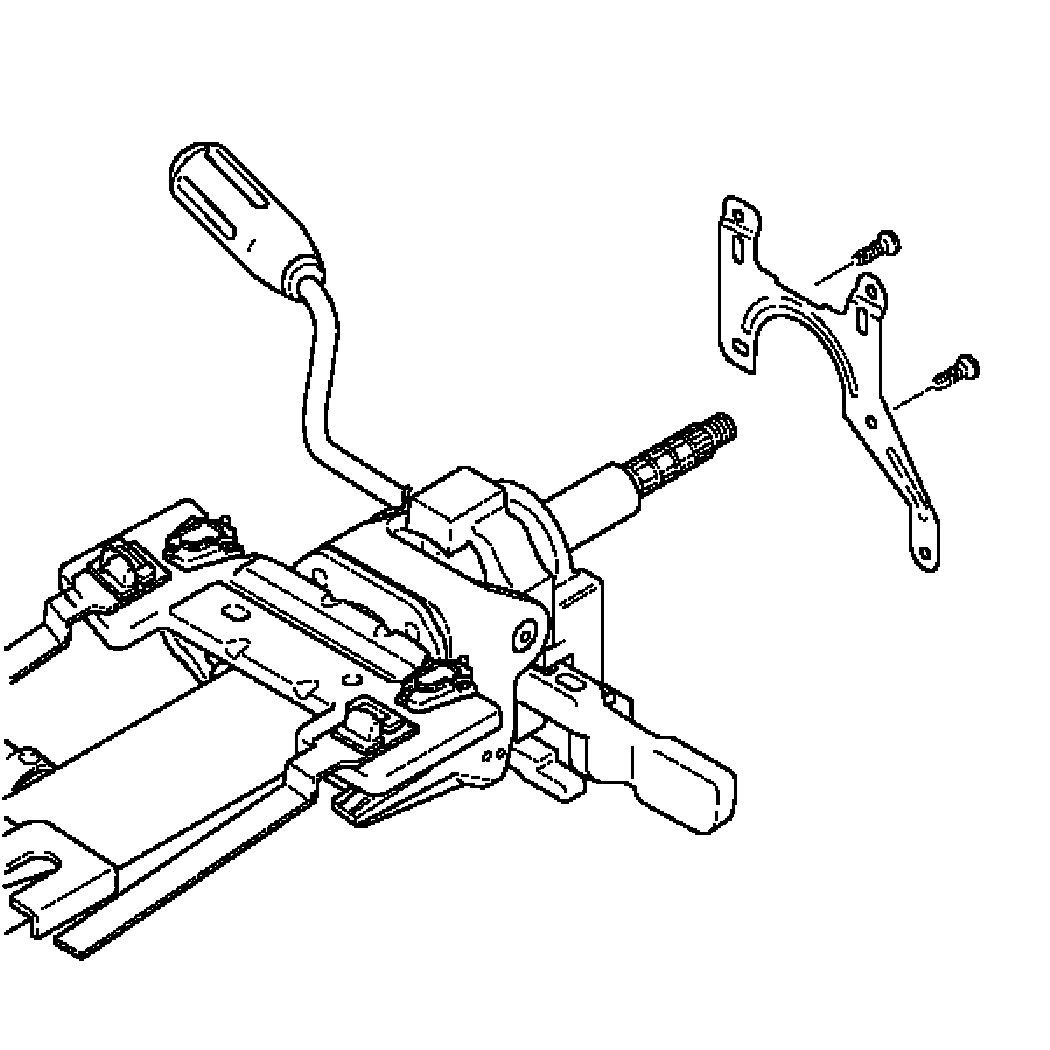

    Fig 1: View Of Multifunction Turn Signal Switch Mounting Plate
    GM1492306Courtesy of GENERAL MOTORS CORP.
  1. Install the multifunction turn signal switch housing.
    2. NOTE: Refer to Fastener Notice .
  2. Install the multifunction turn signal switch housing bolts.

    Tighten:  Tighten the bolts to 2.5 N.m (22 lb in).

  3. Install the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement .
