Installation Procedure

    Fig 1: Tilting Column To Up Position
    GM293245Courtesy of GENERAL MOTORS CORP.
  1. Tilt the steering column to the UP position.

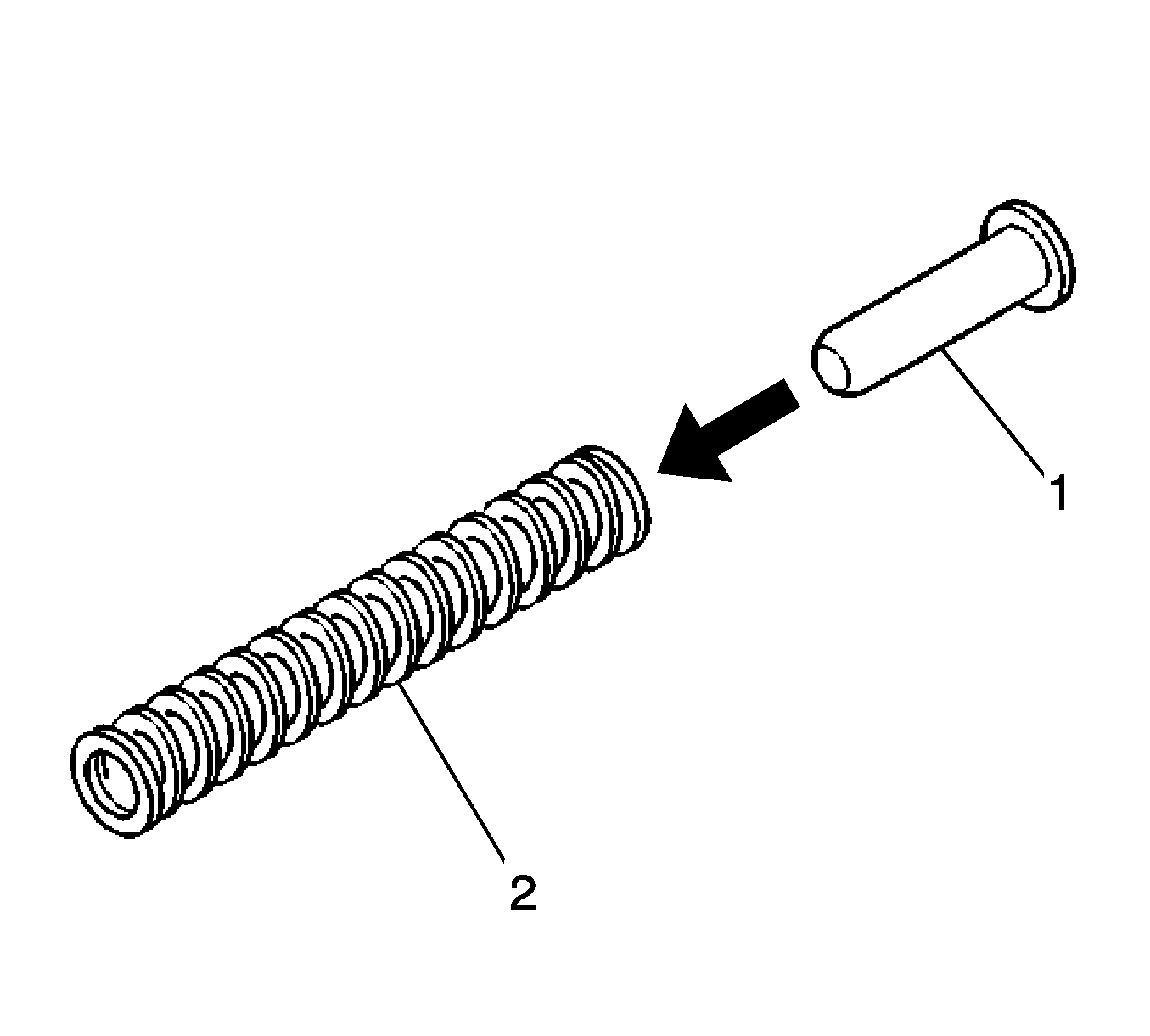

    2. Fig 2: View Of Spring Guide And Tilt Spring
    GM293250Courtesy of GENERAL MOTORS CORP.
  2. Install the spring guide into the tilt spring.
    3. Fig 3: Installing Tilt Spring Onto The Steering Column Support Assembly
    GM293251Courtesy of GENERAL MOTORS CORP.
  3. Install the tilt spring (1) onto the steering column housing support (2) and onto the steering column tilt head housing by using the following procedure:
    1. Install the tilt spring (1) onto the steering column tilt head housing.
    2. Install the tilt spring (1) onto the post on the steering column housing support (2).
  4. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  5. Enable the SIR system. Refer to SIR Disabling and Enabling .
