Body Control Module

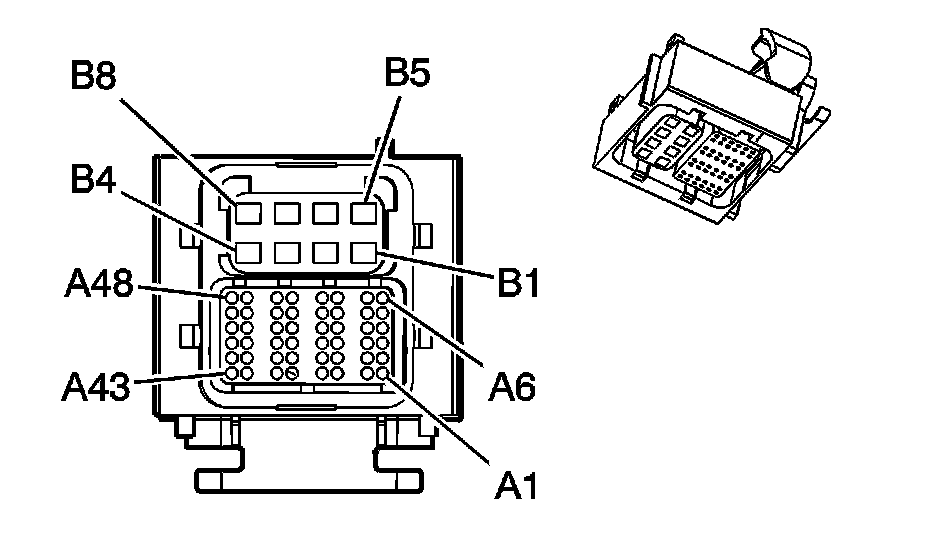

Data Communication Connector End Views

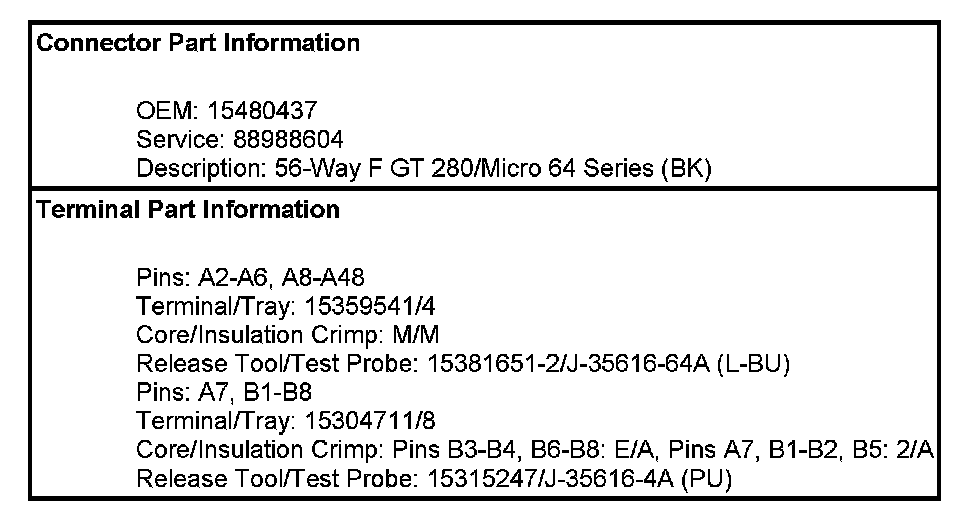

Body Control Module (BCM) C1

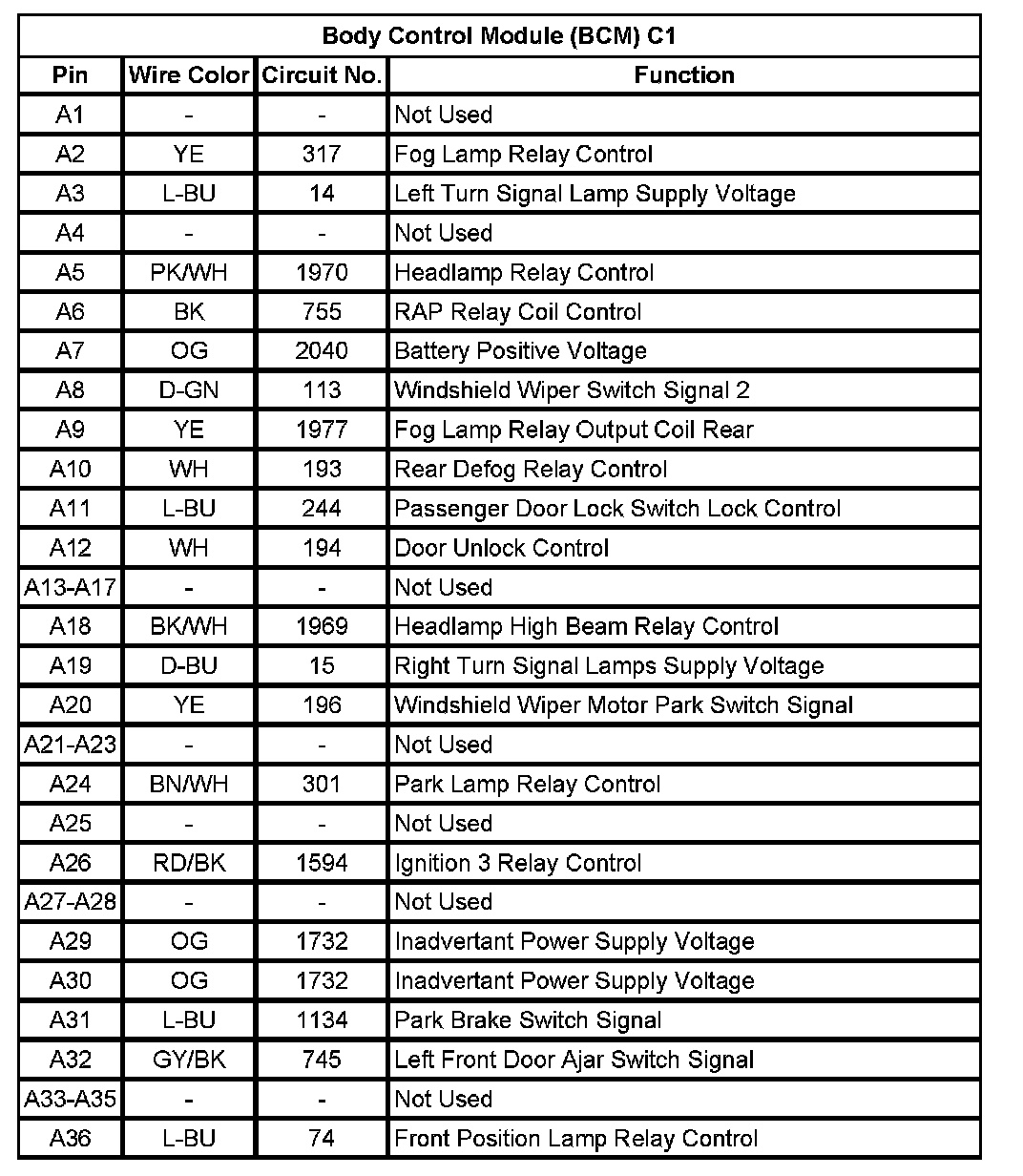

Body Control Module (BCM) C1 (Pin A1 To A36):

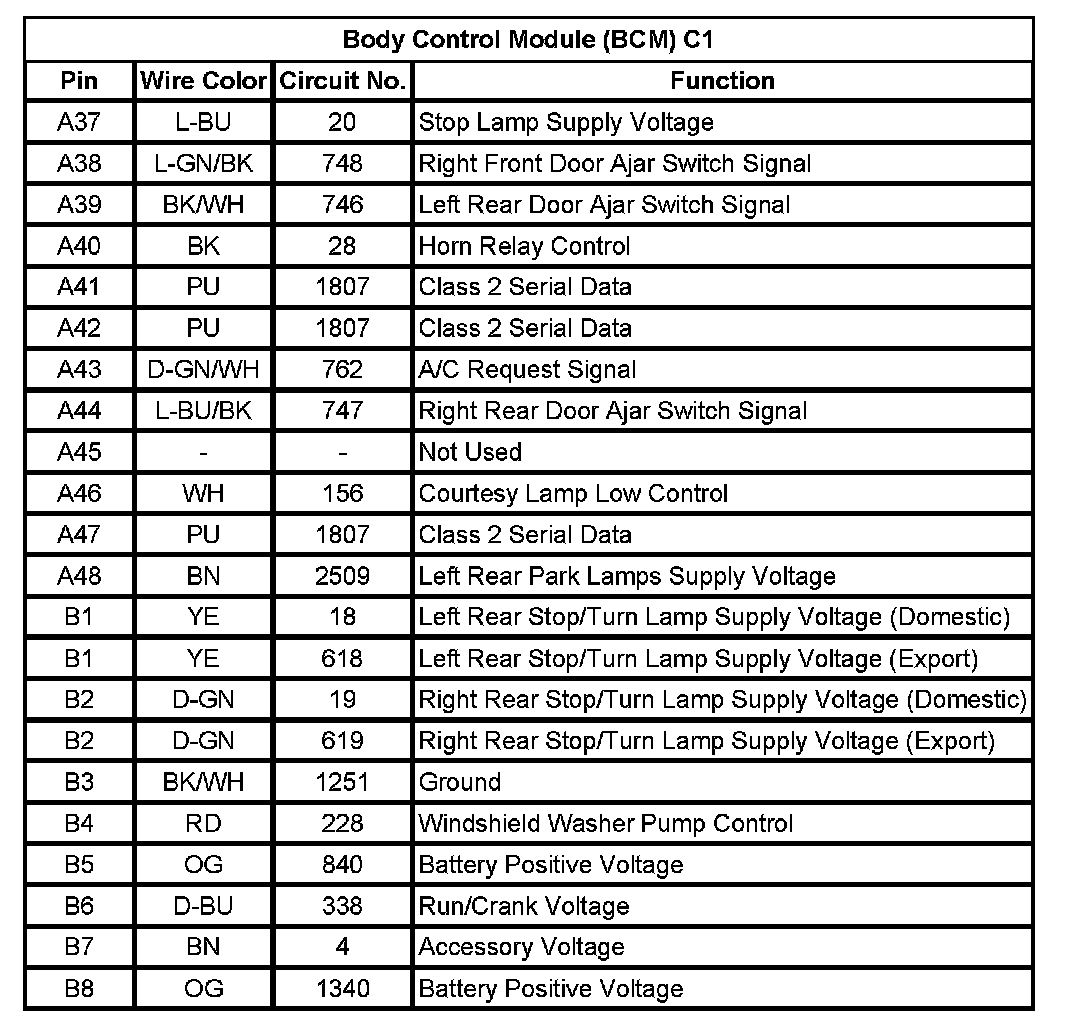

Body Control Module (BCM) C1 (Pin A37 To B8):

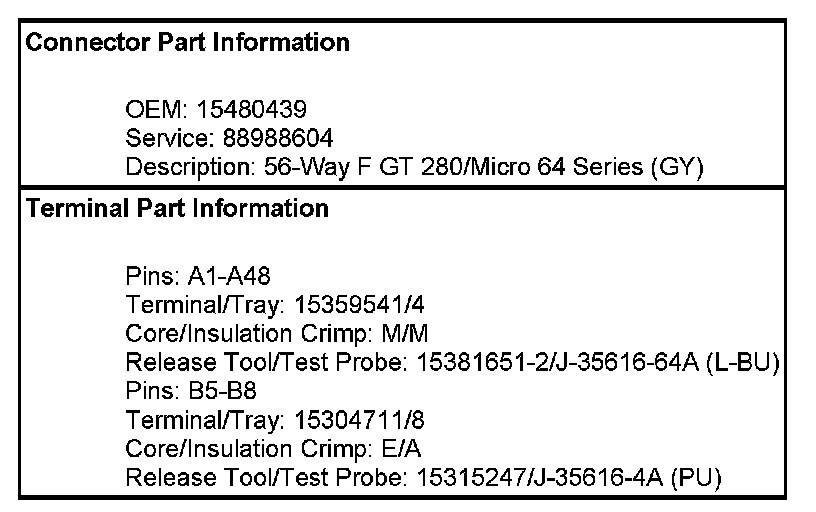

Body Control Module (BCM) C2

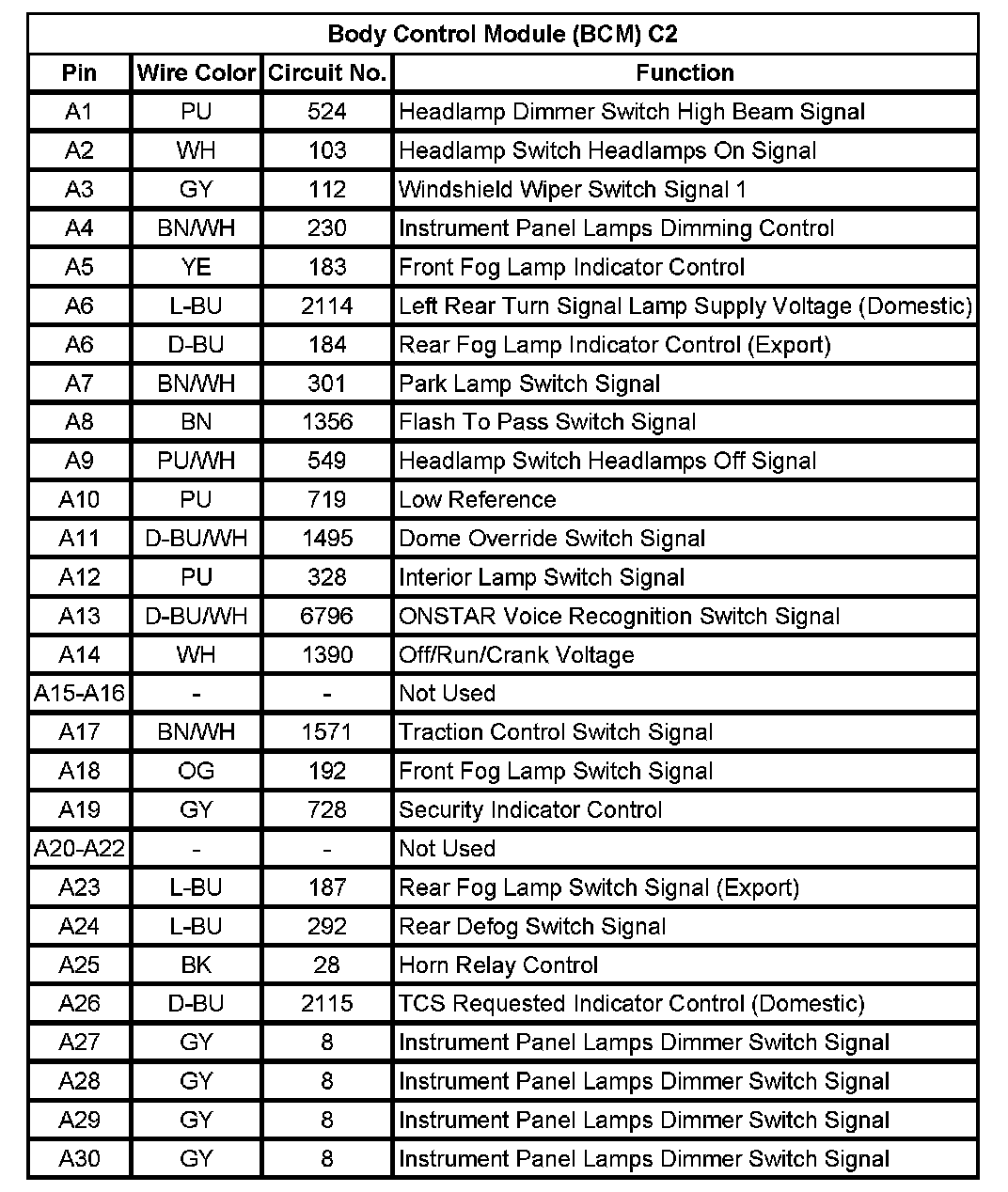

Body Control Module (BCM) C2 (Pin A1 To A30):

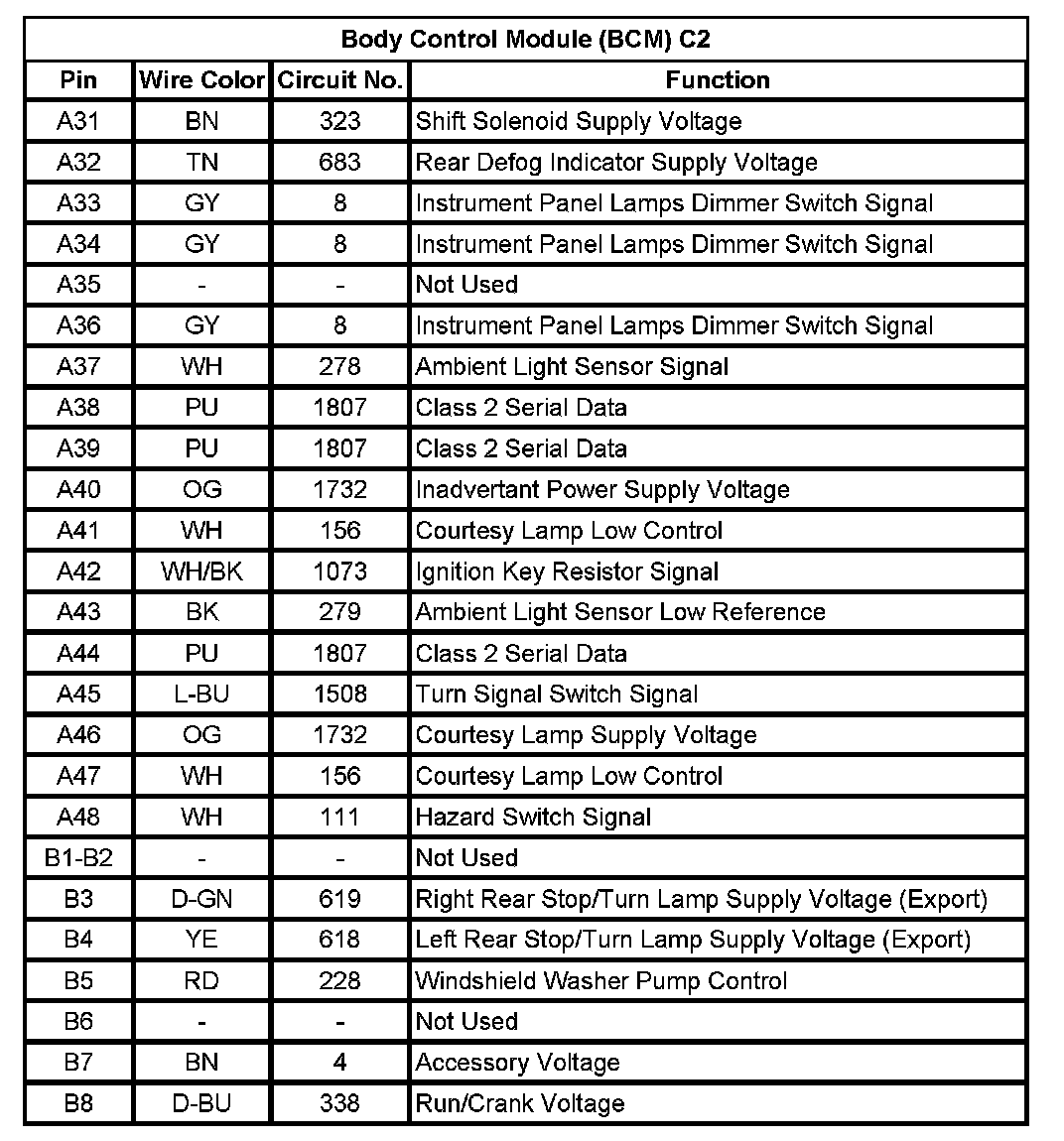

Body Control Module (BCM) C2 (Pin A31 To B8):
