Brake Lamp

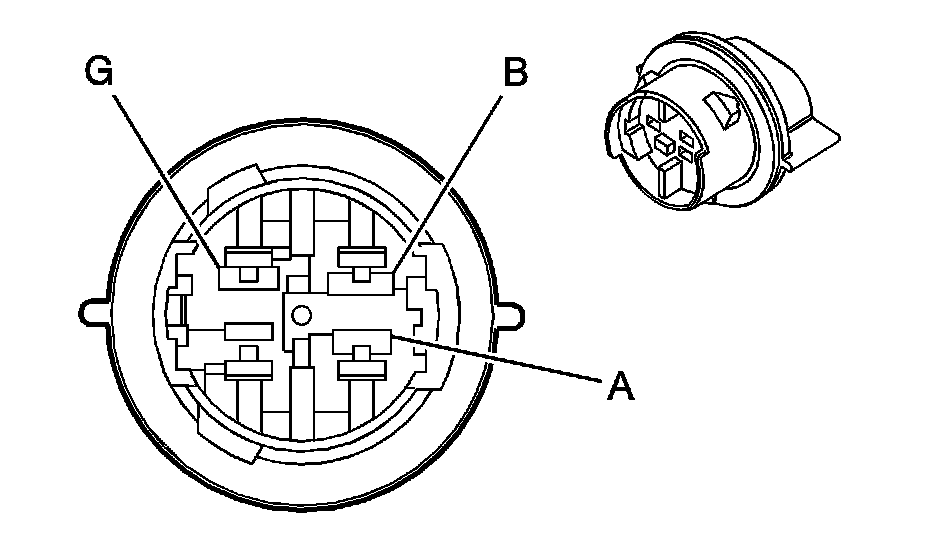

Lighting Systems Connector End Views

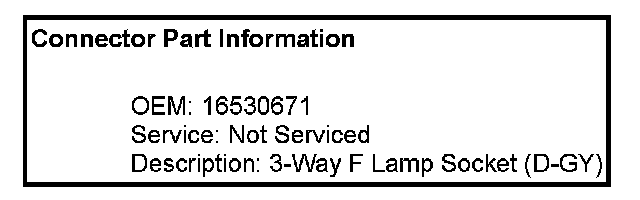

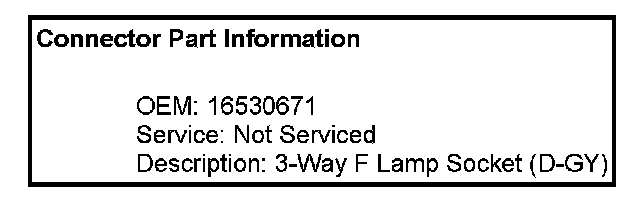

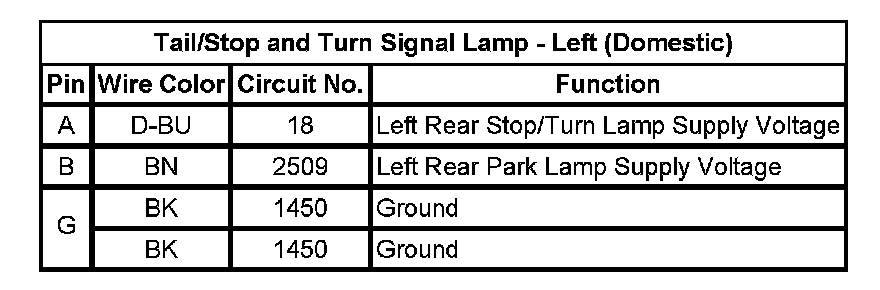

Tail/Stop and Turn Signal Lamp - Left (Domestic)

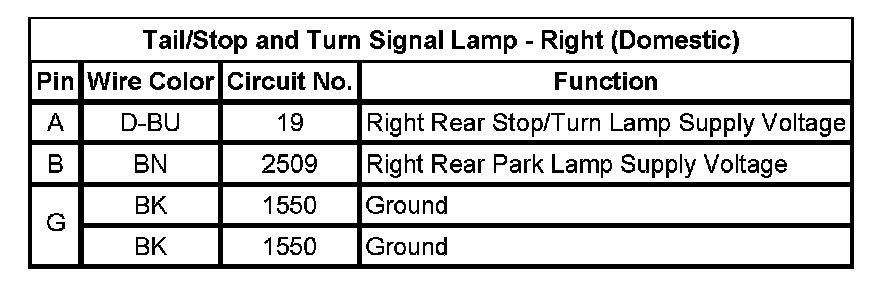

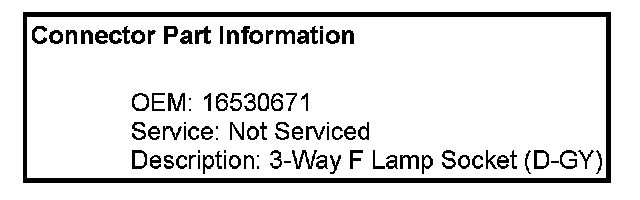

Tail/Stop and Turn Signal Lamp - Right (Domestic)

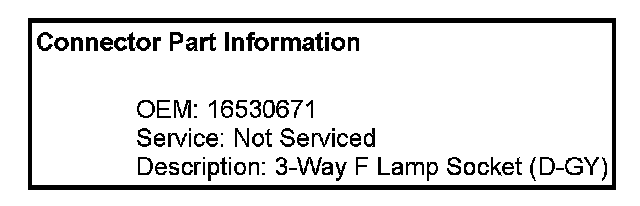

Tail/Stop Lamp - Left (Export)

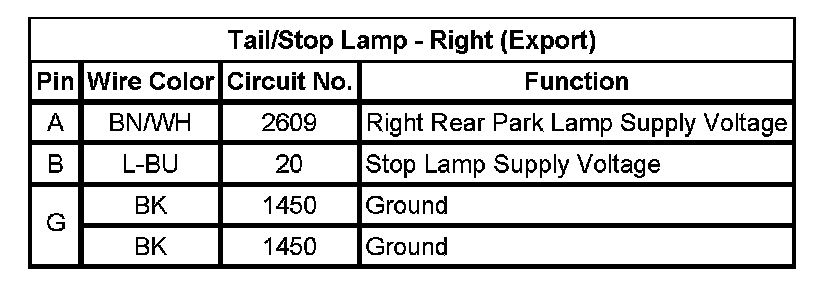

Tail/Stop Lamp - Right (Export)
