Control Module HVAC
HVAC Connector End Views

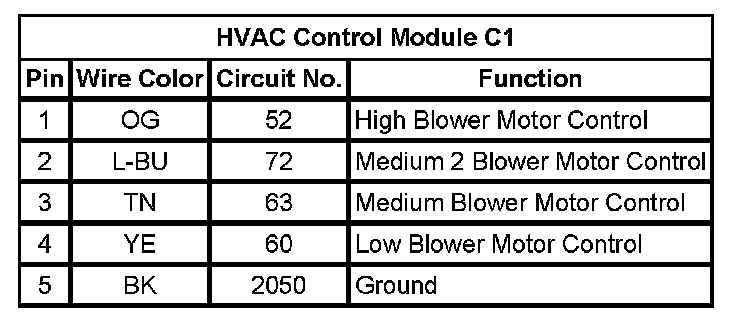

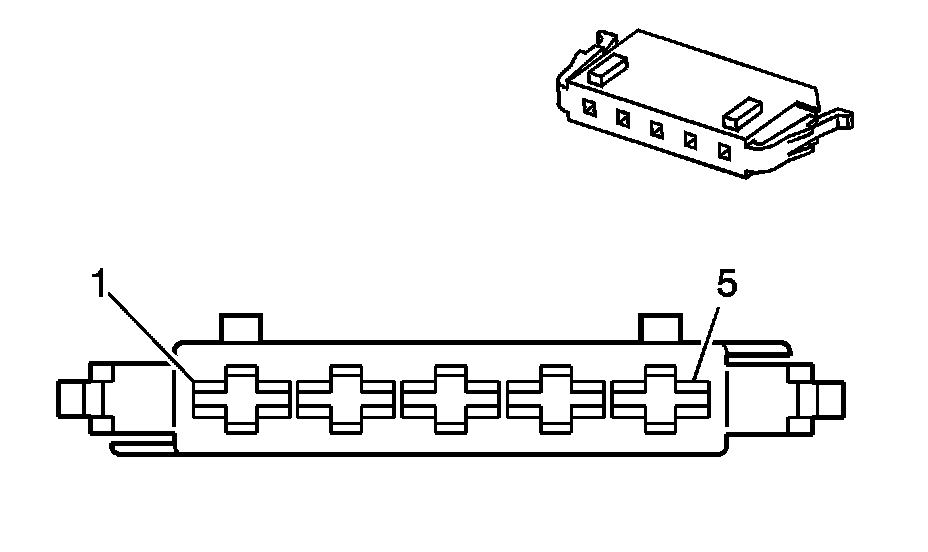

HVAC Control Module C1
HVAC Control Module C2

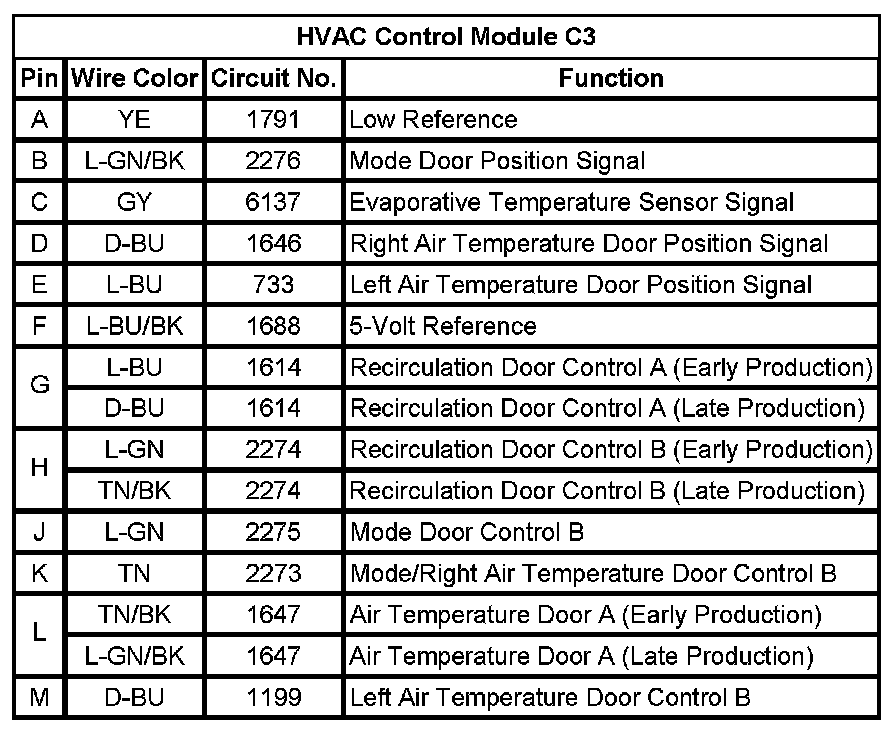

HVAC Control Module C3
