Transfer Case Shift Control Module C3
Transfer Case Shift Control Module C3

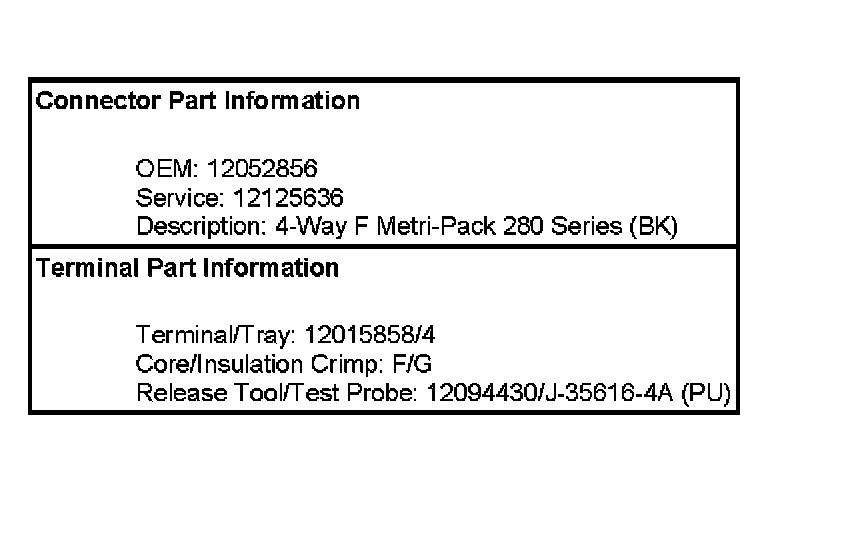

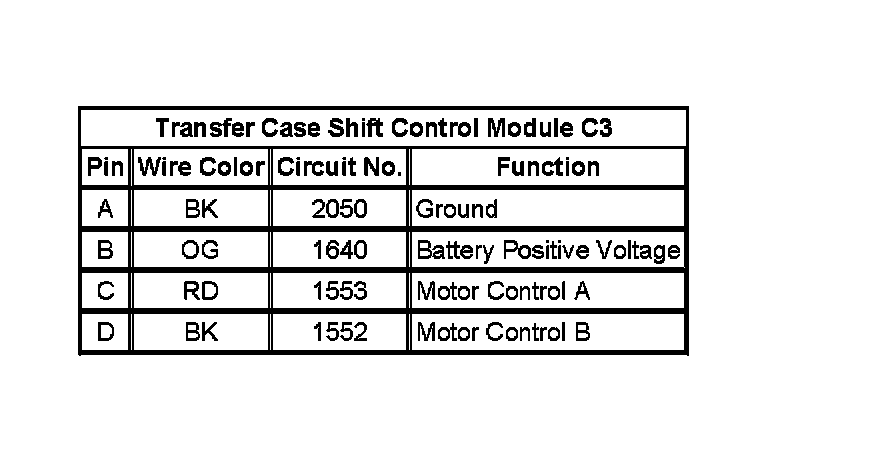

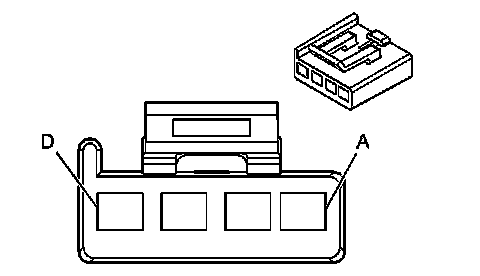

Transfer Case Shift Control Module - C3:
Transfer Case Shift Control Module C3:
