Courtesy Lamp

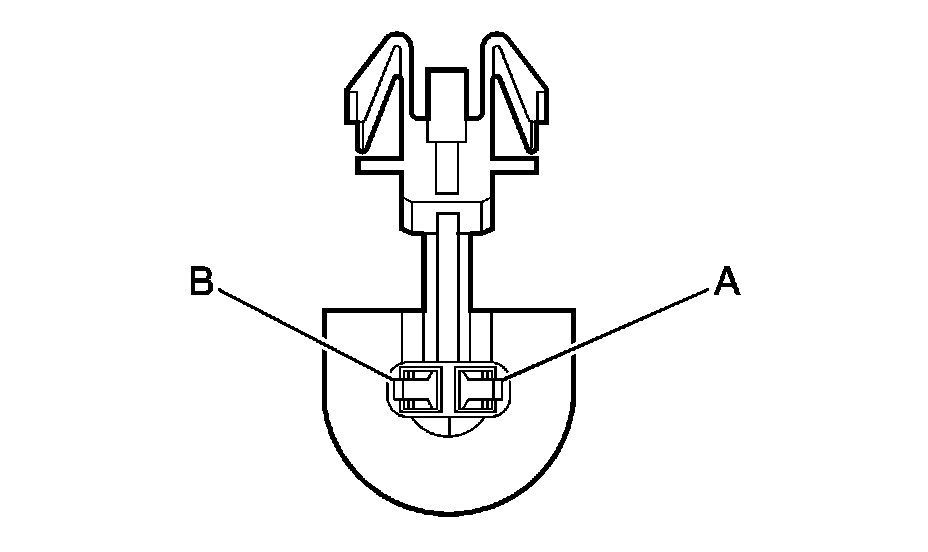

Lighting Systems Connector End Views

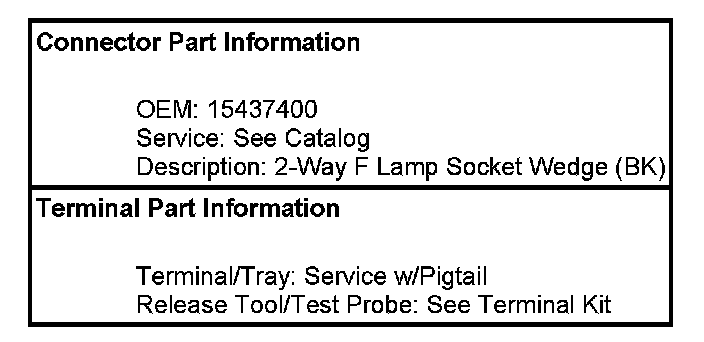

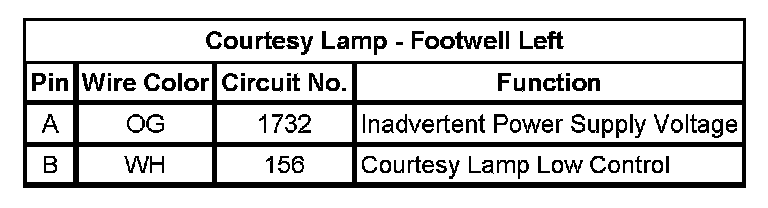

Courtesy Lamp - Footwell Left

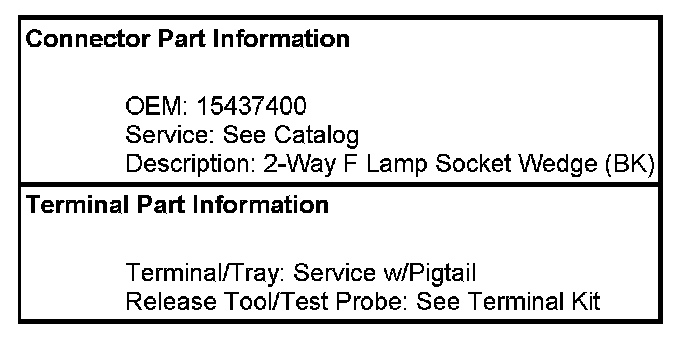

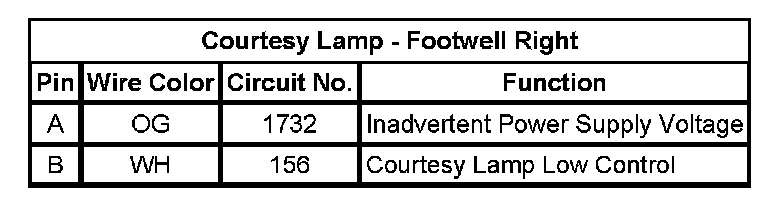

Courtesy Lamp - Footwell Right
