Electronic Brake Control Module (EBCM) C1



Electronic Brake Control Module (EBCM) C1

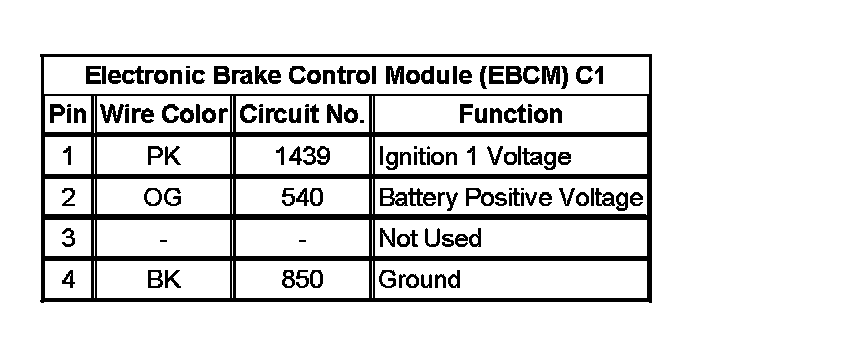

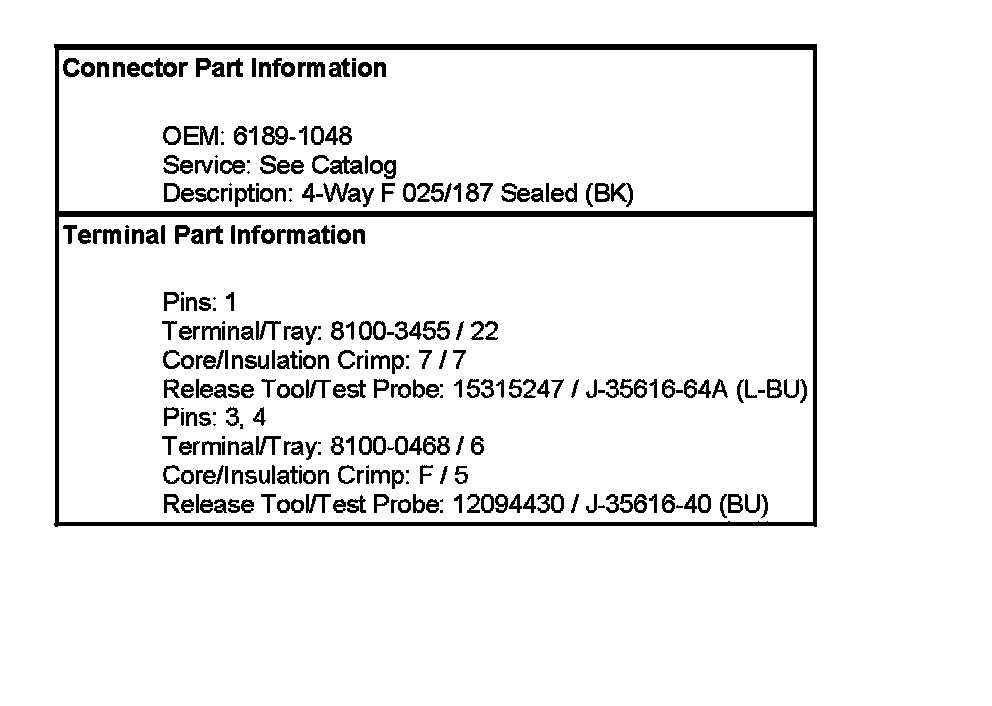

Electronic Brake Control Module (EBCM) C1:
