Fluid Pressure Sensor/Switch, A/T

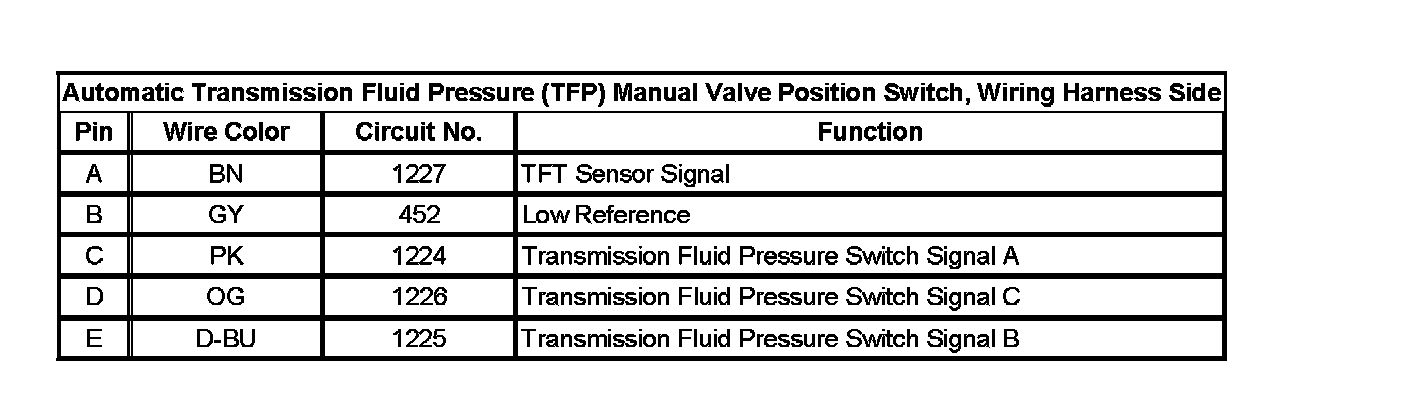

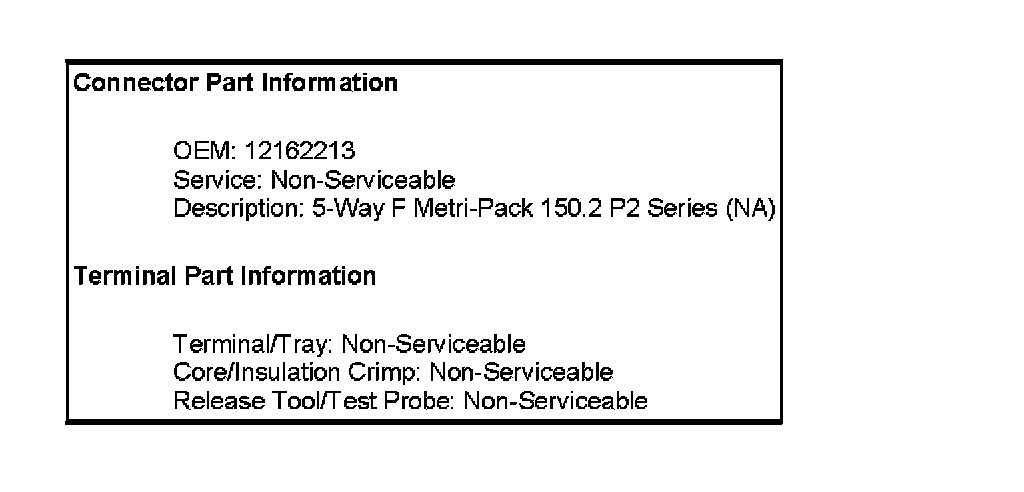

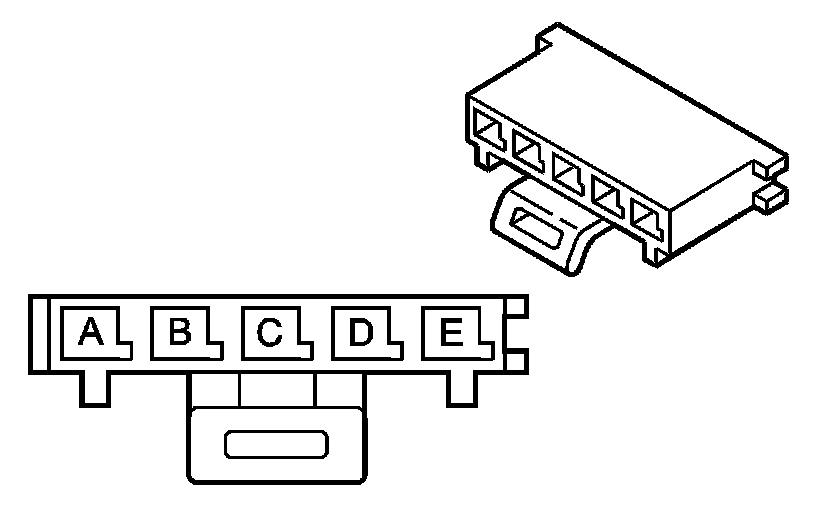

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side







Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side:
