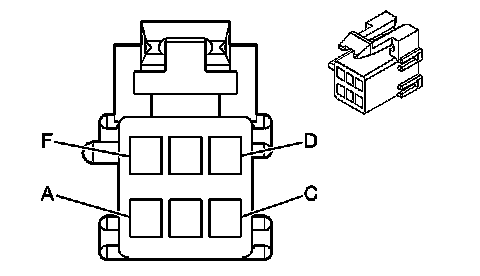

Shift Interlock, A/T

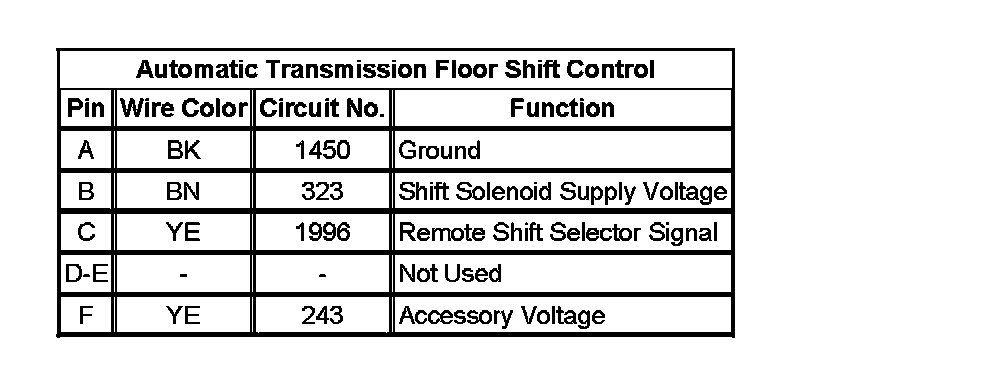

Automatic Transmission Floor Shift Control







Automatic Transmission Floor Shift Control:
