Fuse Block
Electrical Center Identification Views
Fuse Block - Underhood, Top View
Fuse Block - Underhood, Bottom View

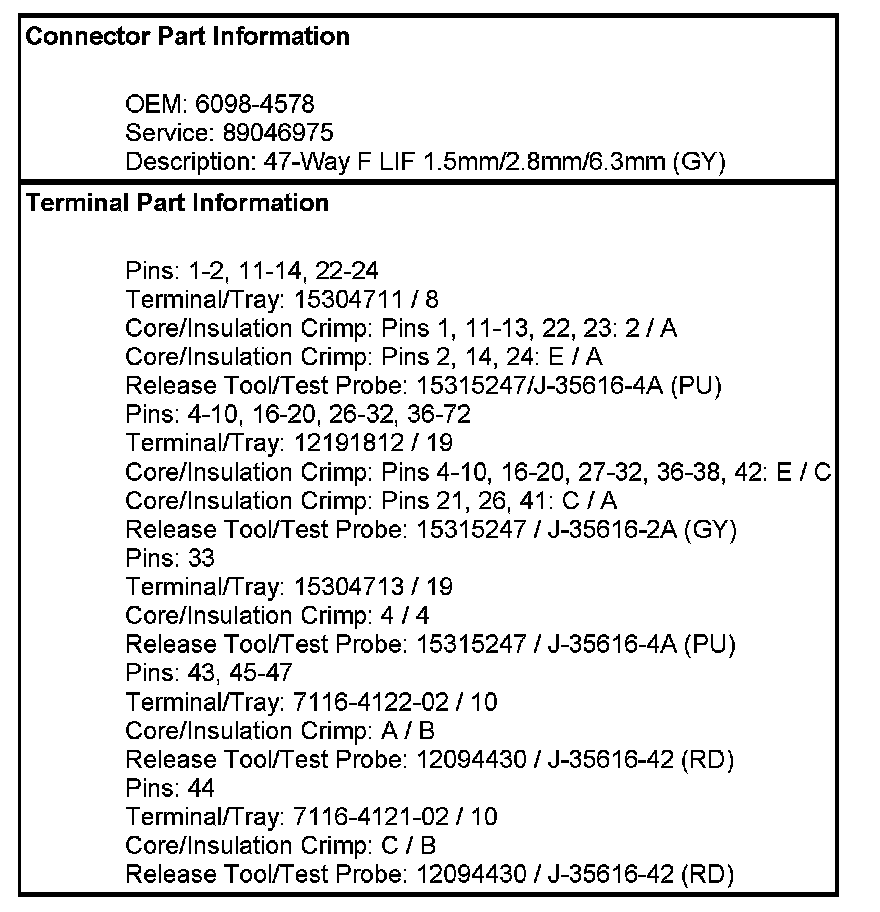

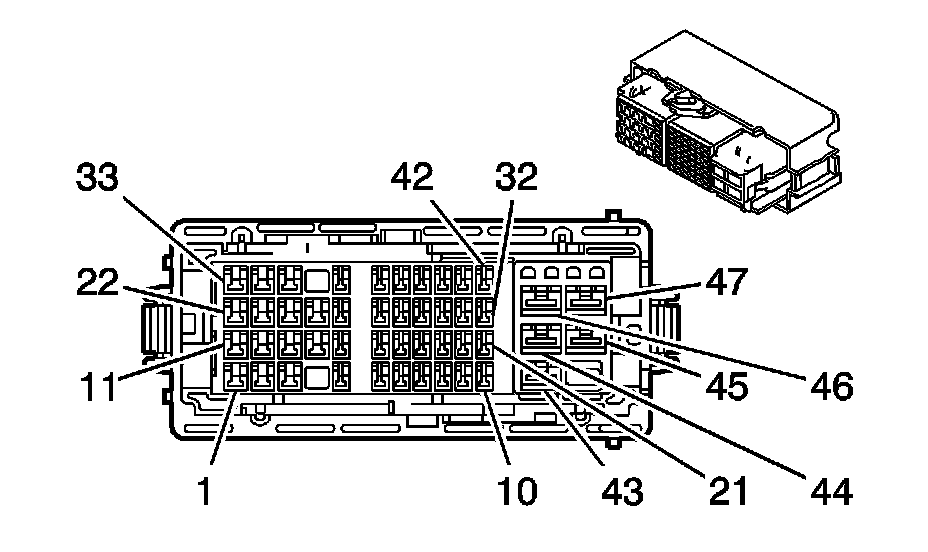

Fuse Block - Underhood C1

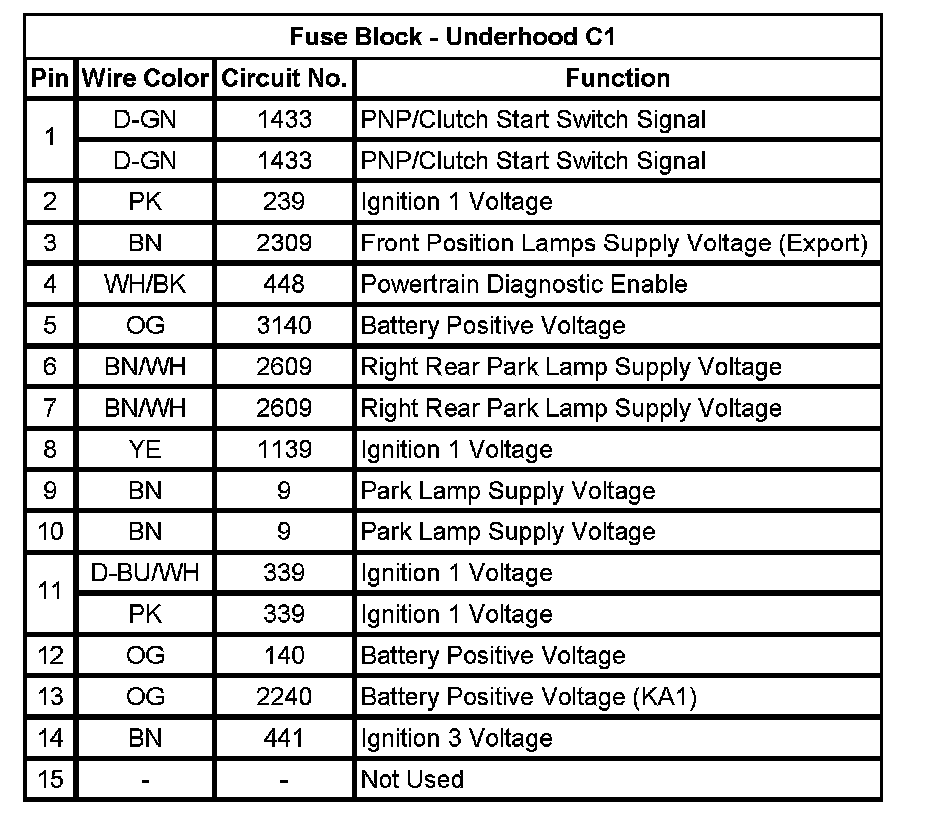

Fuse Block - Underhood C1 (Pin 1 To 15):

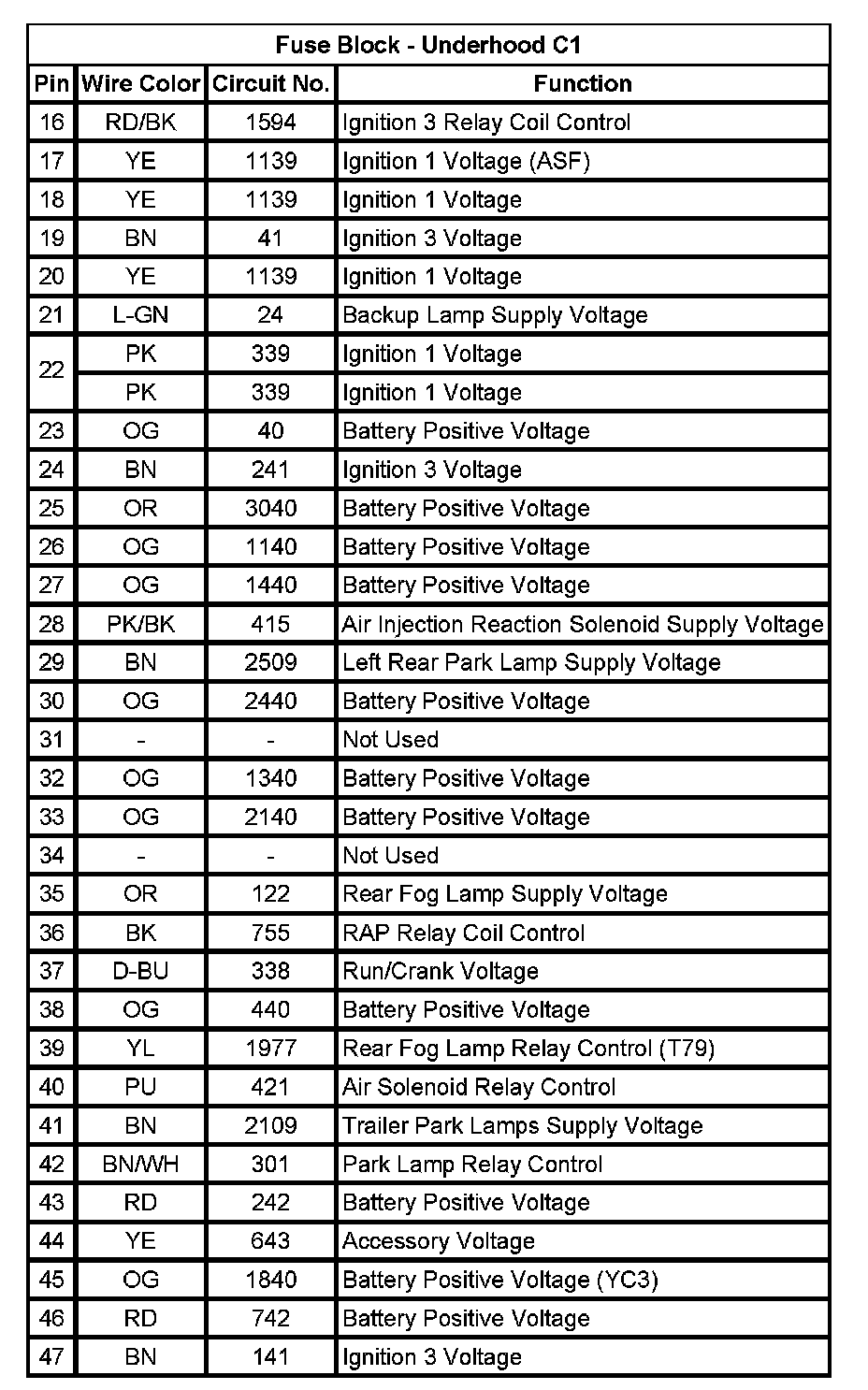

Fuse Block - Underhood C1 (Pin 16 To 47):

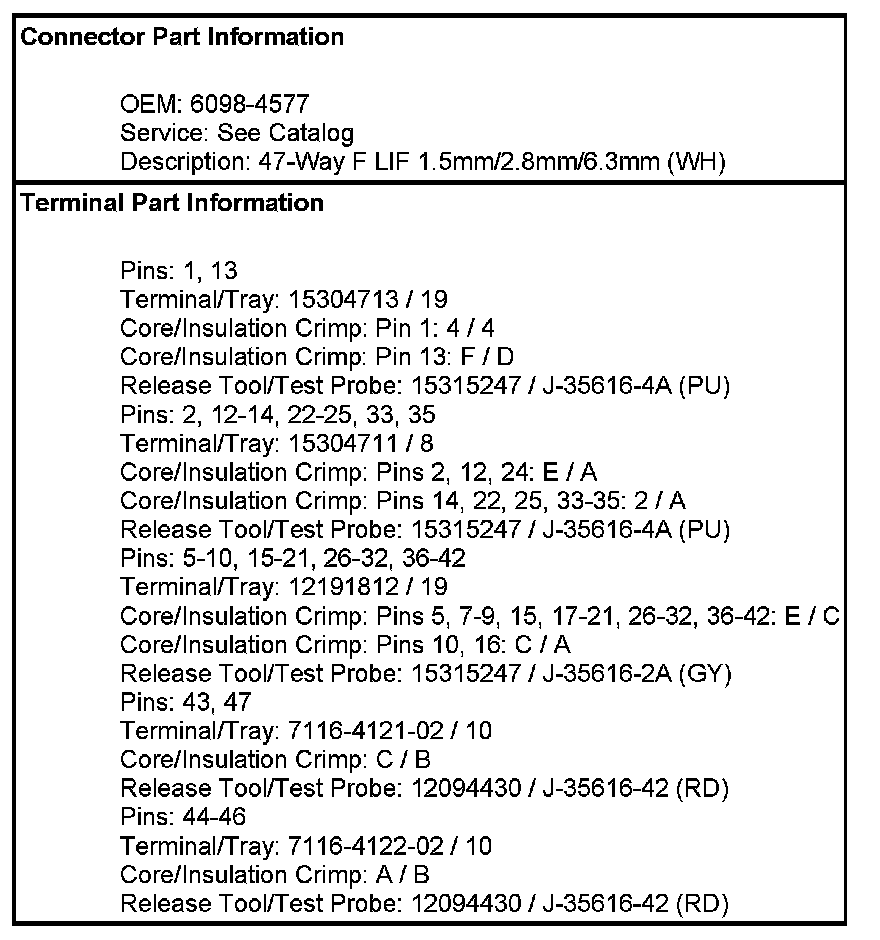

Fuse Block - Underhood C2

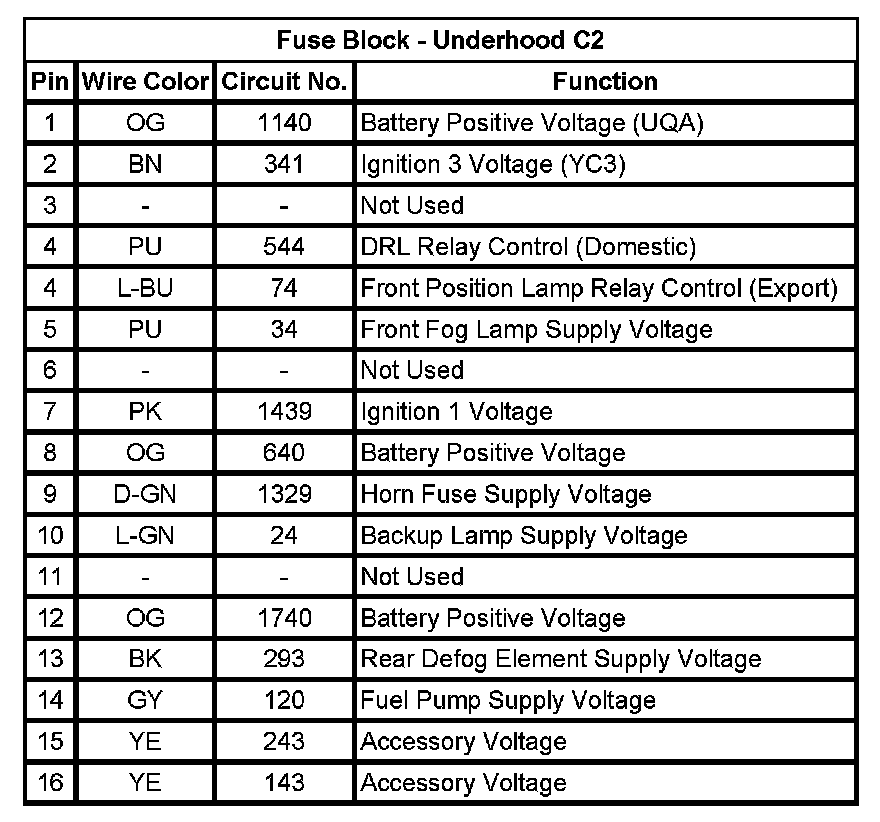

Fuse Block - Underhood C2 (Pin 1 To 16):
Fuse Block - Underhood C2 (Pin 17 To 47):

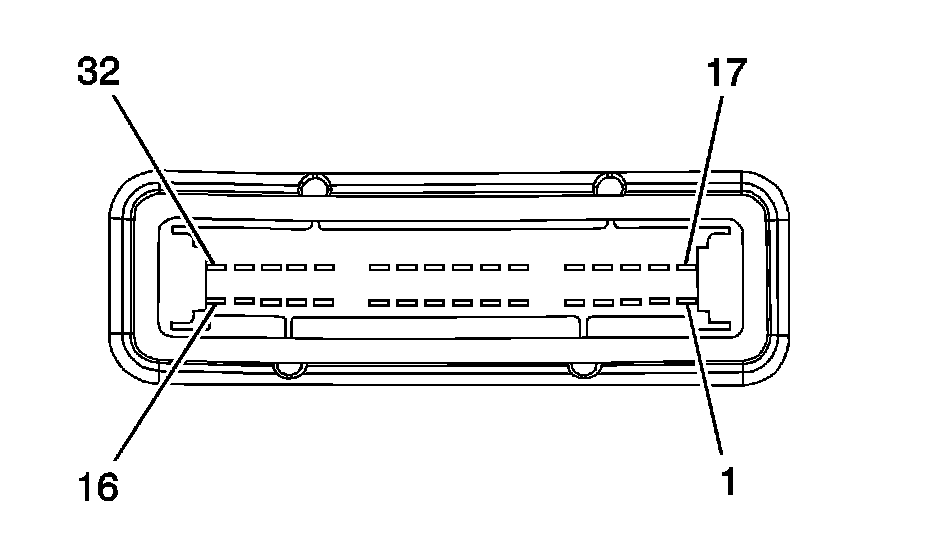

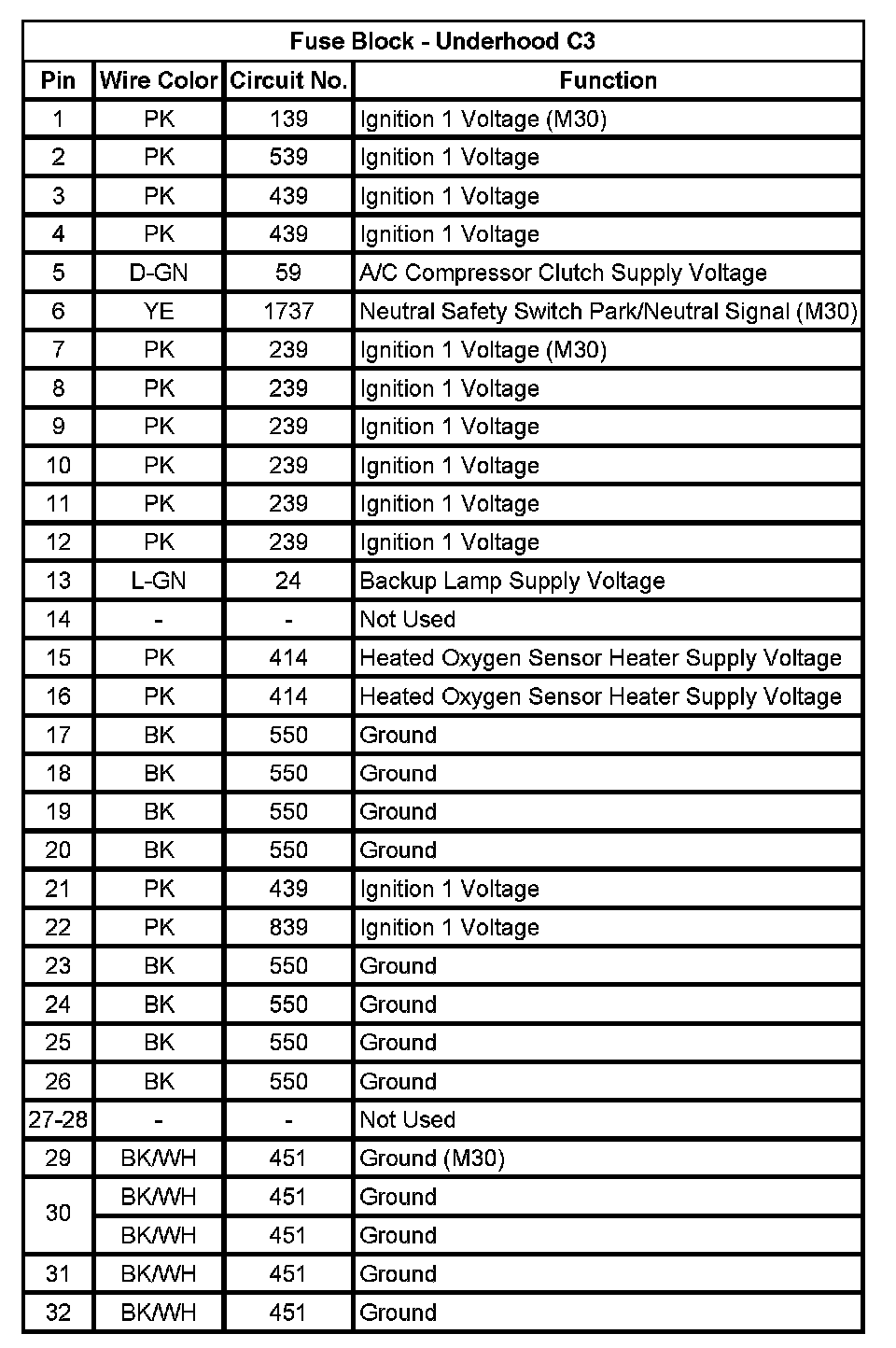

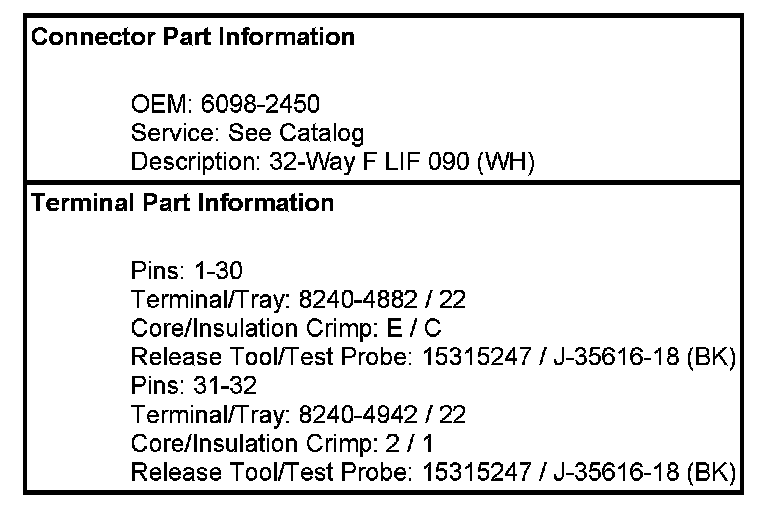

Fuse Block - Underhood C3

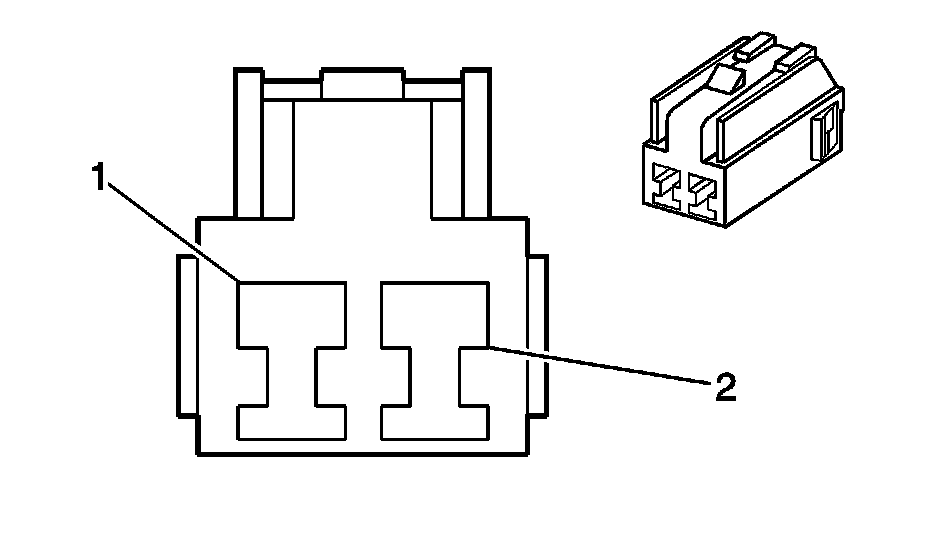

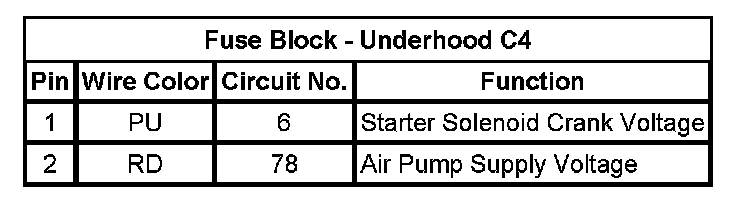

Fuse Block - Underhood C4

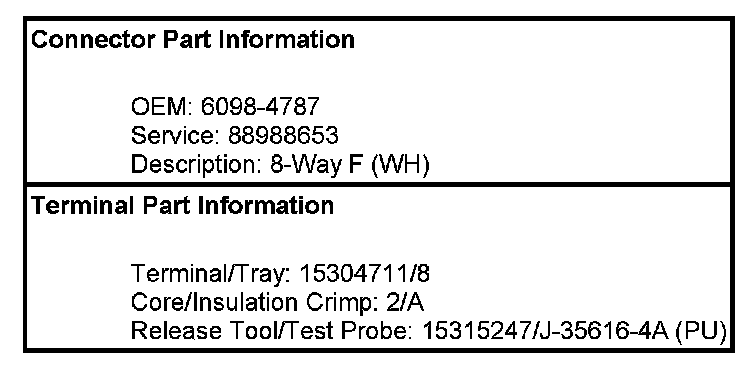

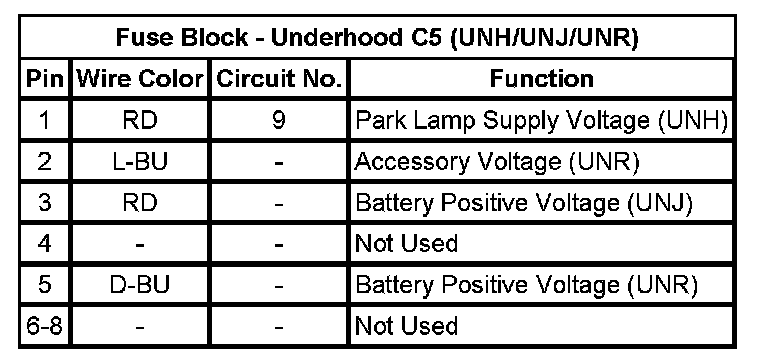

Fuse Block - Underhood C5 (UNH/UNJ/UNR)

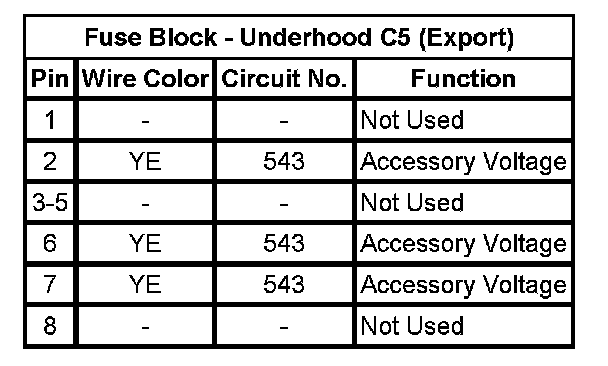

Fuse Block - Underhood C5 (Export)
