Power Window Switch



Window Systems Connector End Views

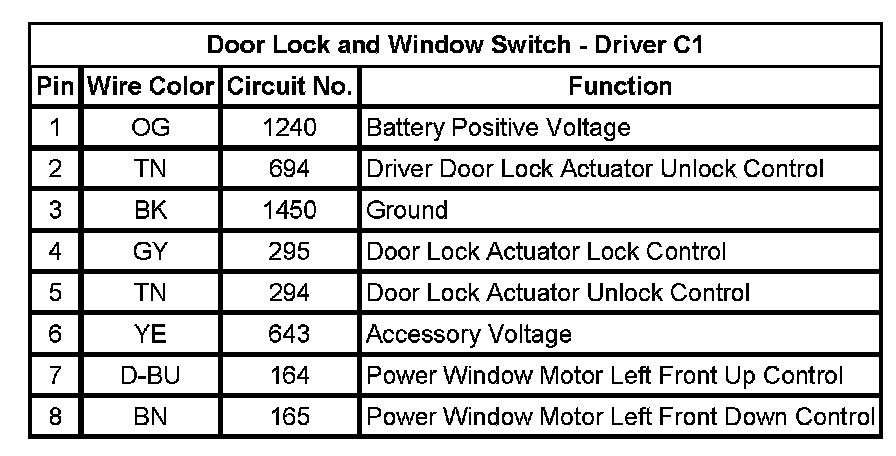

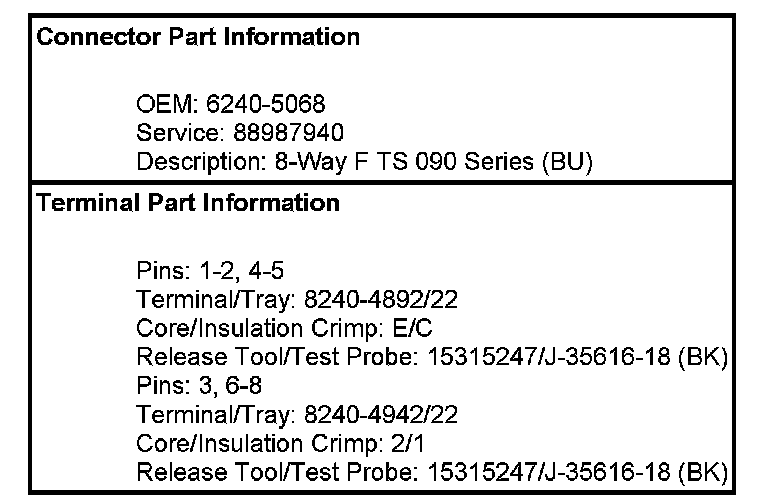

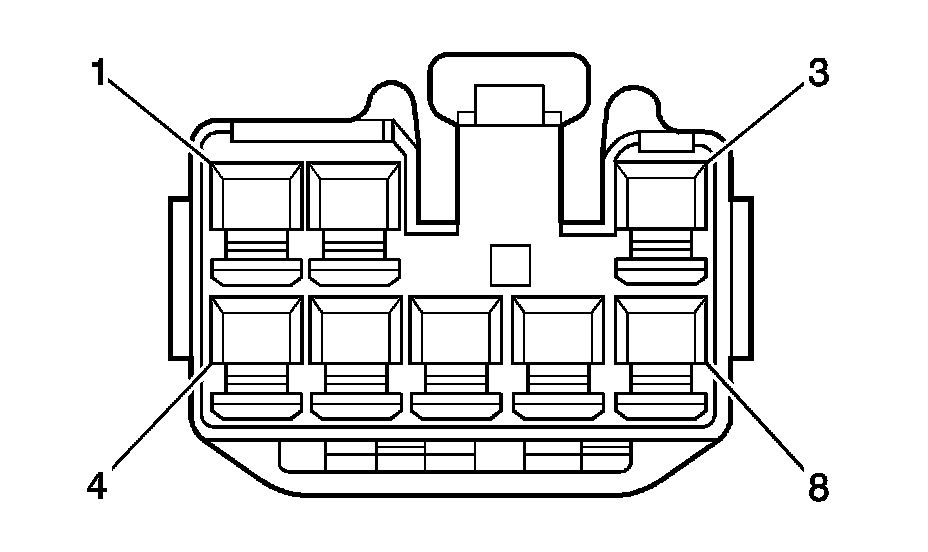

Door Lock and Window Switch - Driver C1

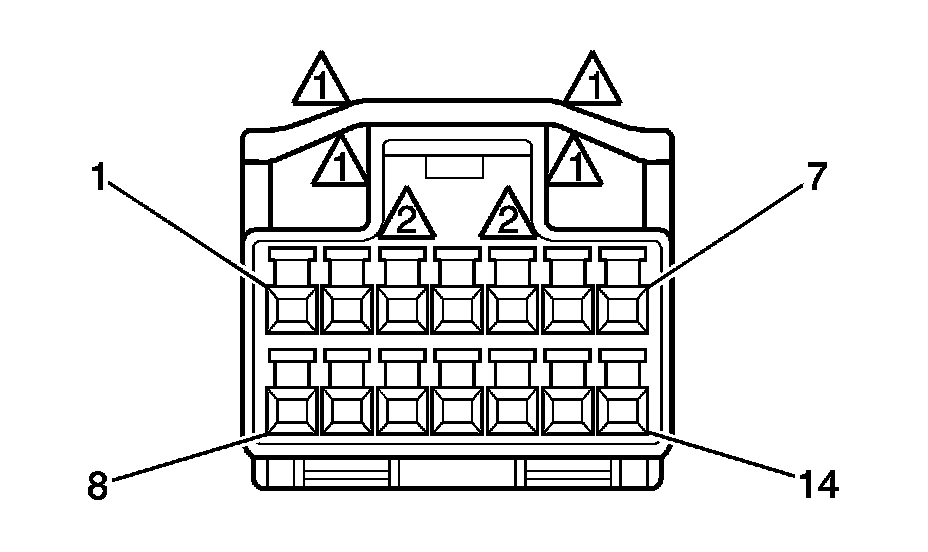

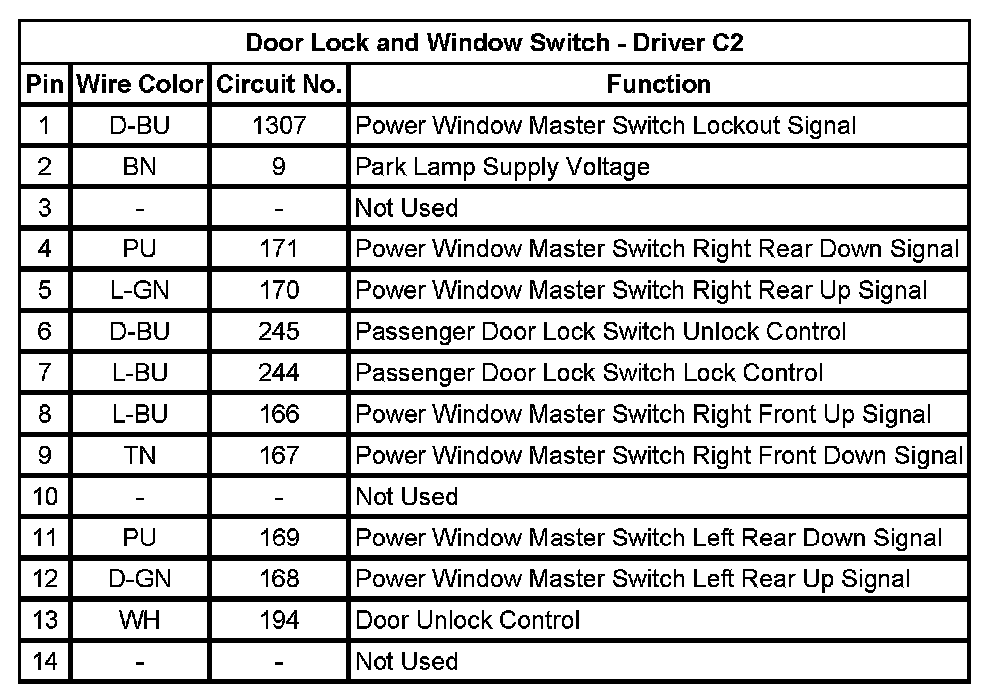

Door Lock and Window Switch - Driver C2

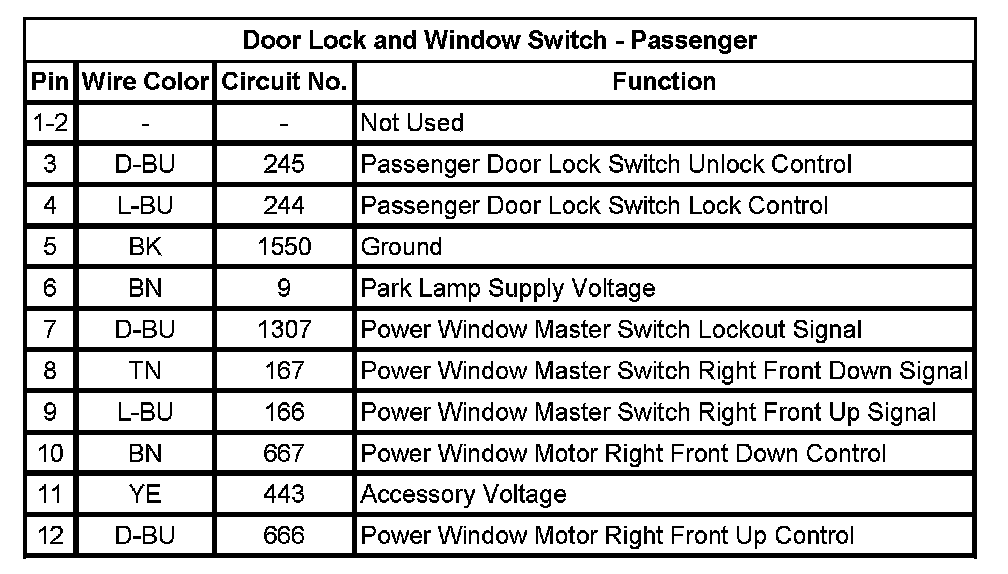

Door Lock and Window Switch - Passenger

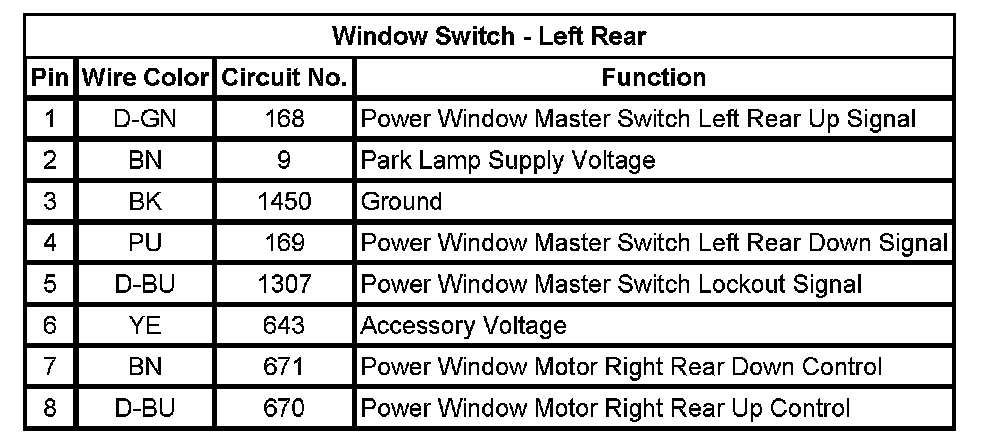

Window Switch - Left Rear

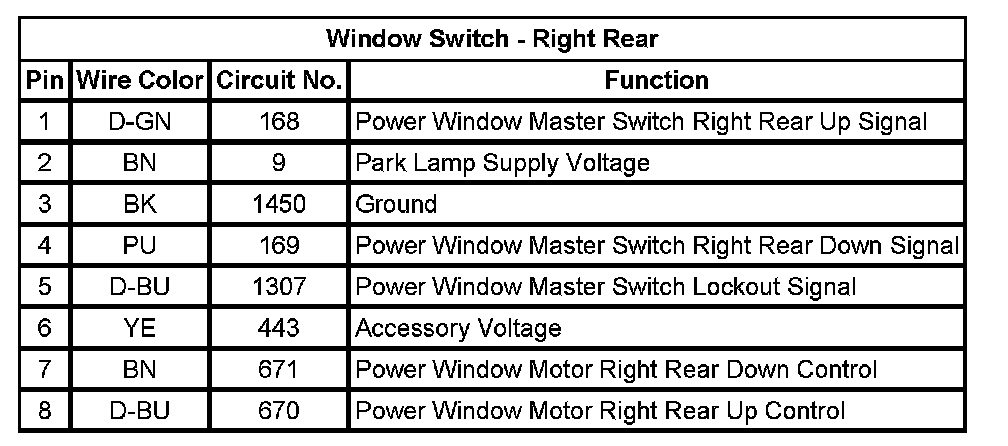

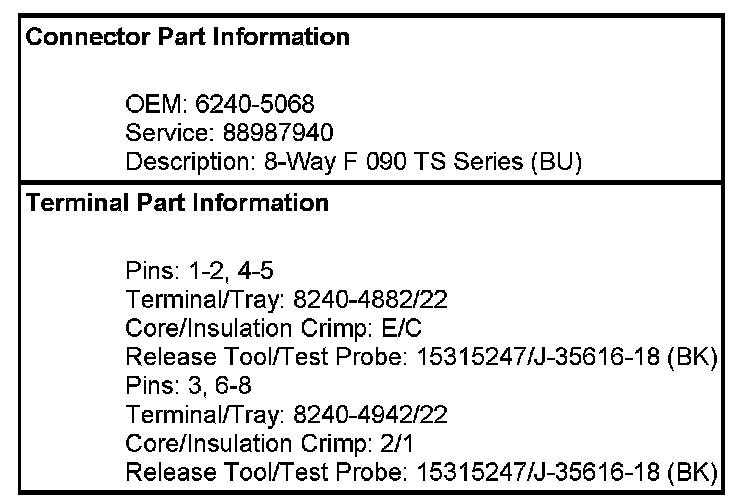

Window Switch - Right Rear
