System Diagram
Window Systems Connector End Views

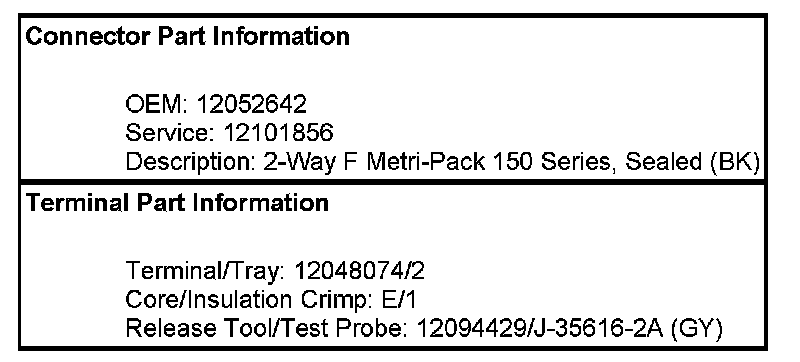

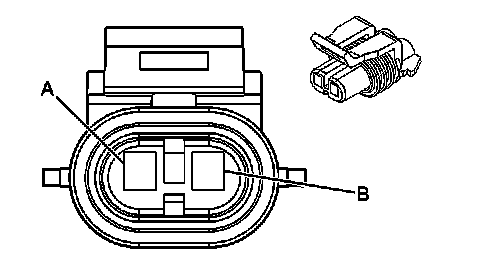

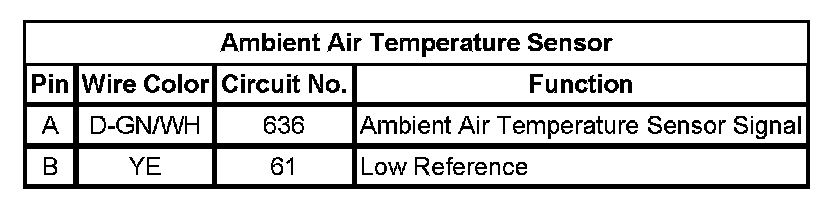

Ambient Air Temperature Sensor

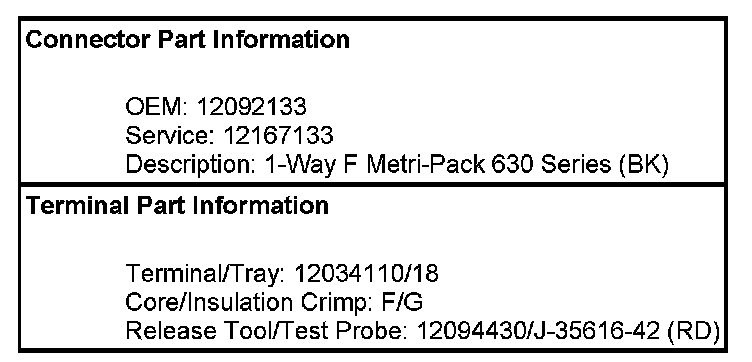

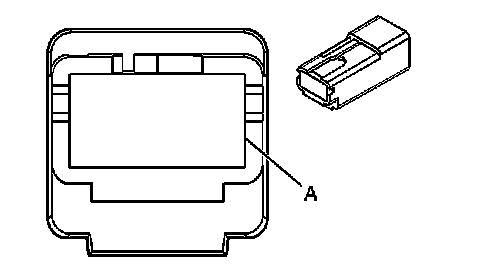

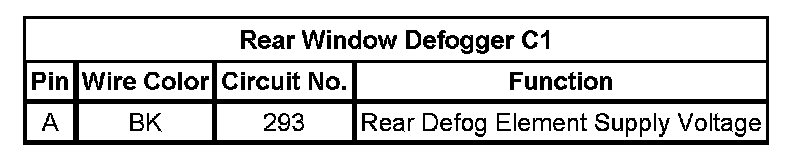

Rear Window Defogger C1

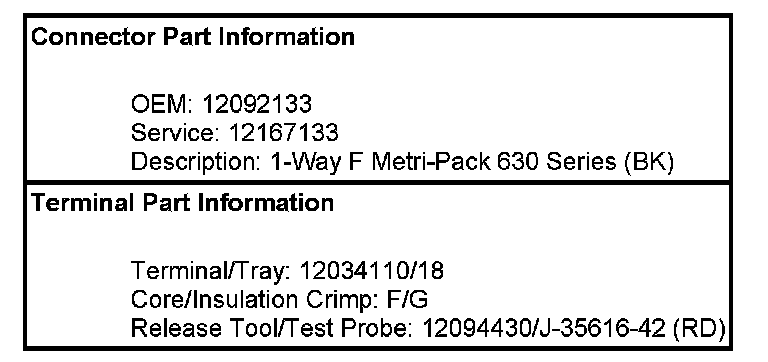

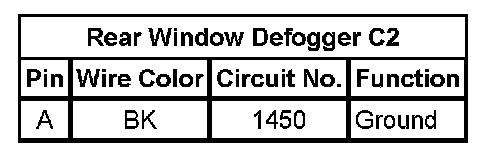

Rear Window Defogger C2
Door Lock and Window Switch - Driver C1
Door Lock and Window Switch - Driver C2
Door Lock and Window Switch - Passenger
Window Motor - Driver
Window Motor - Passenger
Window Motor - Left Rear
Window Motor - Right Rear
Window Switch - Left Rear
Window Switch - Right Rear
