Yaw Rate Sensor

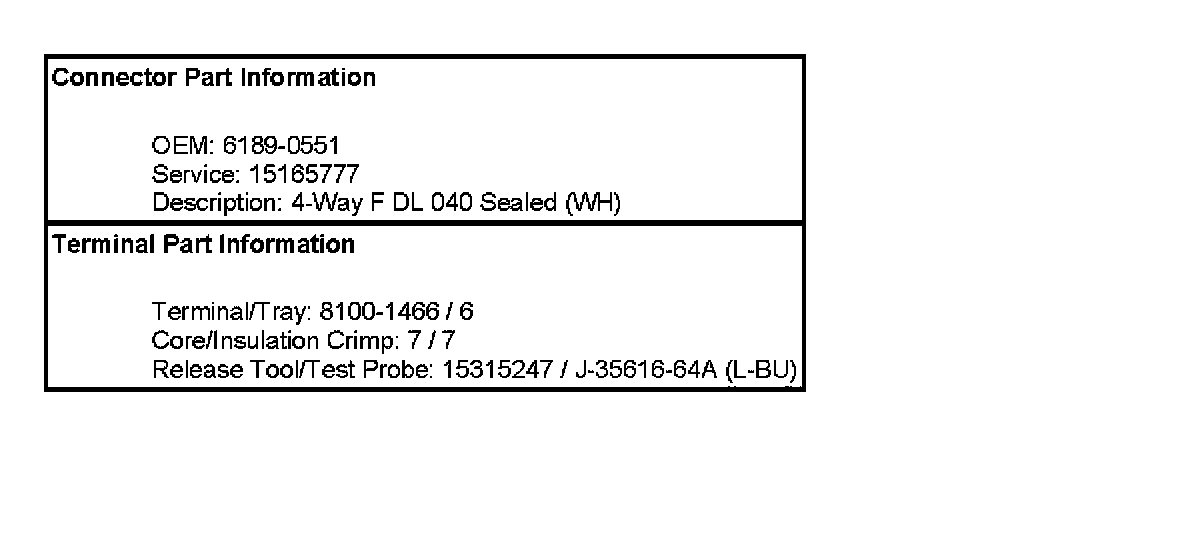

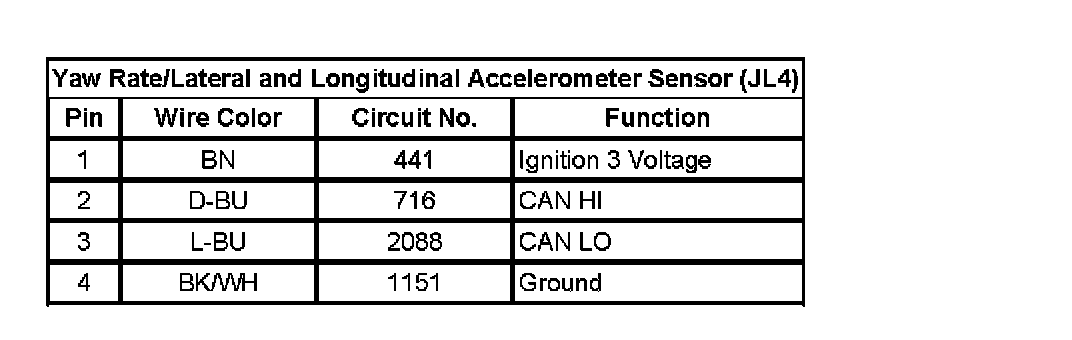

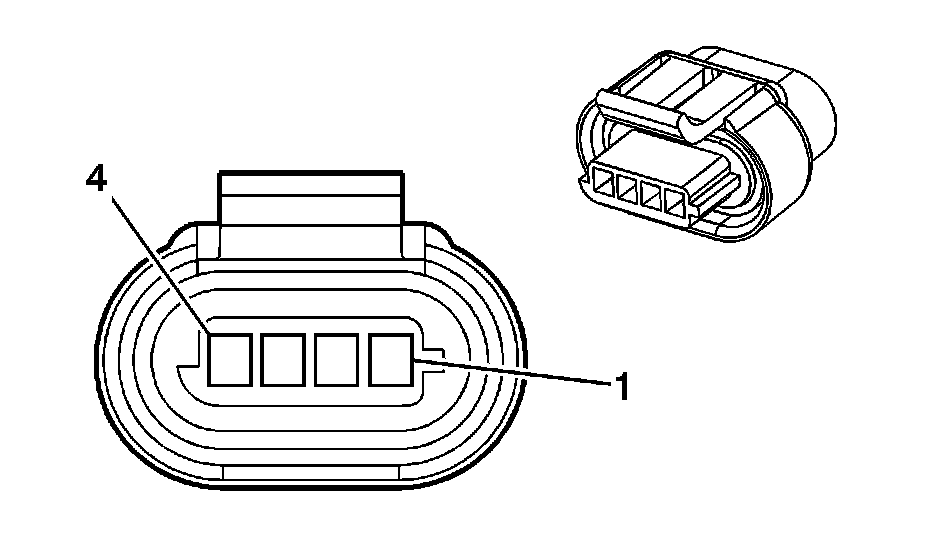

Yaw Rate/Lateral and Longitudinal Accelerometer Sensor (JL4)






Yaw Rate/Lateral And Longitudinal Accelerometer Sensor (JL4):
