Windows

Moveable Window Schematics

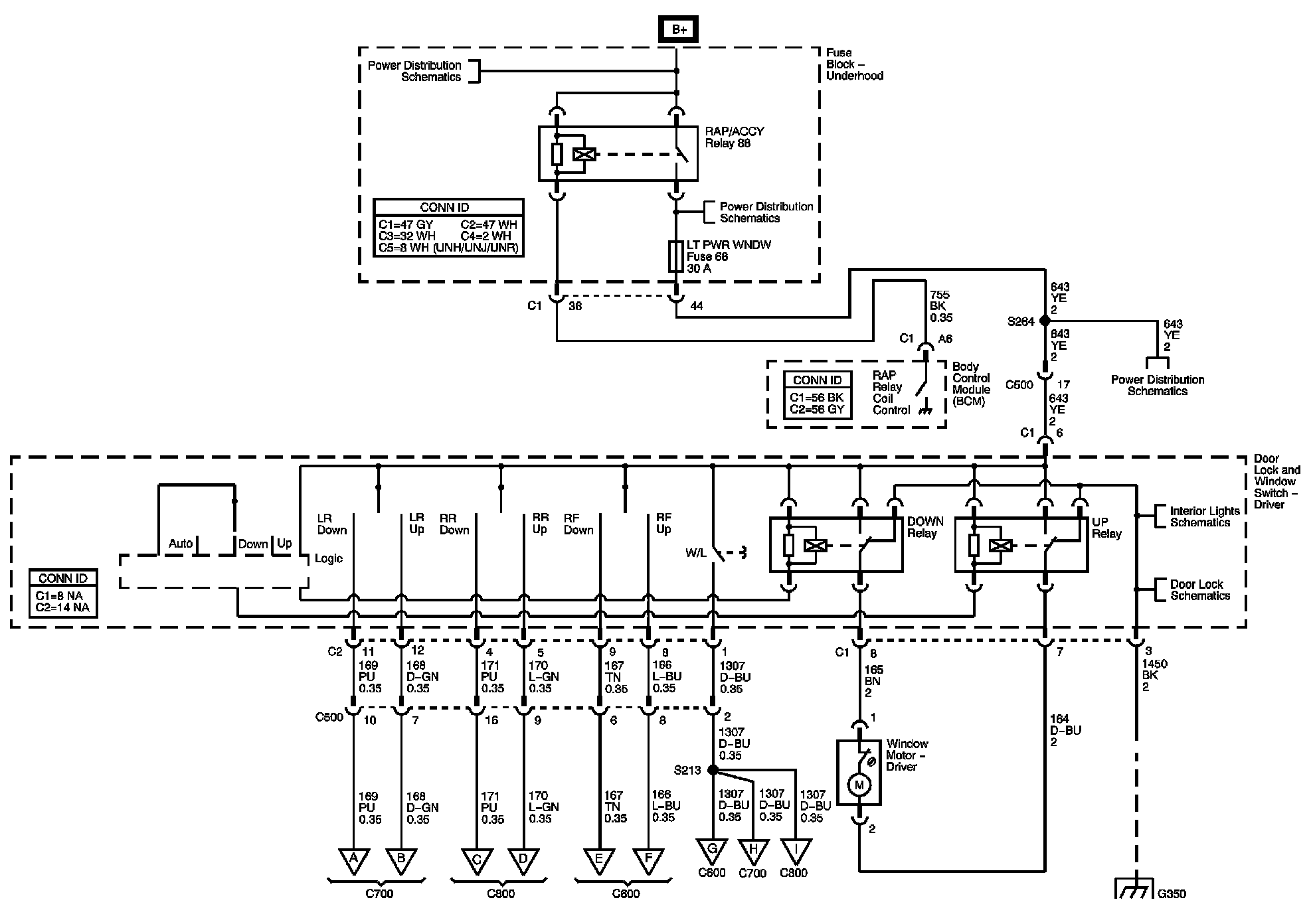

Driver Door

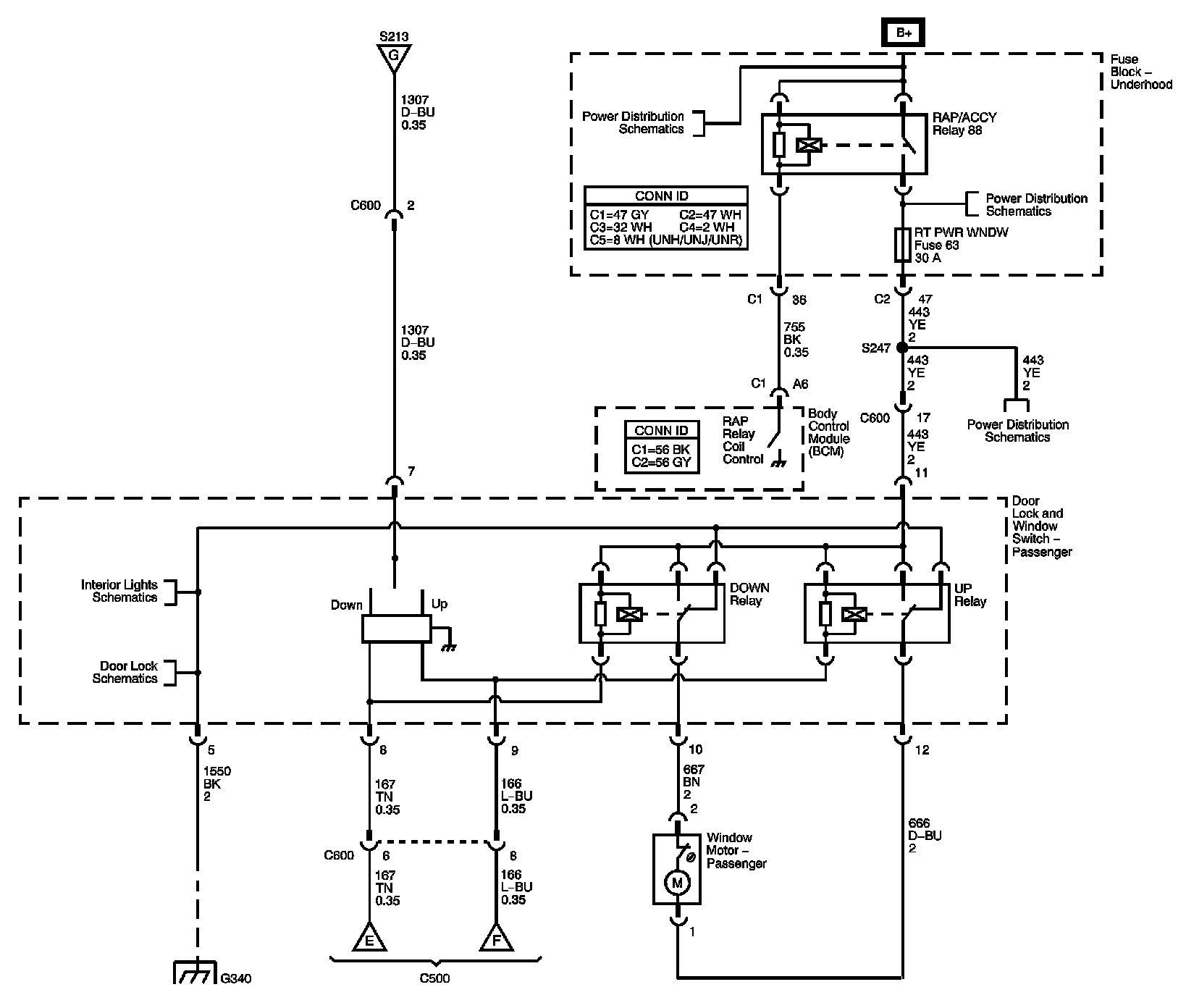

Front Passenger Door

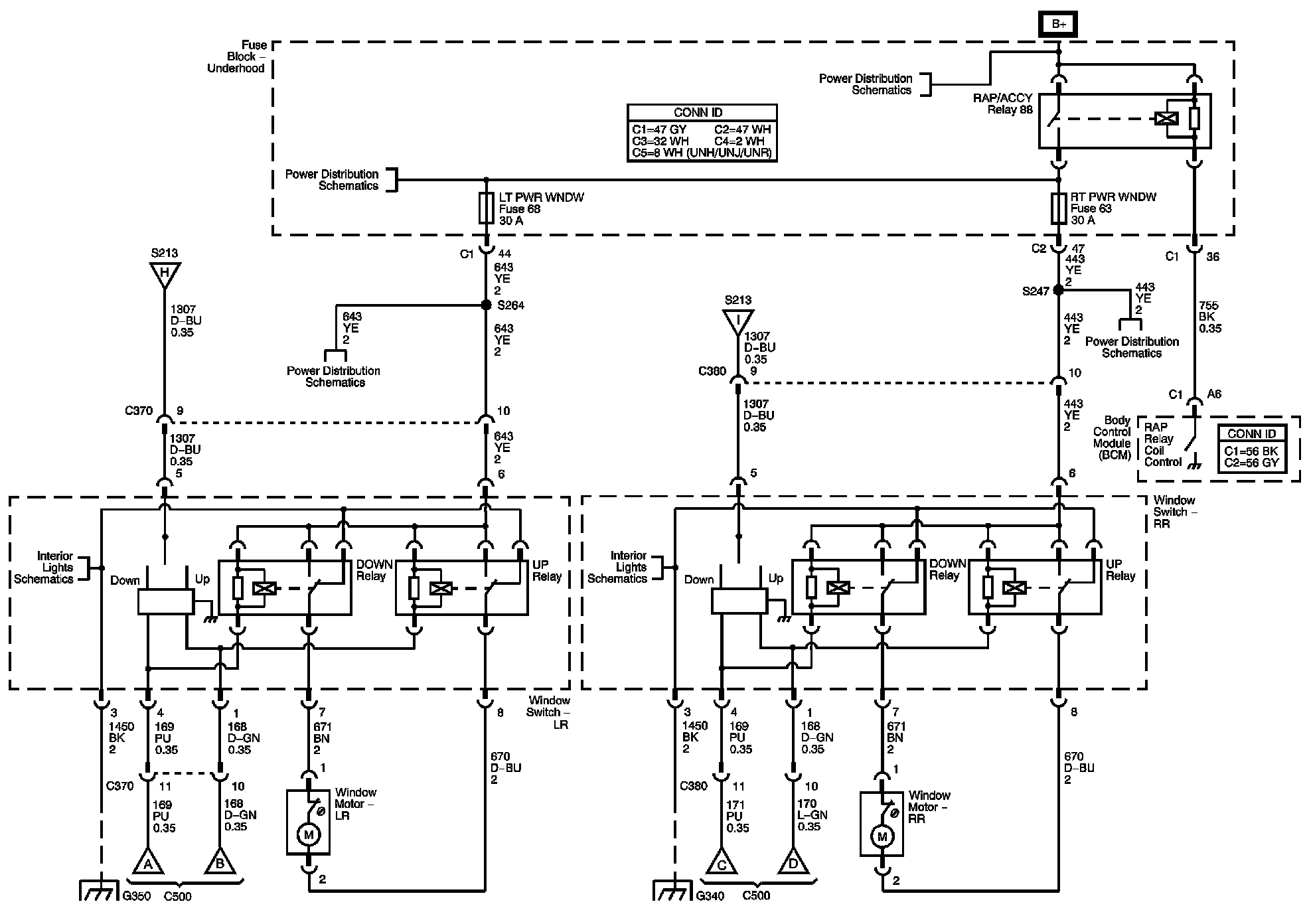

Rear Doors







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
