Control Module HVAC: Locations

HVAC Component Views

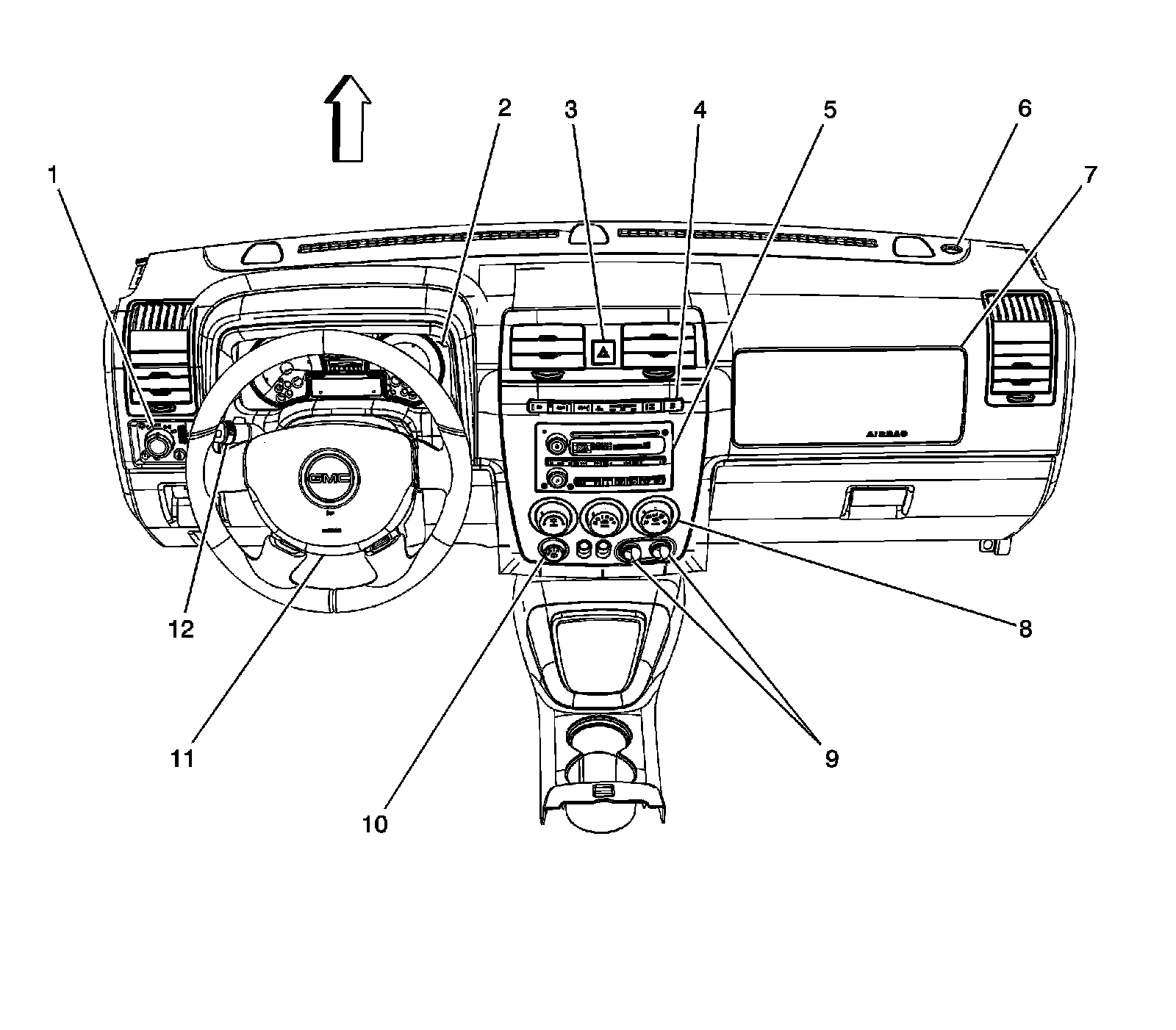

I/P Harness Components

I/P Harness Components:

1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Hazard Switch
4 - Accessory Switch
5 - Radio
6 - Ambient Light Sensor
7 - Inflatable Restraint I/P Module
8 - HVAC Control Module
9 - Auxiliary Power Outlets - Front
10 - Rear Window Wiper/Washer Switch
11 - Inflatable Restraint Steering Wheel Module
12 - Turn Signal/Multifunction Switch

HVAC Module Components




1 - C205 HVAC Harness to I/P Harness
2 - C203 Blower Motor Resistor Harness to I/P Harness
3 - Blower Motor
4 - High Speed Blower Motor Relay
5 - Blower Motor Resistor Assembly
6 - Recirculation Actuator
7 - Evaporator Temperature Sensor
8 - HVAC Module
9 - Air Temperature Actuator - Right
10 - Air Temperature Actuator - Left
11 - Mode Actuator
