Endgate Views

Harness Routing Views

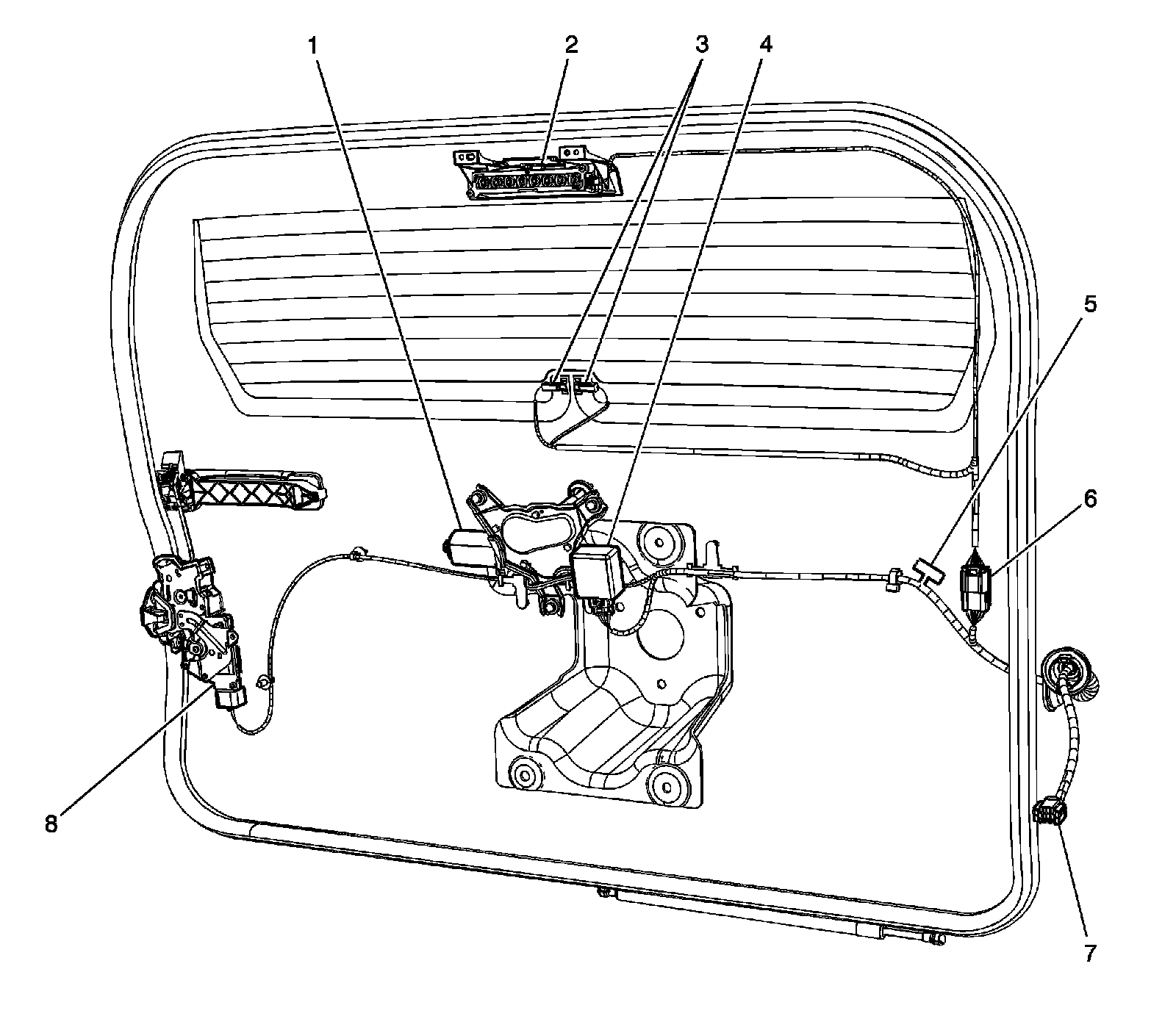

Endgate Harness Components




1 - Rear Window Wiper Motor
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Rear Window Defogger Grid Connectors
4 - Rear Window Wiper Motor
5 - S900
6 - C901 Endgate Harness to CHMSL Jumper Harness
7 - C450 Endgate Harness to Body Harness
8 - Swinggate Lock Actuator-Right
