Entertainment Components



Harness Routing Views

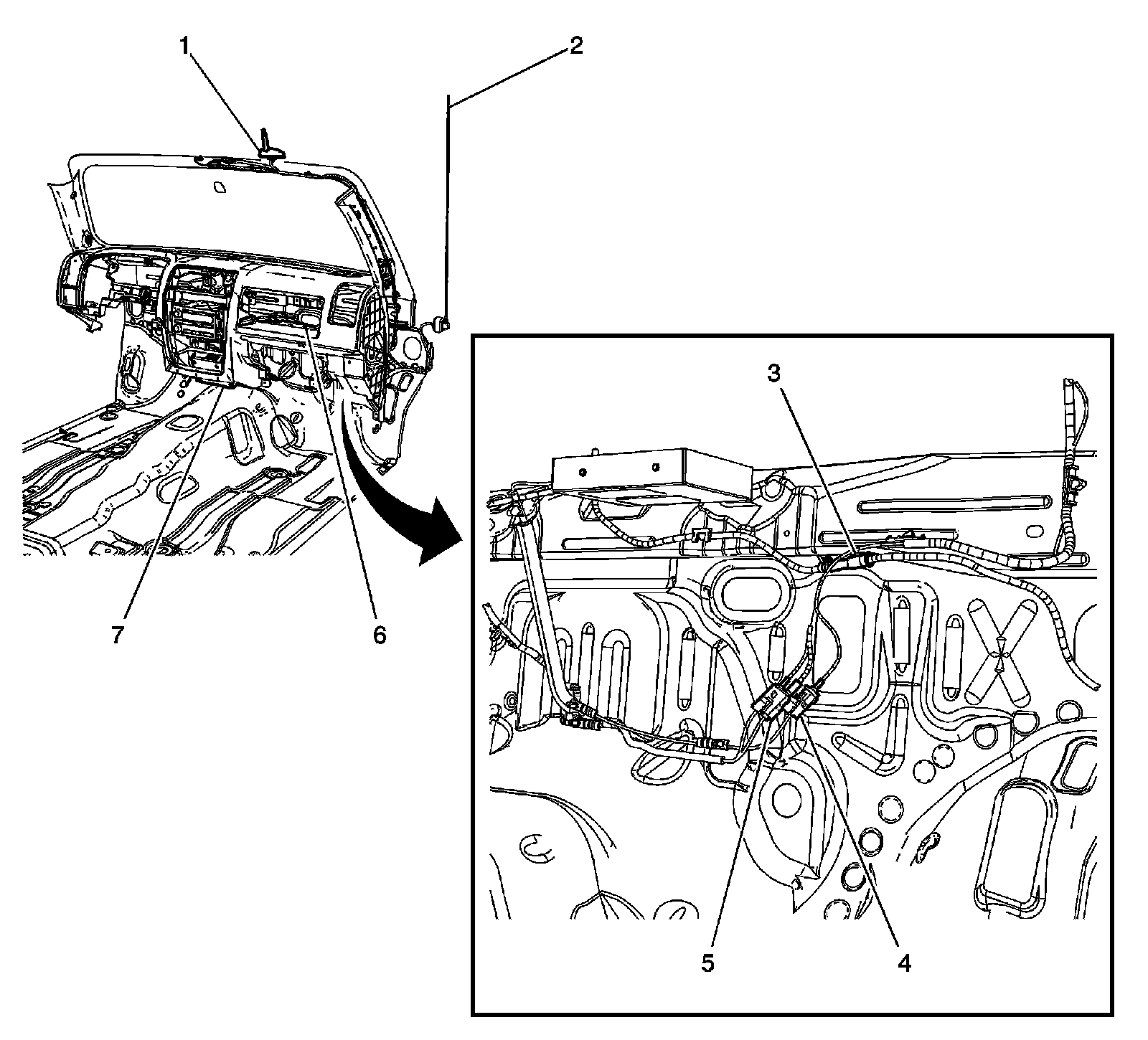

Antenna Components




1 - Cellular/Navigation and Digital Radio Antenna
2 - Radio Antenna
3 - C220 Base Radio Coax
4 - C221 Digital Radio Coax
5 - C222 VCIM Coax
6 - Digital Radio Receiver
7 - Vehicle Communication Interface Module (VCIM)
