HVAC Views

Harness Routing Views

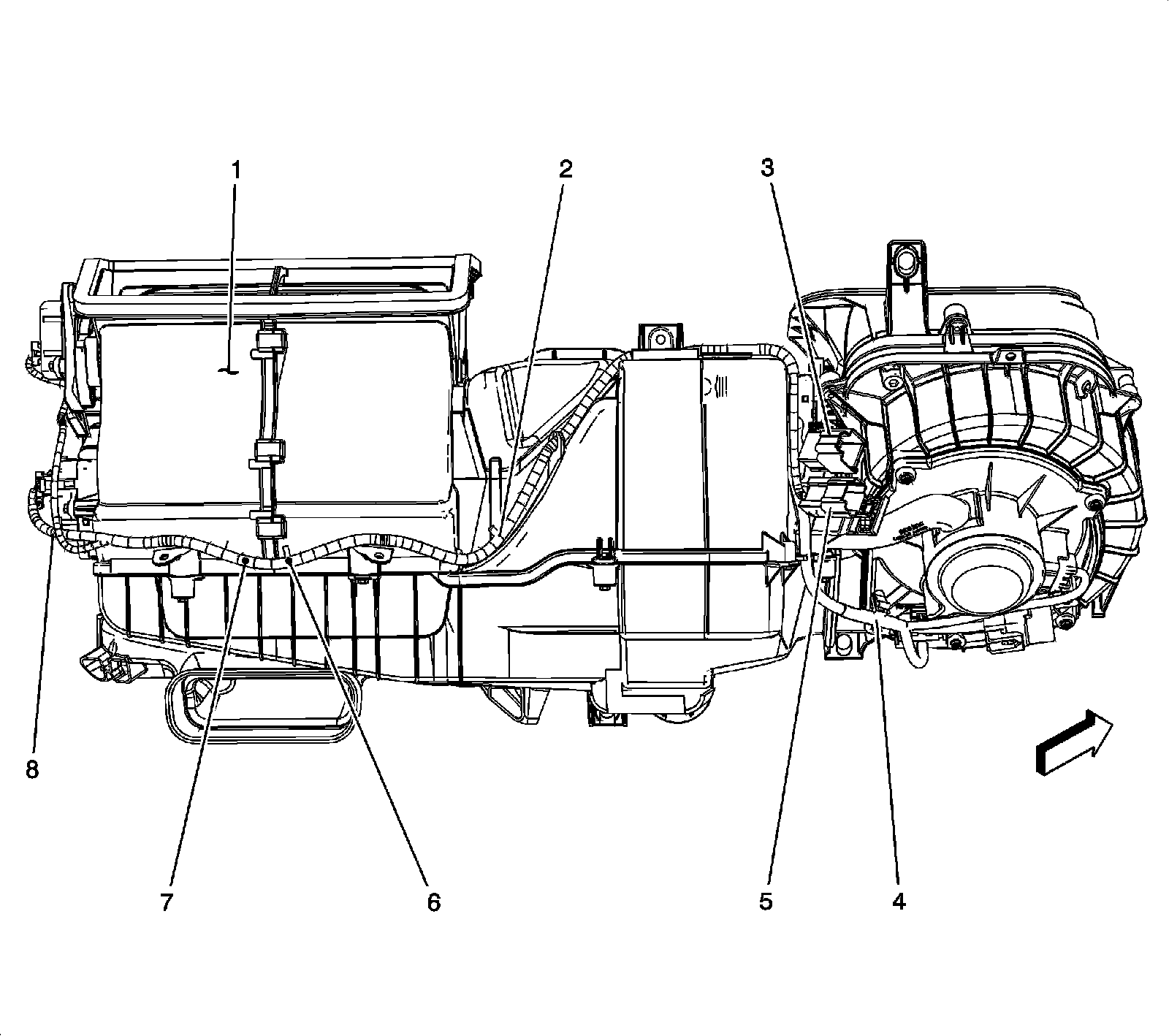

HVAC Module Harness




1 - HVAC Box
2 - S250
3 - C203 Blower Motor Resistor Harness to I/P Harness
4 - S220
5 - C205 HVAC Harness to I/P Harness
6 - S240
7 - S260
8 - S230
