Electrical Center Identification Views
Electrical Center Identification Views

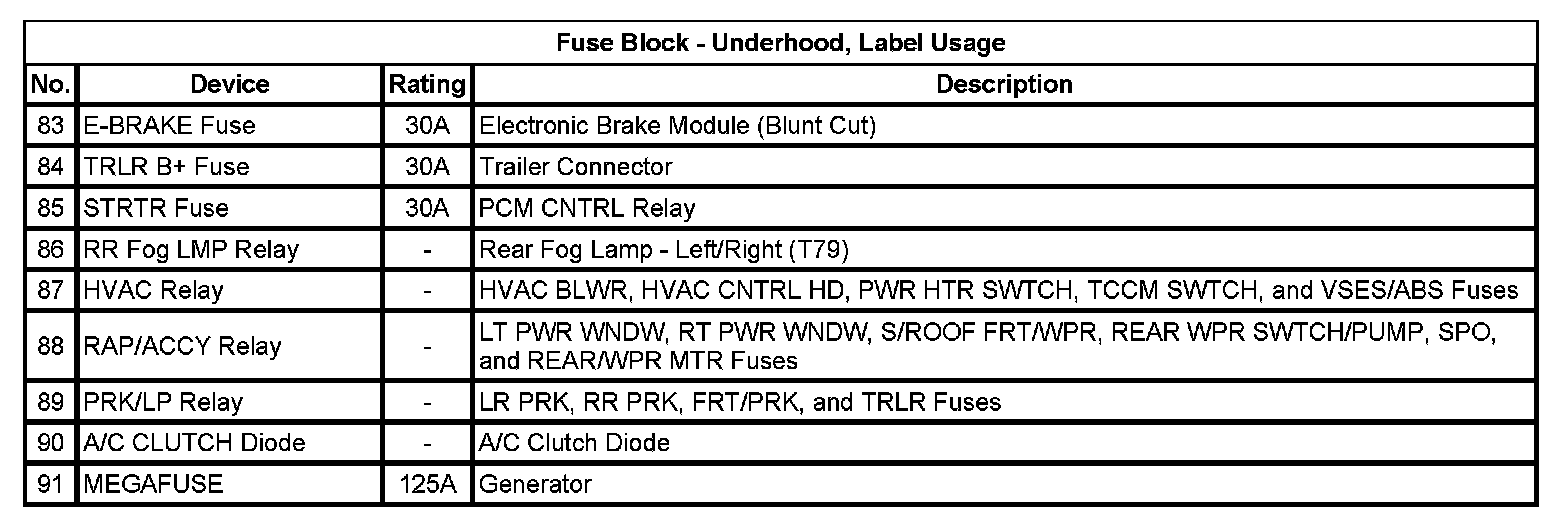

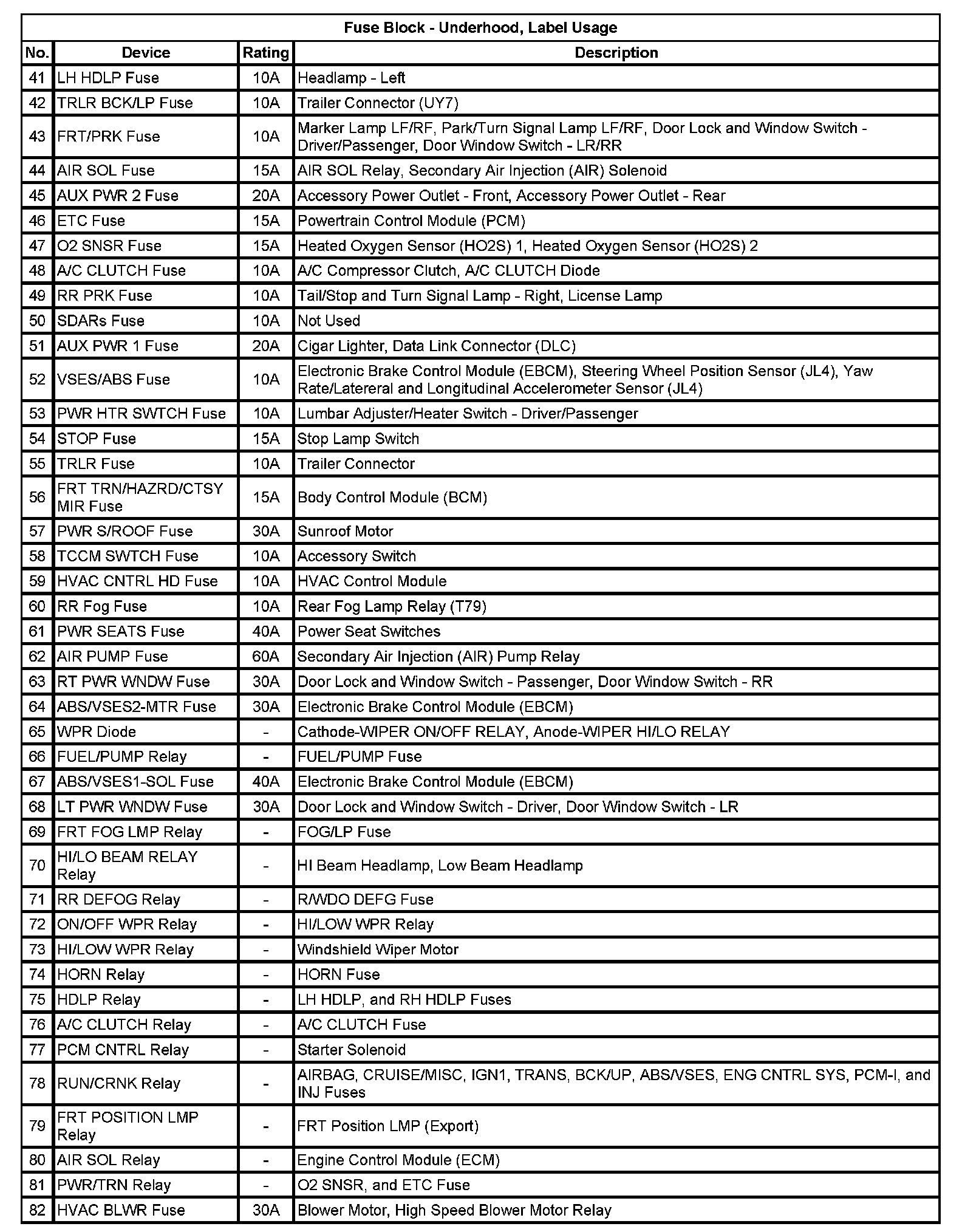

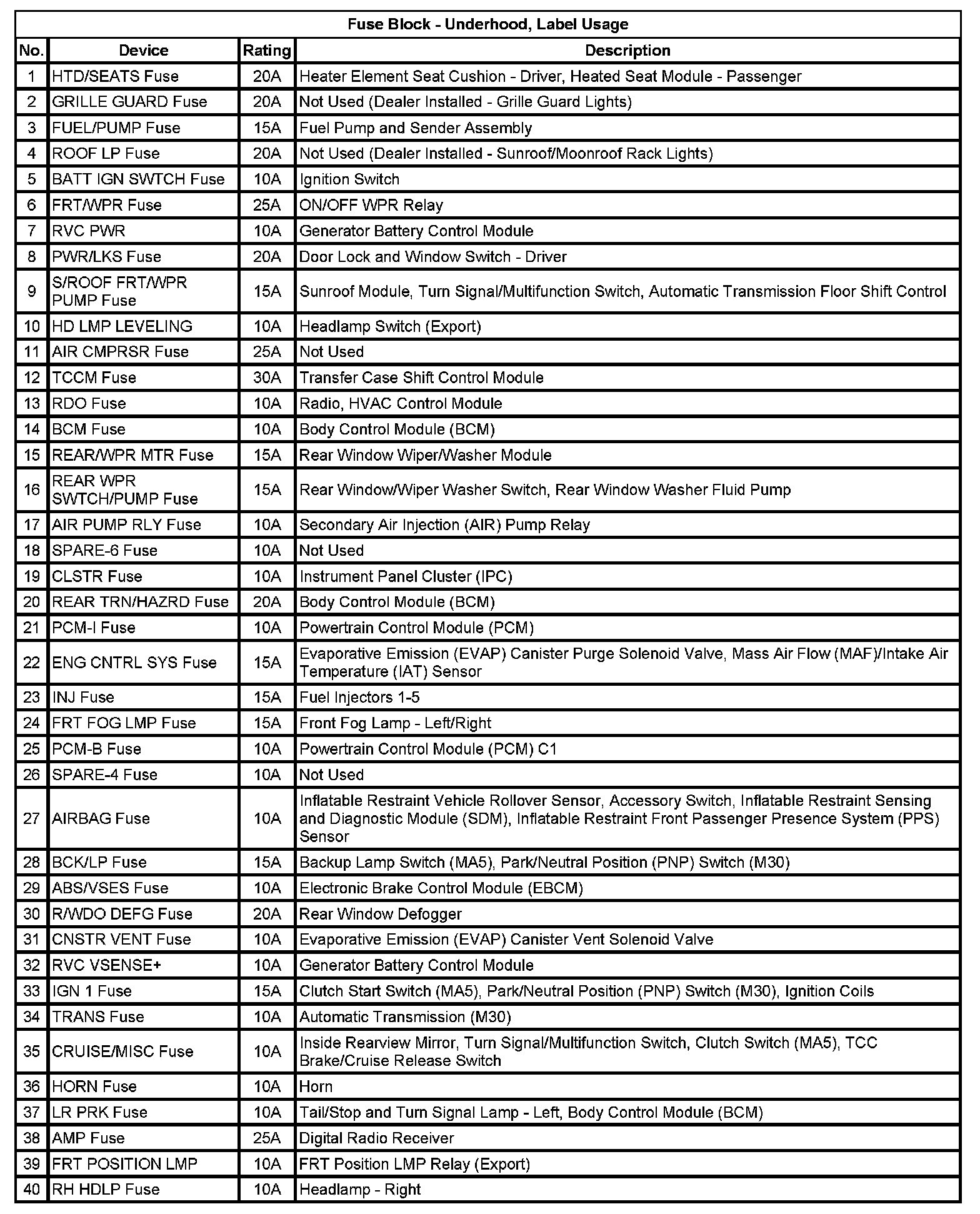

Fuse Block
- Underhood, Label
