Fuse Block Views

Power and Grounding Component Views

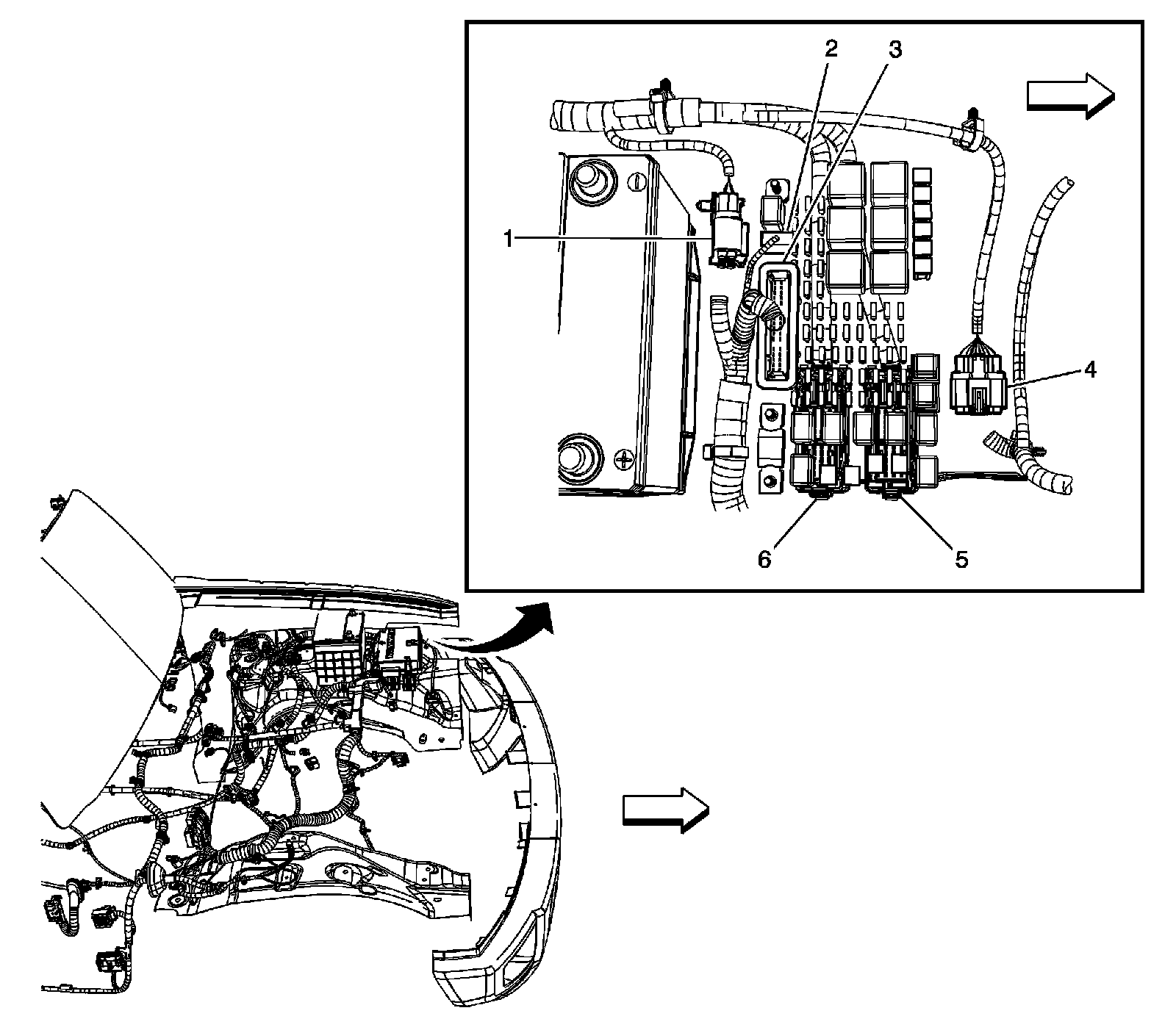

Fuse Block - Underhood Connectors




1 - C125 Body Harness to Engine Harness (Transfer Case)
2 - Fuse Block - Underhood C4 (Engine Harness)
3 - Fuse Block - Underhood C3 (Engine Harness)
4 - C115 Forward Lamp Harness to Body Harness
5 - Fuse Block - Underhood C1 (Body Harness)
6 - Fuse Block - Underhood C2 (Body Harness)
