Engine Controls Diagram 1

Engine Controls Schematics

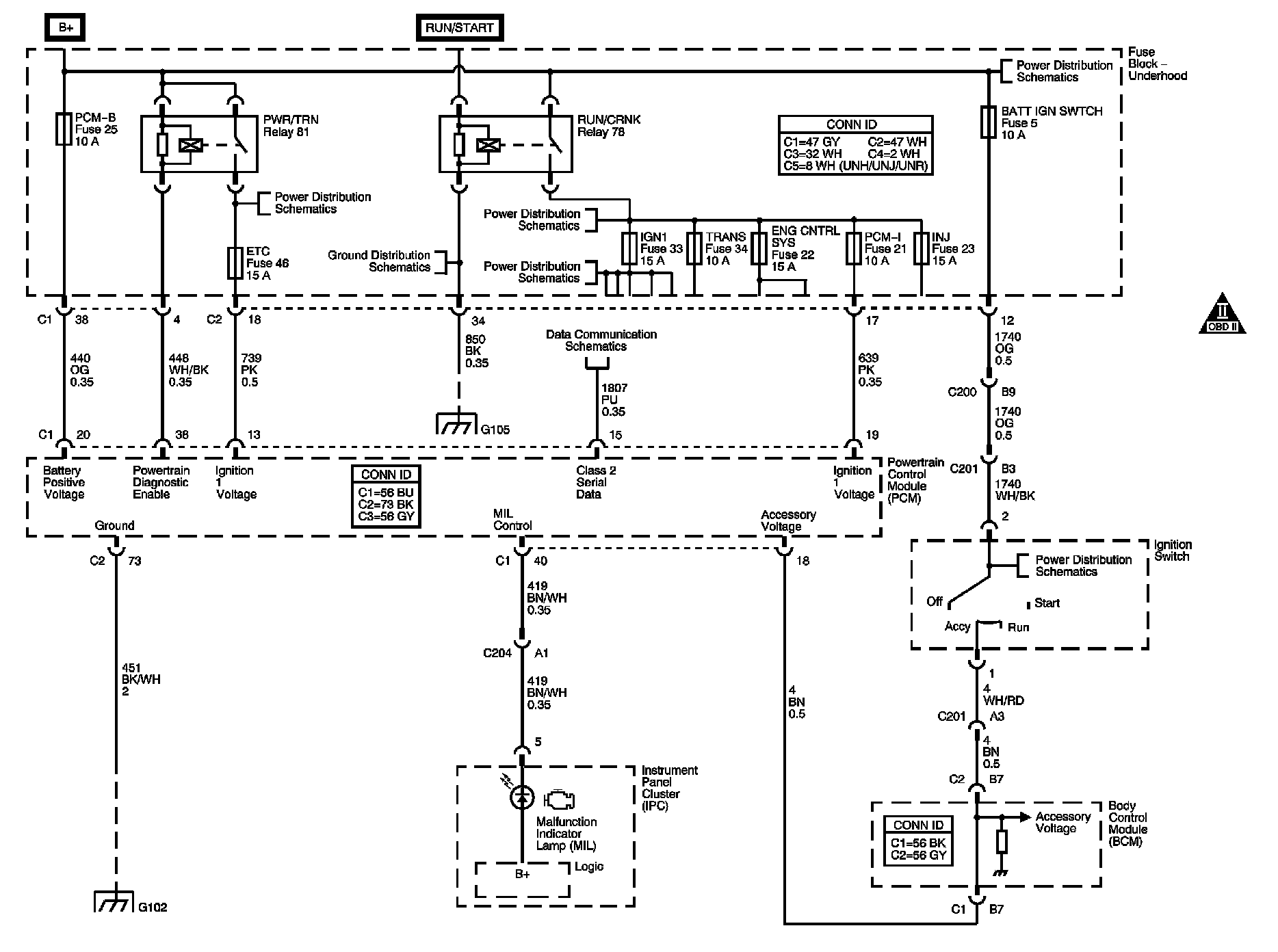

Module Power, Ground, Serial Data, MIL, and DLC

Engine Controls Diagram 1:

Next Diagram: Engine Controls Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
