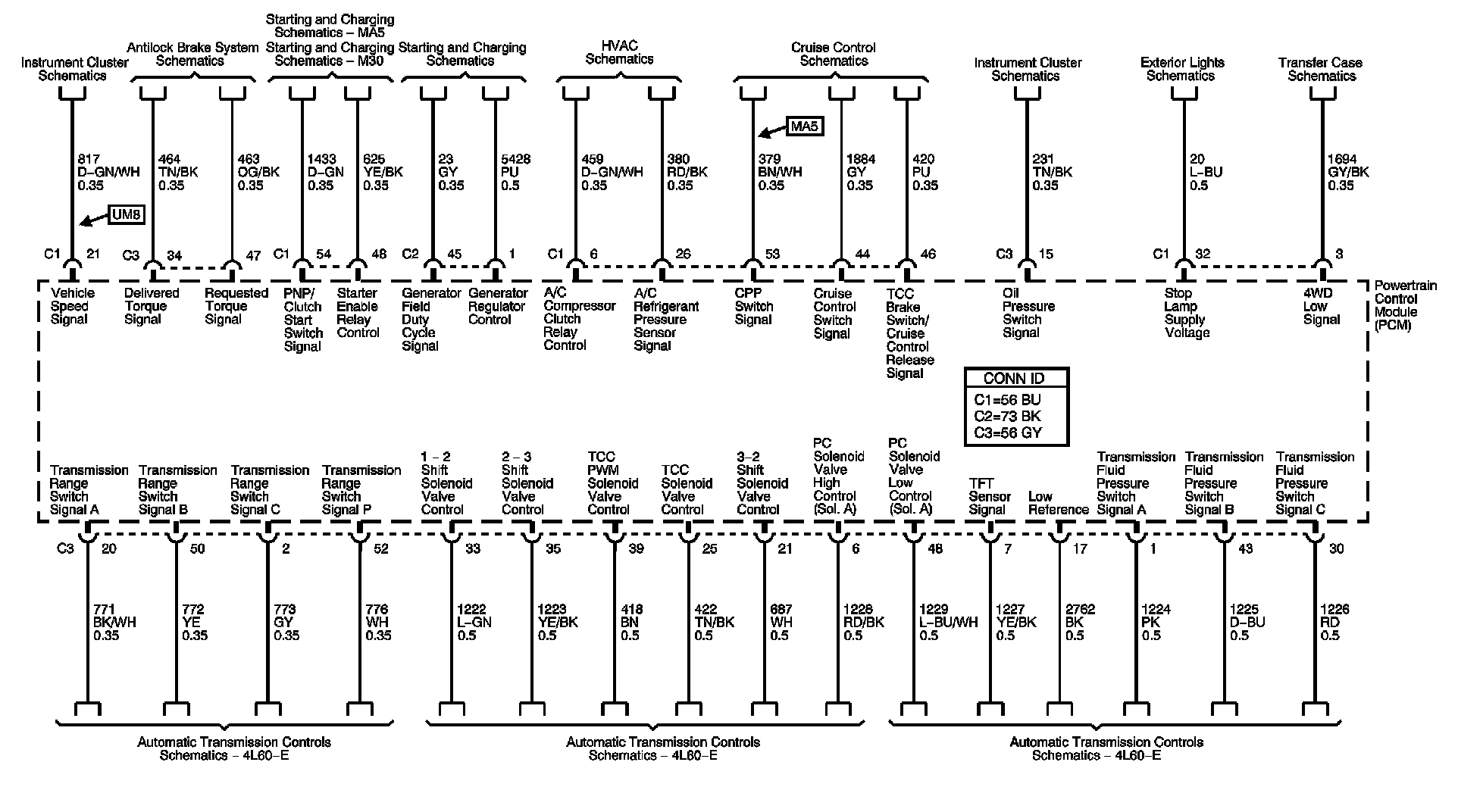

Engine Controls Diagram 11

Engine Controls Schematics

Controlled/Monitored Subsystem and Transmission References

Engine Controls Diagram 11:

Previous Diagram: Engine Controls Diagram 10

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
