Connector Views

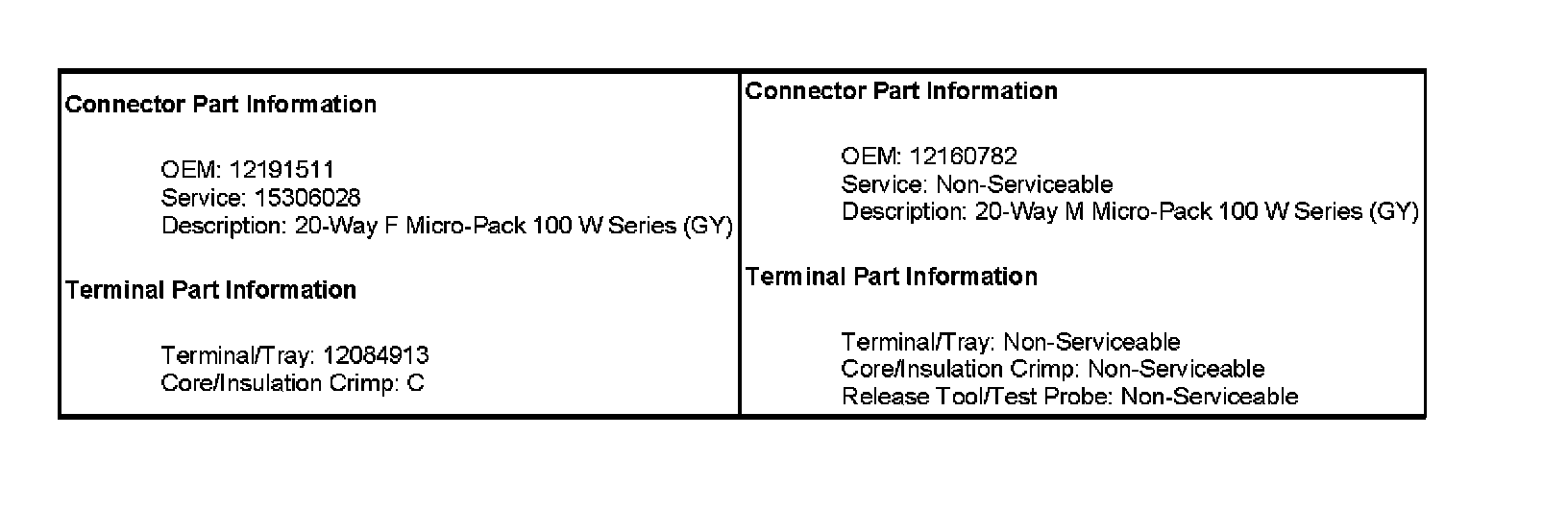

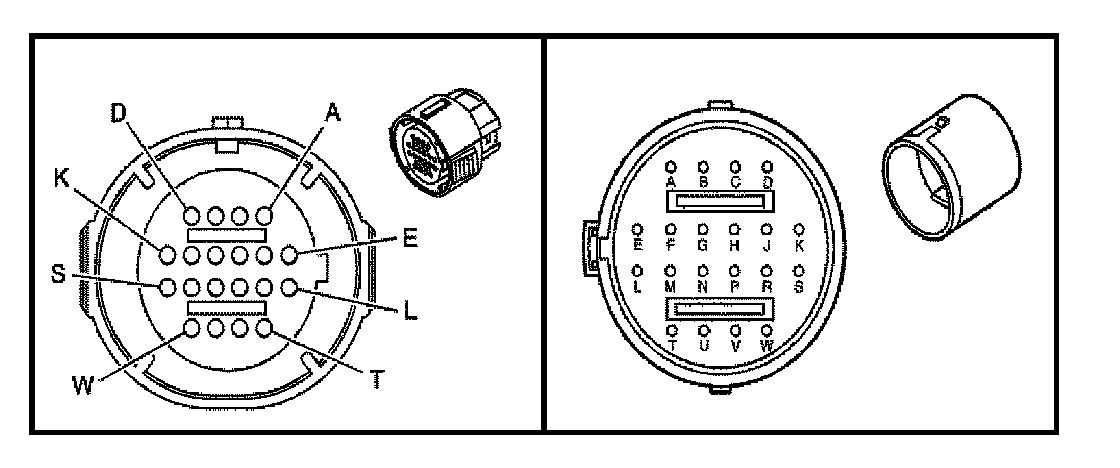

Automatic Transmission Inline 20-Way Connector End View

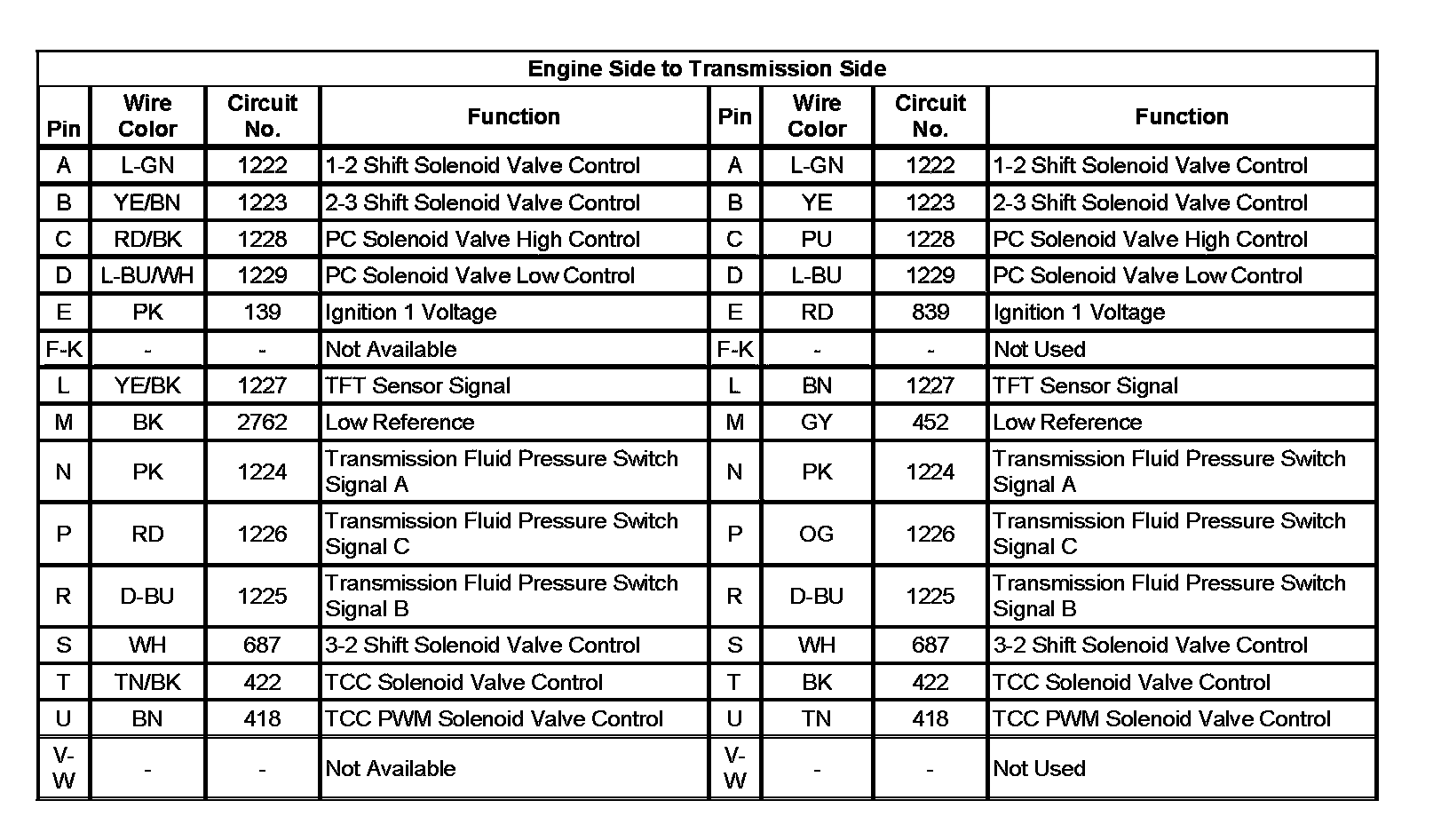

Engine Side to Transmission Side







Engine Side to Transmission Side:
