Scan Tool Data List

Scan Tool Data List

Use the scan tool data list under the following conditions:

* The Diagnostic System Check - Vehicle is complete.
* The on-board diagnostics are functioning properly.
* No DTCs are present.

The values below represent a typical display recorded from a properly functioning system.

Important: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.

Only the parameters listed below are used in this manual for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.

Scan tool values below were recorded under the following conditions:

* Engine at idle
* Upper radiator hose hot
* Closed throttle
* Transmission in PARK
* Closed Loop operation
* Accessories OFF
* Brake pedal not applied

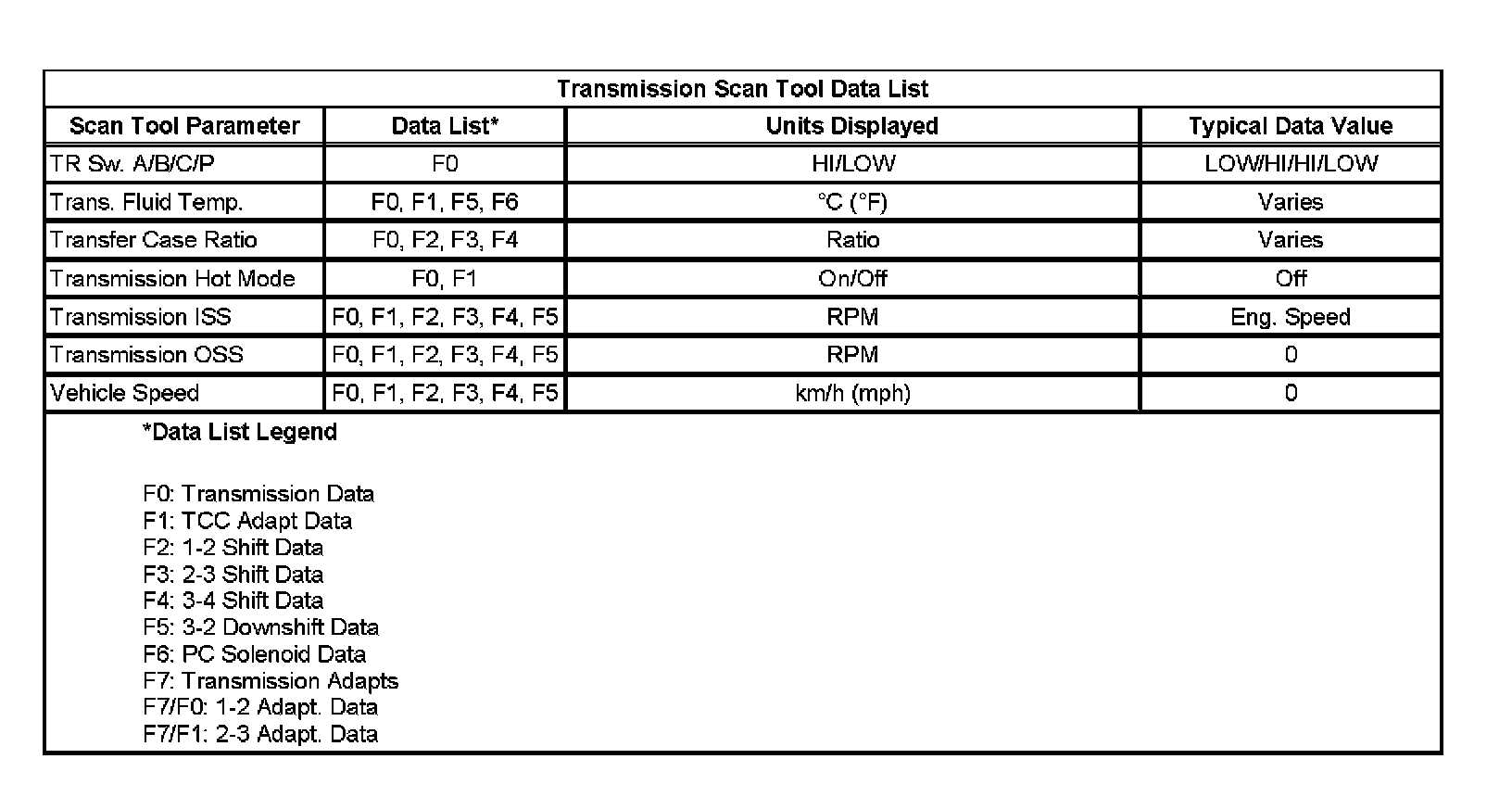

Transmission Scan Tool Data List (Part 1):

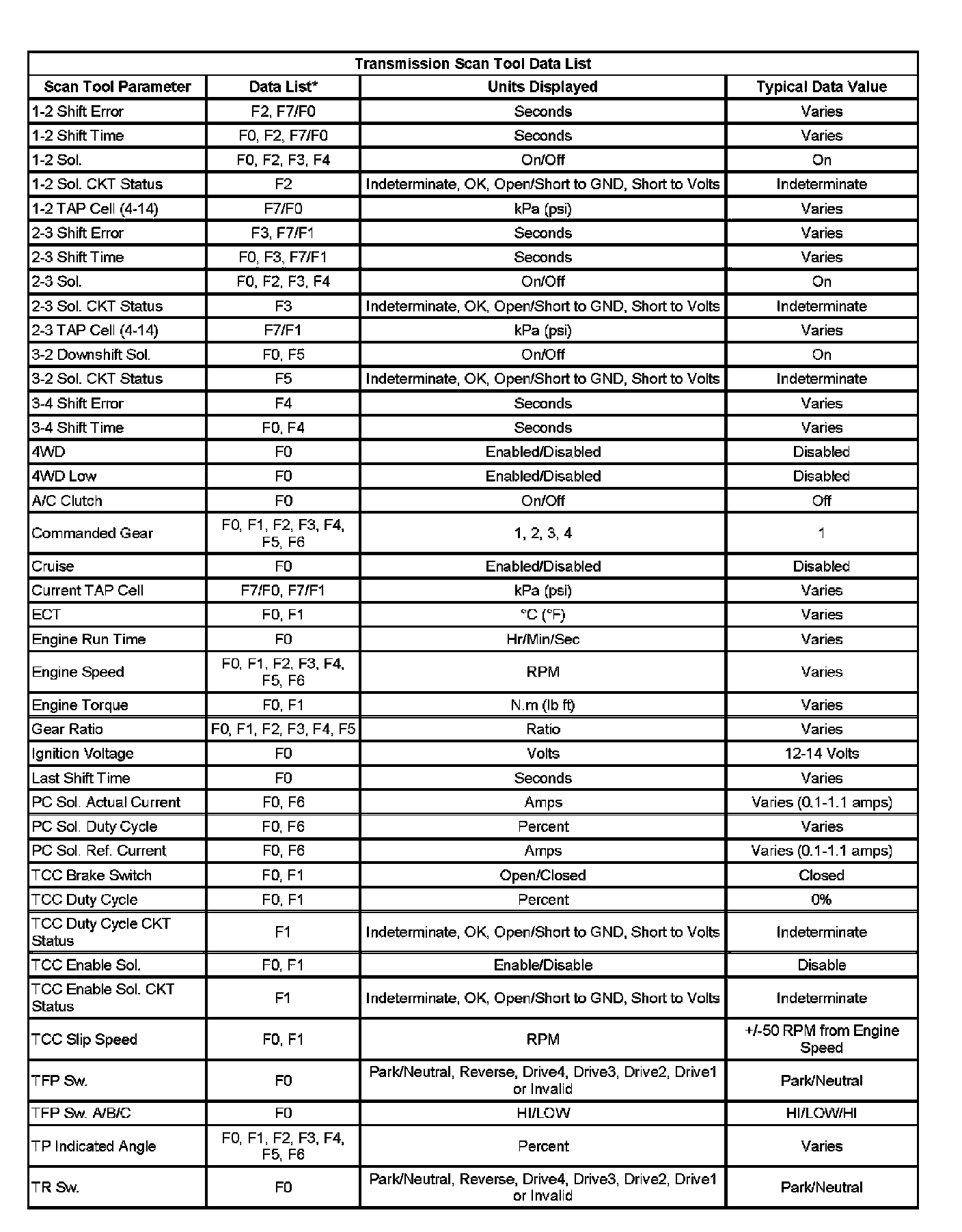

Transmission Scan Tool Data List (Part 2):
