Engine Mechanical Specifications



Engine Mechanical Specifications

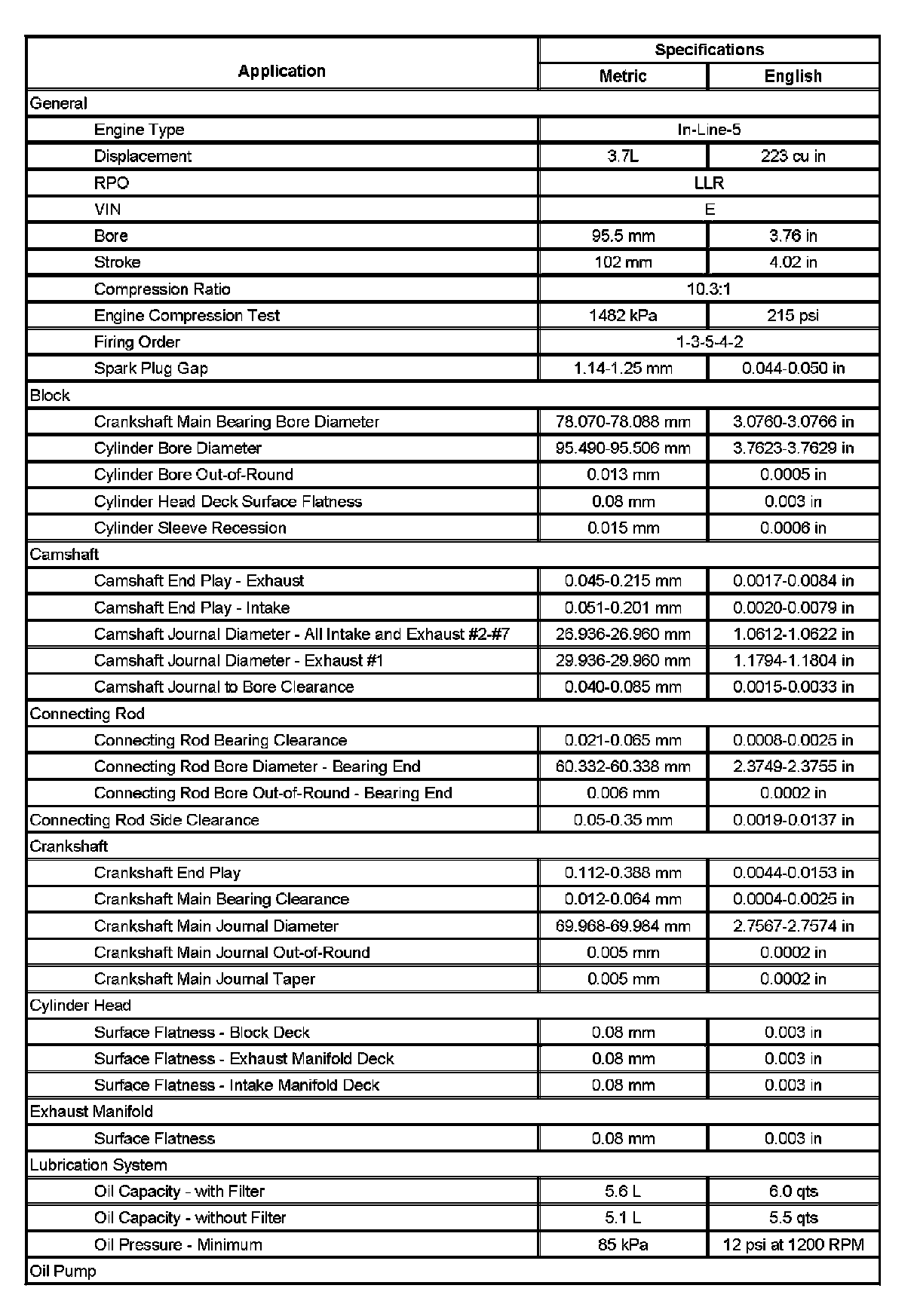

Engine Mechanical Specifications (Part 1):

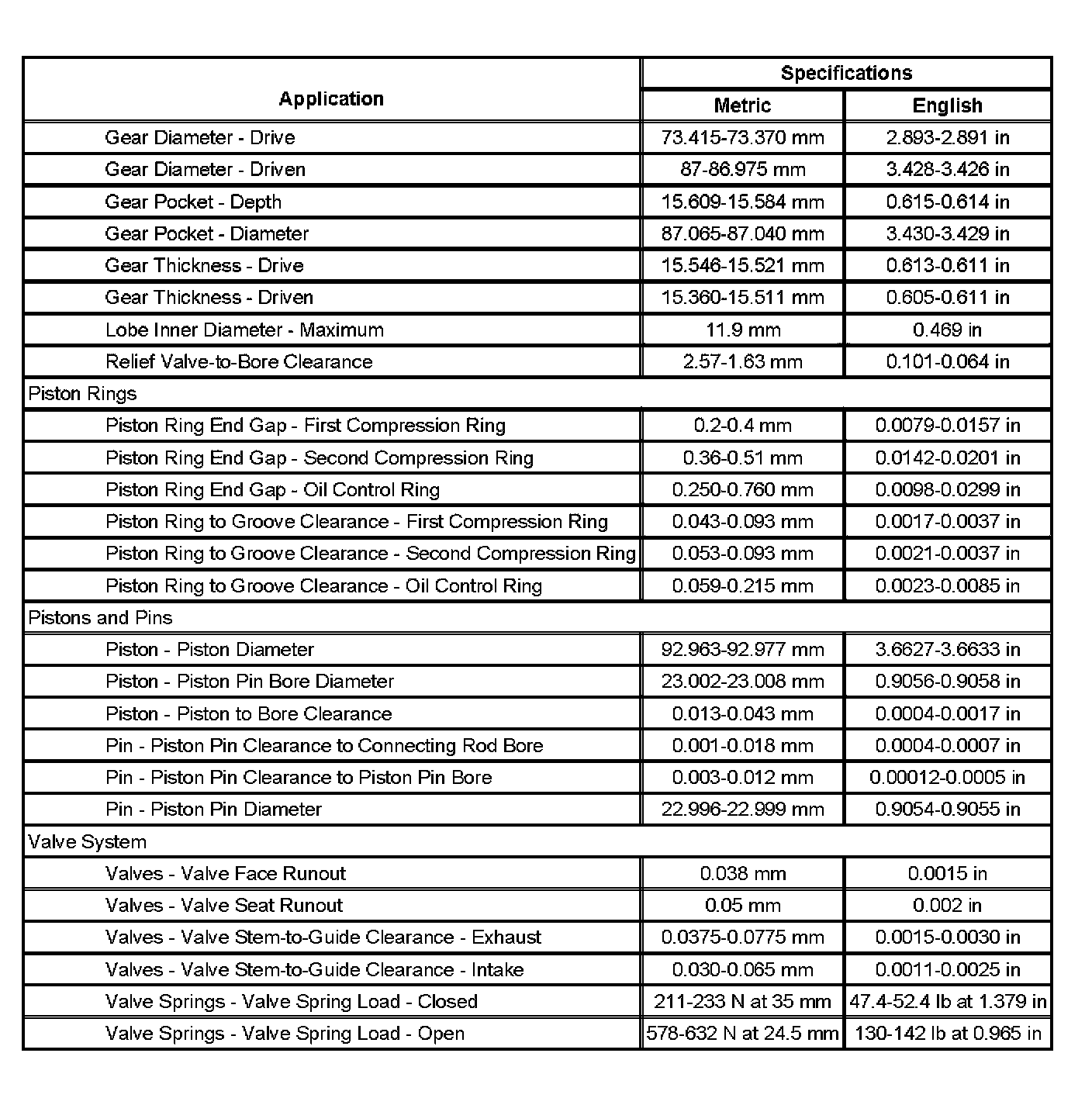

Engine Mechanical Specifications (Part 2):
